TRANSMISSION

TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)

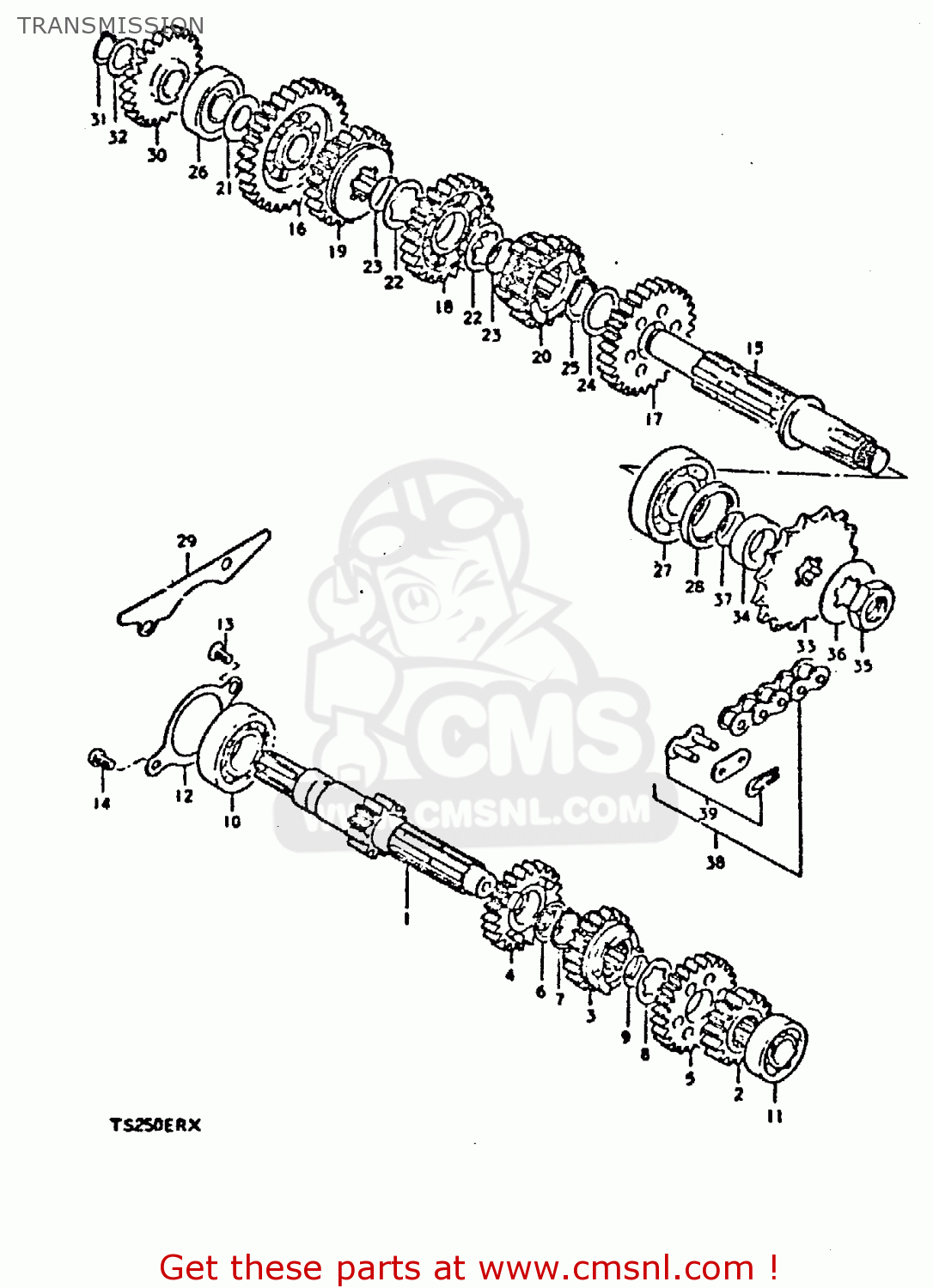

Transmission diagram TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)

TRANSMISSION TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)
TRANSMISSION TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)
TRANSMISSION TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)
prices are in EUR
ref
part #
description
quantity
1
2412130010
ref: 1
SHAFT,COUNTER
€ 0.00
2
2422130000
ref: 2
GEAR,SECOND DRIVE
2422130000
€ 29.00
3
2423130100
ref: 3
GEAR,THIRD DRIVE
2423130100
€ 68.00
4
2424130000
ref: 4
GEAR,FOURTH DRIVE
2424130000
€ 52.00
5
2425130100
ref: 5
GEAR,FIFTH DRIVE
€ 65.50
6
0821122281
ref: 6
SHIM
0821122281
€ 4.00
7
0833111229
ref: 7
CIRCLIP
0833111229
€ 2.00
8
0916722007
ref: 8
WASHER,LOCK
0916722007
€ 3.50
9
0938022003
ref: 9
CIRCLIP
0938022003
€ 13.50
10
0814362057
ref: 10
BEARING
0814362057
€ 24.50
11
0926217008
ref: 11
BEARING
0926217008
€ 14.00
12
2474130100
ref: 12
PLATE,COUNTERSHAFT BEARING
2474130100
€ 6.50
13
0212206128
ref: 13
SCREW
0212206128
€ 3.00
14
0211206128
ref: 14
SCREW 6X12
0211206128
€ 2.00
15
2413130500
ref: 15
SHAFT,DRIVE
2413130500
€ 123.50
16
2431030010
ref: 16
GEAR,FIRST DRIVEN
€ 0.00
17
2432130000
ref: 17
GEAR,SECOND DRIVEN
2432130000
€ 47.00
18
2433130100
ref: 18
GEAR,THIRD DRIVEN
2433130100
€ 41.50
19
2434130001
ref: 19
GEAR,FOURTH DRIVEN
2434130001
€ 50.00
20
2435130101
ref: 20
GEAR,5TH DRIVEN
2435130101
€ 87.50
21
0821117301
ref: 21
WASHER,THRUST
0821117301
€ 3.00
22
0916725012
ref: 22
WASHER,LOCK
0916725012
€ 3.50
23
0938025006
ref: 23
RING,SNAP
0938025006
€ 2.00
24
0821125321
ref: 24
WASHER
0821125321
€ 3.00
25
0938025010
ref: 25
CIRCLIP
0938025010
€ 3.00
26
0814362037
ref: 26
BEARING
0814362037
€ 18.50
27
0926222006
ref: 27
BEARING
0926222006
€ 63.50
28
0928332003
ref: 28
SEAL,OIL(32X42X6)
0928332003
€ 3.50
29
2487130000
ref: 29
PLATE,OIL RESERVOIR
2487130000
€ 4.00
30
2626030002
ref: 30
GEAR,KICK STARTER IDLE
2626030002
€ 46.00
31
0938017001
ref: 31
CIRCLIP
0938017001
€ 2.00
32
0821117241
ref: 32
WASHER
0821117241
€ 2.00
33-1
2751130710
ref: 33-1
E2, E4, E16, E18, E2
SPROCKET,ENGINE
2751130710
€ 22.50
33-2
NOTUSED
ref: 33-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
33-3
2751130700
ref: 33-3
OPT
SPROCKET,ENGINE
2751130700
€ 22.00
34
0918022007
ref: 34
SPACER(22X32X11.5)
0918022007
€ 10.00
35
0914018006
ref: 35
NUT
0914018006
€ 4.50
36
0916722012
ref: 36
WASHER,LOCK
0916722012
€ 1.50
37
0928022003
ref: 37
O RING(D:1.7,ID:22)
0928022003
€ 2.50
38
2760016410
ref: 38
525*104L
CHAIN,DRIVE #525TR-10
2760016410
€ 55.00
39
2762030110
ref: 39
JOINT ASSEMBLY,CHAIN
€ 0.00
