CLUTCH

TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)

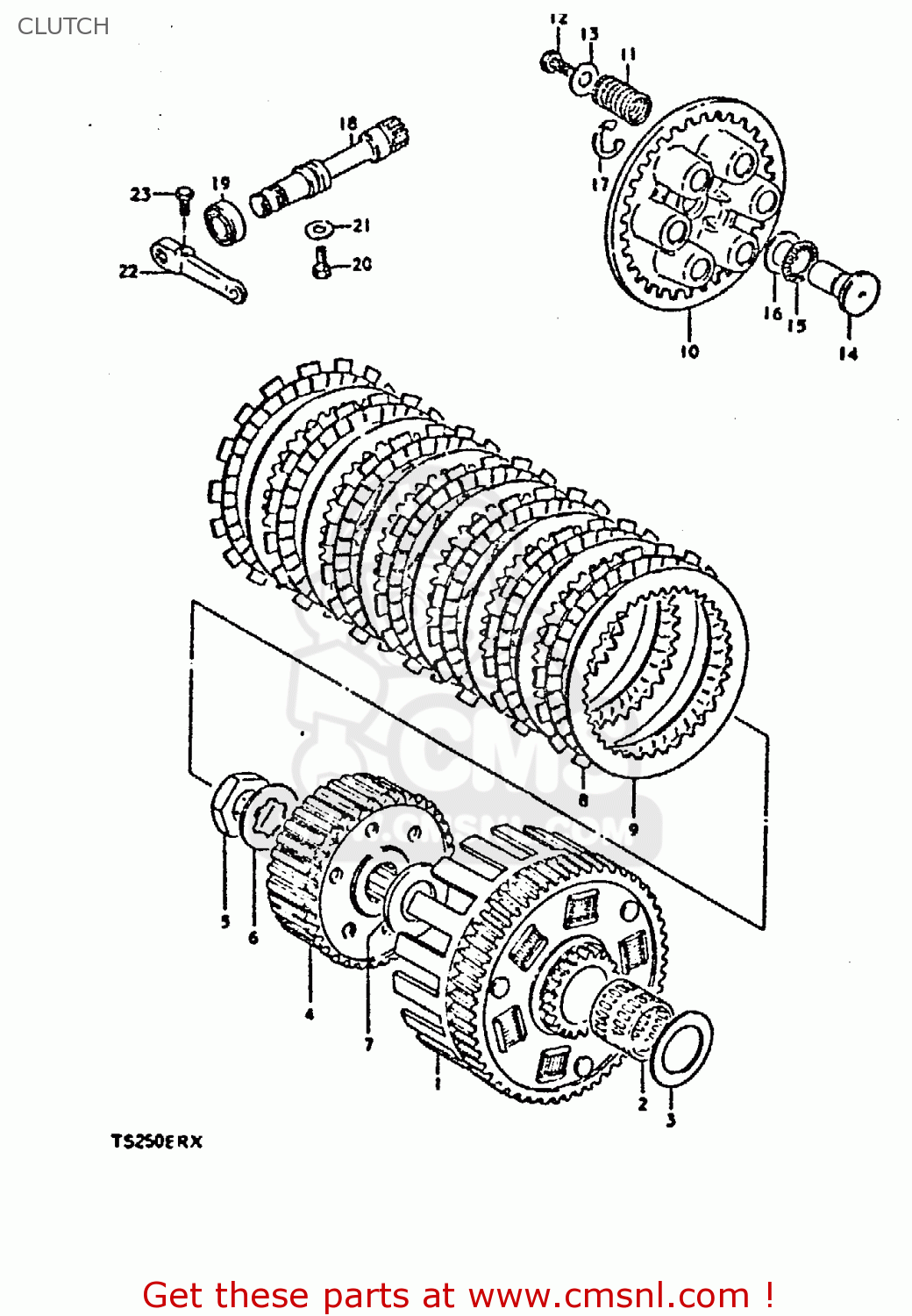

Clutch diagram TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)

CLUTCH TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)
CLUTCH TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)
CLUTCH TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)
prices are in EUR
ref
part #
description
quantity
1
2120030003
ref: 1
NT:67/18
GEAR ASSEMBLY,PRIMARY DRIVE
2120030003
€ 279.50
2
0926325014
ref: 2
ROLLER BEARING (25X30X3
0926325014
€ 18.50
3
0916025009
ref: 3
WASHER(25X41X3)
0916025009
€ 5.00
4
2141130001
ref: 4
HUB,CLUTCH SLEEVE
€ 55.50
5
0914020002
ref: 5
NUT (20MM)
0914020002
€ 3.50
6
0916720006
ref: 6
WASHER,LOCK
0916720006
€ 3.00
7
0916020015
ref: 7
WASHER(20X44X3)
0916020015
€ 4.50
8
2144116500
ref: 8
PLATE,CLUTCH DRIVE (MCA)
2144116500
€ 11.50
9
2145131000
ref: 9
PLATE,CLUTCH DRIVEN(T:2.0) (NAS)
2145131000
€ 9.00
10
2146216500
ref: 10
DISC,CLUTCH PRESSURE
2146216500
€ 51.00
11
0944019004
ref: 11
SPRING
0944019004
€ 3.00
12
0110709168
ref: 12
BOLT
€ 0.00
13
0016006020
ref: 13
0016006020
14
2316516501
ref: 14
RACK,CLUTCH RELEASE
2316516501
€ 23.00
15
0926315003
ref: 15
BEARING(15X28X2)
0926315003
€ 7.00
16
0916015015
ref: 16
WASHER
€ 4.00
17
0833211128
ref: 17
E RING 12MM
0833211128
€ 2.00
18
2326116500
ref: 18
PINION,CLUTCH RELEASE
2326116500
€ 40.50
19
0928512002
ref: 19
OIL SEAL
0928512002
€ 7.00
20
0913506009
ref: 20
BOLT(6X12)
0913506009
€ 2.00
21
0832221068
ref: 21
WASHER
0832221068
€ 2.00
22
2327130500
ref: 22
ARM,CLUTCH RELEASE
2327130500
€ 31.50
23
0110706208
ref: 23
BOLT
0110706208
€ 2.00
