STEERING STEM

TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)

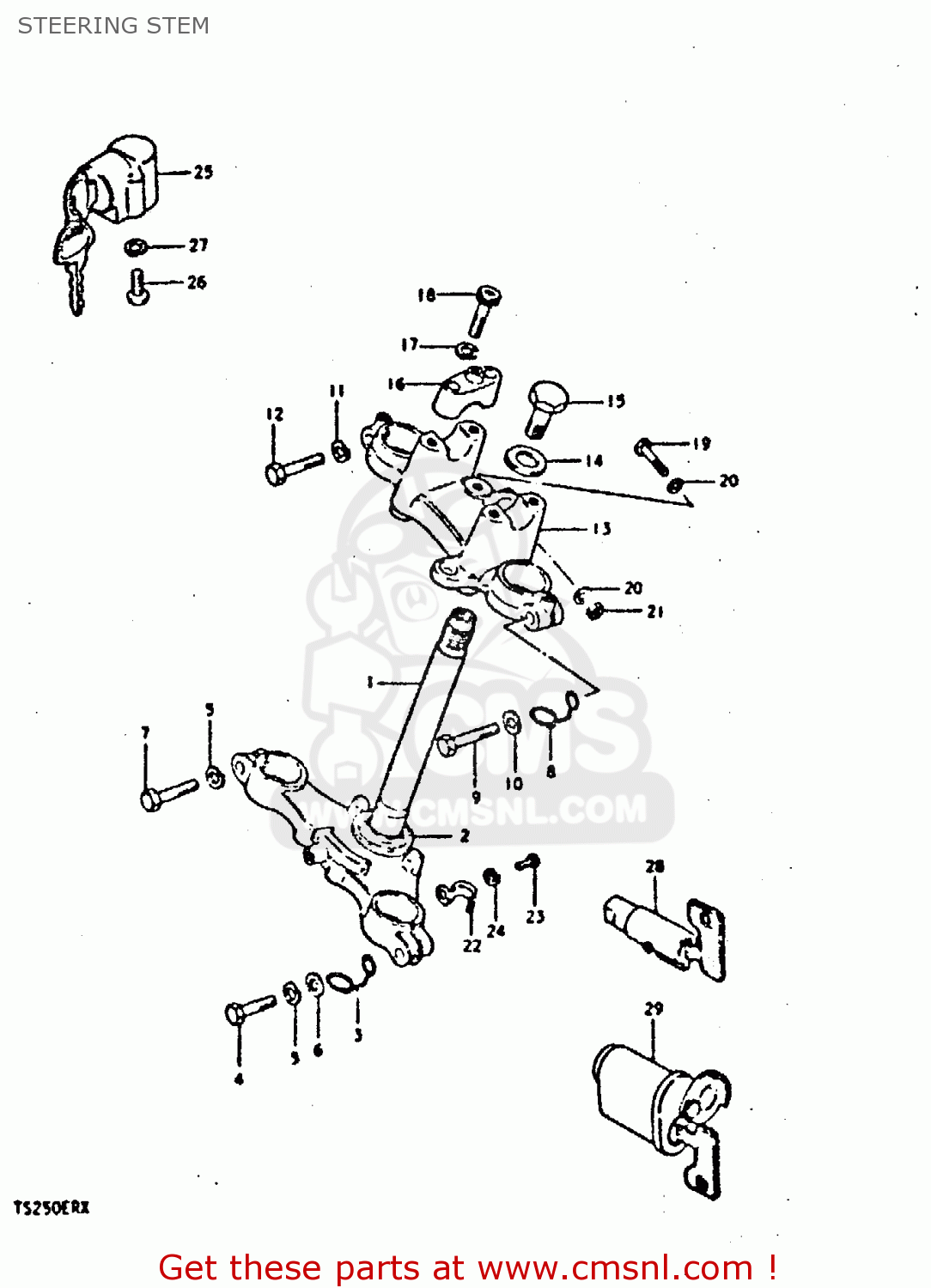

Steering stem diagram TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)

STEERING STEM TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)
STEERING STEM TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)
STEERING STEM TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)
prices are in EUR
ref
part #
description
quantity
1-1
514103090108C
ref: 1-1
STEM,STEERING
€ 133.50
1-2
NOTUSED
ref: 1-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-3
NOTUSED
ref: 1-3
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
2
5162133001
ref: 2
RACE,STEERING OUTER LWR
5162133001
€ 10.00
3
5145530540
ref: 3
CLIP
5145530540
€ 5.50
4
0110712458
ref: 4
BOLT 12X45
0110712458
€ 5.50
5
0832121128
ref: 5
WASHER,LOCK 12
0832121128
€ 2.50
6
0832211128
ref: 6
WASHER
0832211128
€ 2.00
7
0110412408
ref: 7
BOLT
€ 3.00
8
5145530900
ref: 8
GUIDE,CABLE
€ 0.00
9
0110710408
ref: 9
BOLT 10X40
0110710408
€ 3.00
10
0832211108
ref: 10
WASHER
€ 2.50
11
0832121108
ref: 11
LOCK WASHER
0832121108
€ 2.00
12
0110710408
ref: 12
BOLT 10X40
0110710408
€ 3.00
13
513113090008C
ref: 13
HEAD,STEERING STEM
€ 110.50
14
5135641310
ref: 14
WASHER
5135641310
€ 6.00
15
5135130540
ref: 15
BOLT,STEERING STEM HEAD
5135130540
€ 5.00
16
5621129900
ref: 16
CLAMP,HANDLE HOLDER UPR
€ 9.00
17
0832121088
ref: 17
LOCK WASHER
0832121088
€ 2.00
18
0910608004
ref: 18
BOLT 8X35
€ 4.00
19
0110708558
ref: 19
BOLT 8X55
€ 3.00
20
0832221088
ref: 20
WASHER
0832221088
€ 2.00
21
0831012088
ref: 21
NUT
0831012088
€ 2.00
22
5145305110
ref: 22
CLIP,BRAKE CABLE
5145305110
€ 4.50
23
0211206108
ref: 23
SCREW
0211206108
€ 1.50
24
0832121068
ref: 24
LOCK WASHER
0832121068
€ 2.50
25
5191025310
ref: 25
LOCK ASSEMBLY,STEERING
€ 22.50
26
0211205128
ref: 26
SCREW
€ 2.50
27
0832121058
ref: 27
LOCK WASHER
0832121058
€ 2.00
28
NOTUSED
ref: 28
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
29
NOTUSED
ref: 29
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
