RIGHT HANDLE SWITCH

TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)

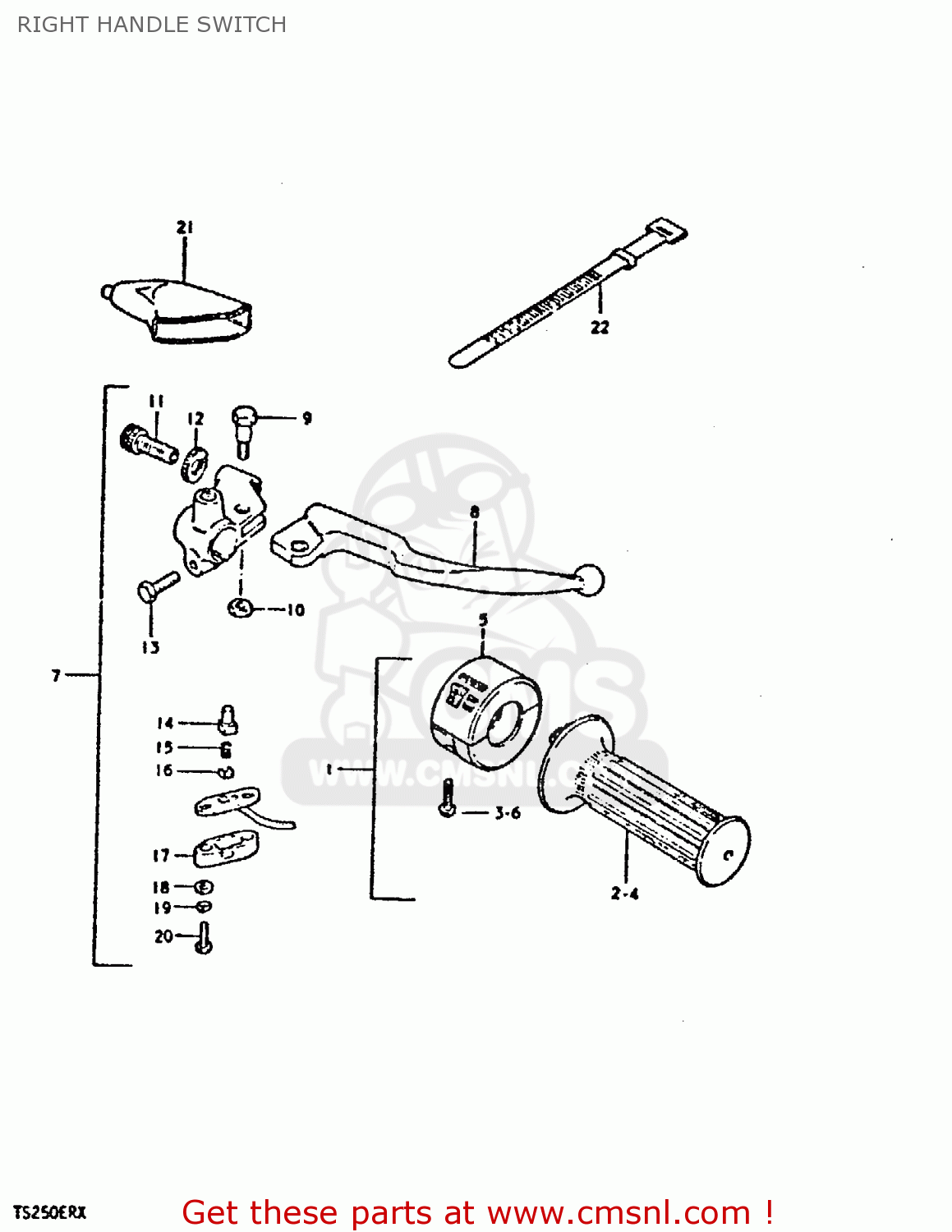

Right handle switch diagram TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)

RIGHT HANDLE SWITCH TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)
RIGHT HANDLE SWITCH TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)
RIGHT HANDLE SWITCH TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)
prices are in EUR
ref
part #
description
quantity
1
5710030900
ref: 1
MODEL T
CASE ASSEMBLY,THROTTLE
€ 45.00
2
5711030900
ref: 2
MODEL T
GRIP,THROTTLE
5711030900
€ 20.50
3
0211205258
ref: 3
MODEL T
SCREW
0211205258
€ 2.00
4
5711030900
ref: 4
MODEL X
GRIP,THROTTLE
5711030900
€ 20.50
5
5710030930
ref: 5
MODEL X
CASE ASSEMBLY,THROTTLE
€ 45.00
6
0211205258
ref: 6
MODEL X
SCREW
0211205258
€ 2.00
7
5730037100
ref: 7
LEVER/SWITCH ASSEMBLY,BRAKE
5730037100
€ 40.50
8
5742026500
ref: 8
LEVER,BRAKE
5742026500
€ 29.00
9
5743111011
ref: 9
BOLT,LEVER
5743111011
€ 6.00
10
0831921068
ref: 10
NUT 6MM
0831921068
€ 2.00
11
5744111010
ref: 11
ADJUSTER,CABLE
5744111010
€ 8.00
12
5744211010
ref: 12
NUT,CABLE ADJUSTER
5744211010
€ 4.00
13
0110706208
ref: 13
BOLT
0110706208
€ 2.00
14
NOTUSED
ref: 14
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
15
NOTUSED
ref: 15
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
16
NOTUSED
ref: 16
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
17
NOTUSED
ref: 17
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
18
NOTUSED
ref: 18
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
19
NOTUSED
ref: 19
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
20
NOTUSED
ref: 20
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
21
5734140001
ref: 21
COVER,CLUTCH LEVER
5734140001
€ 7.50
22
0940712402
ref: 22
CLAMP(L:120)
0940712402
€ 3.00
