FRAME COVER (TS250ERT)

TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)

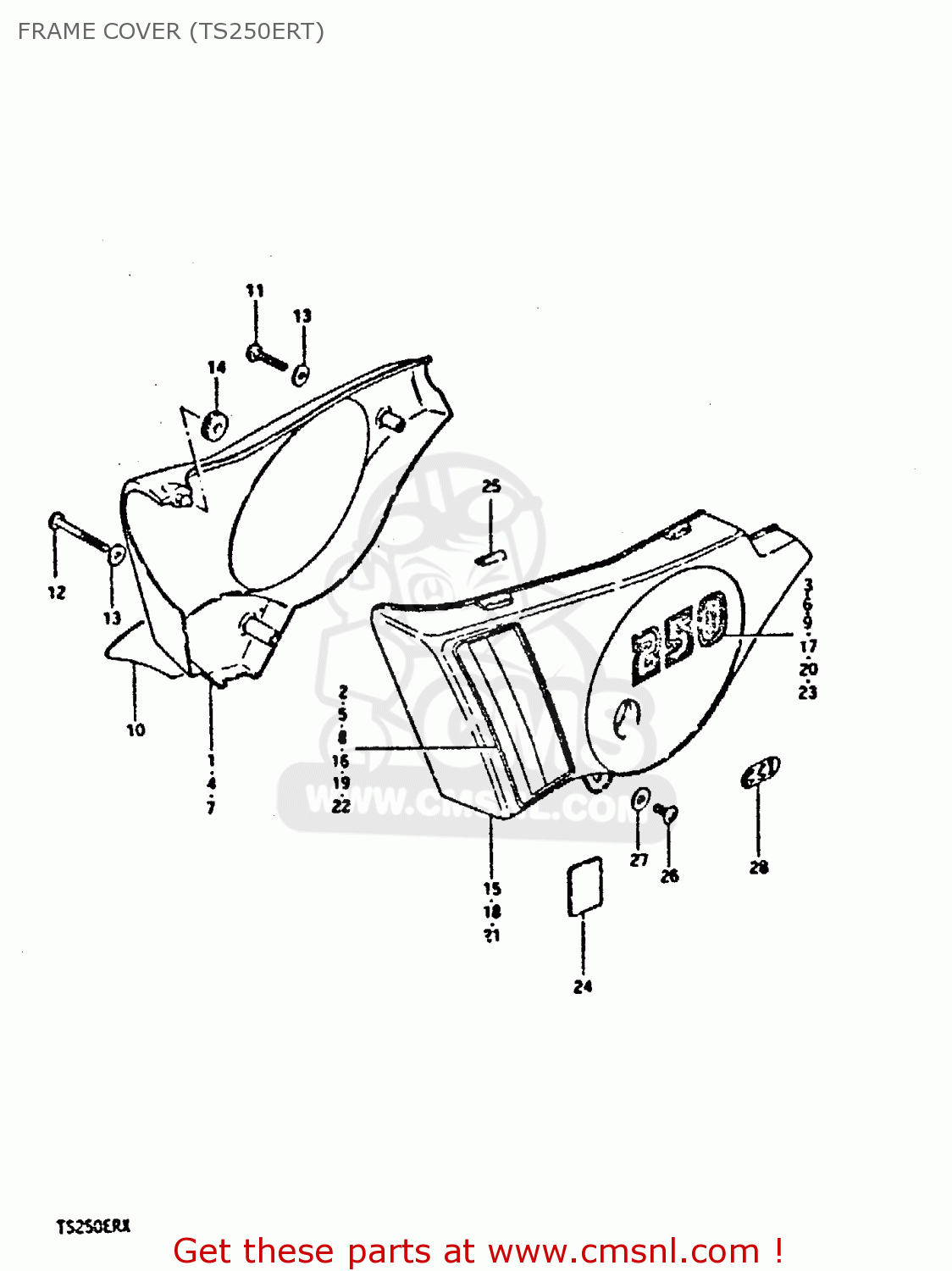

Frame cover (ts250ert) diagram TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)

FRAME COVER (TS250ERT) TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)
FRAME COVER (TS250ERT) TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)
FRAME COVER (TS250ERT) TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)
prices are in EUR
ref
part #
description
quantity
1
471113090107P
ref: 1
COVER, FRAME RH (RED)
€ 76.50
2
681363090069F
ref: 2
TAPE, RH
€ 15.00
3
6813130900064
ref: 3
EMBLEM
€ 7.00
4
4711130901163
ref: 4
COVER, FRAME RH (YELLOW)
€ 76.50
5
681363090067H
ref: 5
TAPE, RH
€ 12.00
6
6813130900019
ref: 6
EMBLEM
€ 7.00
7
4711130901189
ref: 7
COVER, FRAME RH (WHITE)
€ 76.50
8
681363090067H
ref: 8
TAPE, RH
€ 12.00
9
6813130900019
ref: 9
EMBLEM
€ 7.00
10
6813130910
ref: 10
EMBLEM,FRAME COVER,RIGHT
€ 0.00
11
0214206258
ref: 11
SCREW
€ 3.00
12
0214206458
ref: 12
SCREW
0214206458
€ 2.00
13
0916006007
ref: 13
WASHER
0916006007
€ 2.00
14
0932008018
ref: 14
CUSHION
0932008018
€ 4.00
15
472113090107P
ref: 15
COVER, FRAME LH (RED)
€ 40.50
16
681463090069F
ref: 16
TAPE, LH
681463090069F
€ 14.00
17
6813130900064
ref: 17
EMBLEM
€ 7.00
18
4721130901163
ref: 18
COVER, FRAME LH (YELLOW)
€ 40.50
19
681463090067H
ref: 19
TAPE, LH
€ 0.00
20
6813130900019
ref: 20
EMBLEM
€ 7.00
21
4721130901189
ref: 21
COVER, FRAME LH
€ 40.50
22
681463090067H
ref: 22
TAPE, LH
€ 0.00
23
6813130900019
ref: 23
EMBLEM
€ 7.00
24
3365137000
ref: 24
PROTECTOR(170X95X3.0)
3365137000
€ 5.00
25
4711745000
ref: 25
CUSHION,FRAME COVER
4711745000
€ 1.50
26
0214206127
ref: 26
SCREW 6X12
0214206127
€ 1.50
27
0916006007
ref: 27
WASHER
0916006007
€ 2.00
28
6817126000
ref: 28
EMBLEM,CCIS
6817126000
€ 4.00
