FRONT WHEEL

TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)

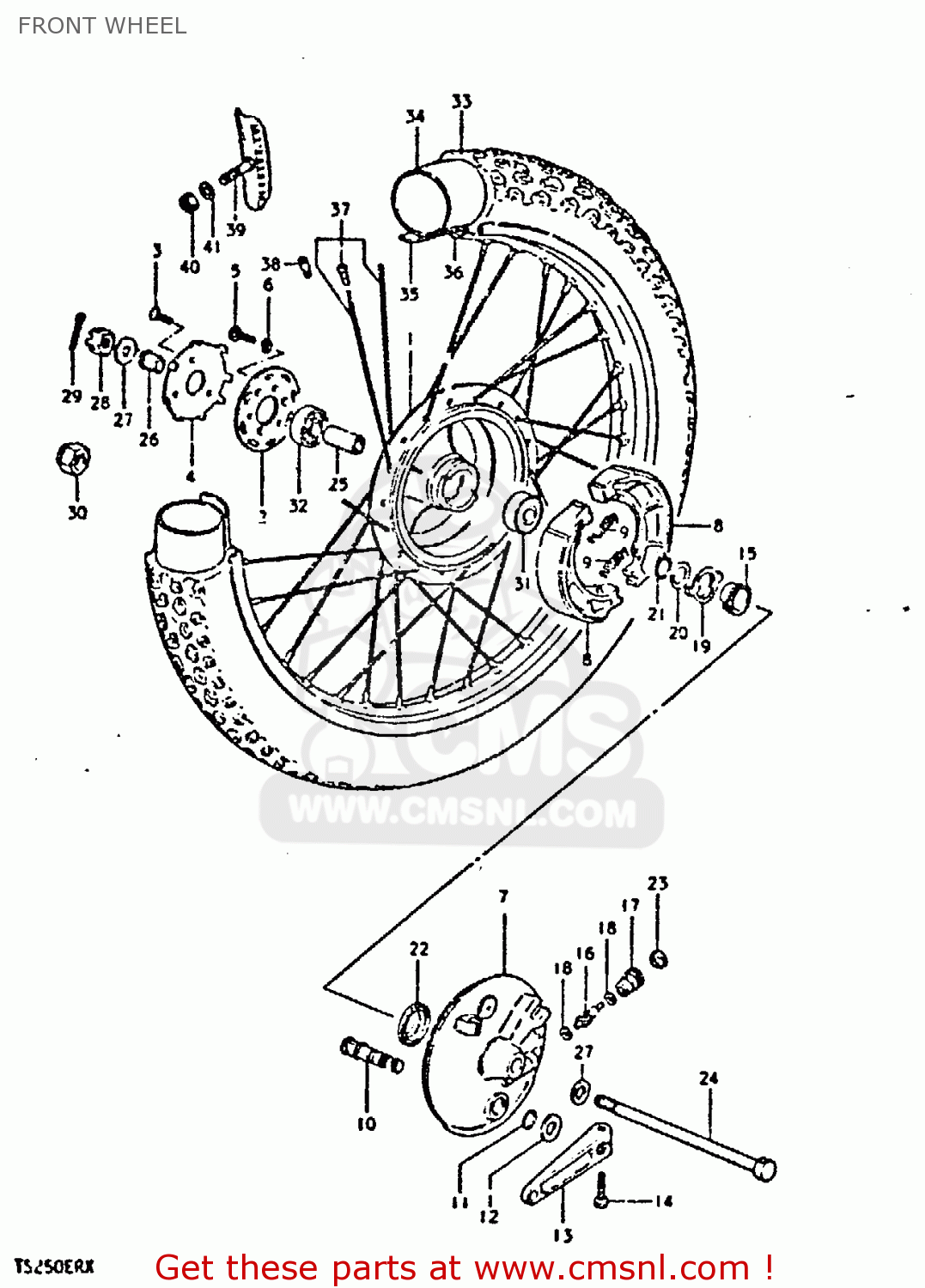

Front wheel diagram TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)

FRONT WHEEL TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)
FRONT WHEEL TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)
FRONT WHEEL TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)
prices are in EUR
ref
part #
description
quantity
1
5411030500
ref: 1
DRUM,FRONT HUB
€ 0.00
2
5411230500
ref: 2
FLANGE,FR HUB,R
5411230500
€ 17.00
3
0212206168
ref: 3
SCREW
0212206168
€ 2.00
4
5415130500
ref: 4
RETAINER,FR HUB BEARING,R
5415130500
€ 7.00
5
0110706168
ref: 5
BOLT, UPPER
€ 3.00
6
0832121068
ref: 6
LOCK WASHER
0832121068
€ 2.50
7
5421032421
ref: 7
PANEL,FRONT HUB
€ 51.00
8
5441032400
ref: 8
SHOE,BRAKE (MCA)
5441032400
€ 35.00
9
5542041100
ref: 9
SPRING
5542041100
€ 5.50
10
5444032402
ref: 10
CAM,FRONT BRAKE
5444032402
€ 15.00
11
0928015001
ref: 11
O-RING,BOSS
0928015001
€ 2.00
12
0916015001
ref: 12
WASHER (15X24X1.6)
0916015001
€ 2.50
13
5445132400
ref: 13
LEVER,FRONT BRAKE CAM
5445132400
€ 48.00
14
0110706258
ref: 14
BOLT
€ 2.00
15
5461130301
ref: 15
GEAR,SPEEDOMETER
5461130301
€ 24.50
16
5462130300
ref: 16
PINION,SPEEDOMETER
5462130300
€ 13.00
17
5463211020
ref: 17
BUSHING,SPEEDOMETER PINION
€ 6.50
18
0916005001
ref: 18
WASHER (5.1X9X0.4)
0916005001
€ 2.00
19
5466011031
ref: 19
DRIVER,SPEEDOMETER GEAR
5466011031
€ 31.00
20
0916022001
ref: 20
WASHER(22.5X27X1)
0916022001
€ 2.00
21
0833111229
ref: 21
CIRCLIP
0833111229
€ 2.00
22
0928526003
ref: 22
SEAL,OIL(26X38X4)
0928526003
€ 22.00
23
0928906001
ref: 23
SEAL,OIL(6X10X3)
0928906001
€ 4.00
24
6471143000
ref: 24
AXLE,REAR
6471143000
€ 28.50
25
0918012041
ref: 25
SPACER (12.6X19X52)
0918012041
€ 4.50
26
5474141100
ref: 26
SPACER,FR AXLE,R
5474141100
€ 10.00
27-1
0832221128
ref: 27-1
WASHER
0832221128
€ 2.00
27-2
NOTUSED
ref: 27-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
28
0831441128
ref: 28
NUT, REAR AXLE
0831441128
€ 2.50
29
0411130308
ref: 29
COTTER PIN
0411130308
€ 1.50
30
NOTUSED
ref: 30
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
31
0814362017
ref: 31
BEARING
0814362017
€ 11.50
32
0812362017
ref: 32
BEARING, RH
€ 15.00
33
5510030900
ref: 33
TIRE,FRONT
€ 0.00
34
5520016510
ref: 34
TUBE
5520016510
€ 32.50
35
5526116510
ref: 35
25*21
PROTECTOR,WHEEL,INNER
€ 5.00
36-1
5531130510
ref: 36-1
MODEL T, TO 55311-30
RIM,FRONT WHEEL
5531130510
€ 70.50
36-2
5531130511
ref: 36-2
MODEL X
RIM,FRONT WHEEL
€ 70.50
37
5532030500
ref: 37
SPOKE SET,FR
5532030500
€ 51.50
38
5541130000
ref: 38
BALANCER,WHEEL (50G)
€ 4.50
39
6527028600
ref: 39
STOPPER,BEAD
6527028600
€ 26.50
40
0831012088
ref: 40
NUT
0831012088
€ 2.00
41
0832211088
ref: 41
WASHER
0832211088
€ 2.00
