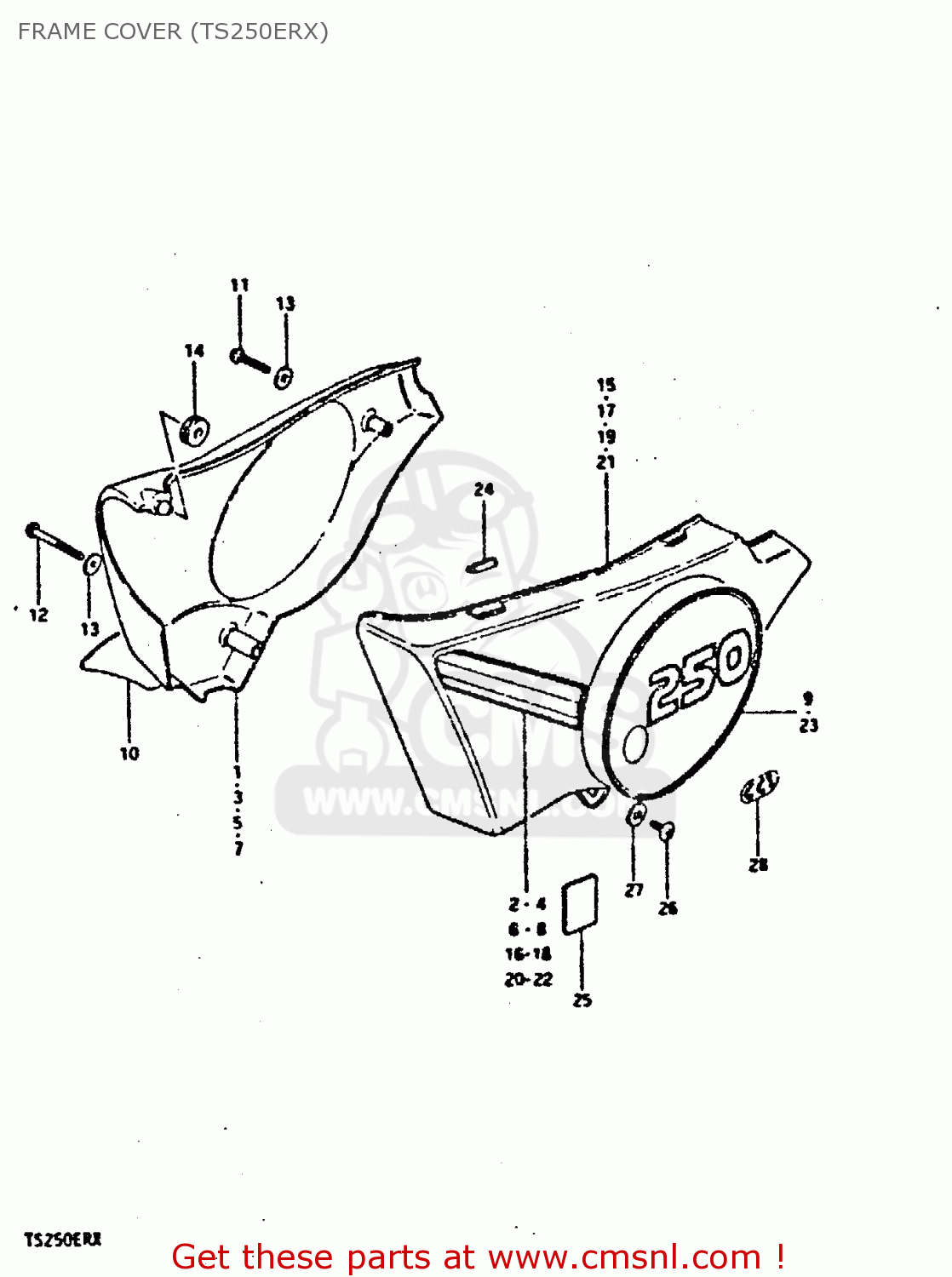

FRAME COVER (TS250ERX)

ref

part #

description

quantity

1

471113090108Y
ref: 1

COVER,FRAME,RIGHT

€ 76.50

2

681363093074U
ref: 2

TAPE, RH

€ 0.00

3

471113090107P
ref: 3

COVER, FRAME RH (RED)

€ 76.50

4

681363093074T
ref: 4

TAPE, RH

€ 11.50

5

4711130901163
ref: 5

COVER, FRAME RH (YELLOW)

€ 76.50

6

681363093067H
ref: 6

TAPE, RH

€ 12.50

7

4711130901189
ref: 7

COVER, FRAME RH (WHITE)

€ 76.50

8

681363093067H
ref: 8

TAPE, RH

€ 12.50

9

6813130400064
ref: 9

EMBLEM, "250" RH (WHITE)

€ 21.00

10

6813130910
ref: 10

EMBLEM,FRAME COVER,RIGHT

€ 0.00

11

0214206258
ref: 11

SCREW

€ 3.00

12

0214206458
ref: 12

SCREW

€ 2.00

13

0816006007
ref: 13

WASHER (6.5*18*1.6)

€ 0.00

14

0932008018
ref: 14

CUSHION

€ 4.00

15

472113090108Y
ref: 15

COVER,FRAME,LEFT

€ 40.50

16

681463093074U
ref: 16

TAPE, LH

€ 0.00

17

472113090107P
ref: 17

COVER, FRAME LH (RED)

€ 40.50

18

681463093074T
ref: 18

TAPE, LH

€ 0.00

19

4721130901163
ref: 19

COVER, FRAME LH (YELLOW)

€ 40.50

20

681463093067H
ref: 20

TAPE, LH

€ 11.50

21

4721130901189
ref: 21

COVER, FRAME LH

€ 40.50

22

681463093067H
ref: 22

TAPE, LH

€ 11.50

23

6814130400064
ref: 23

EMBLEM, "250" LH (WHITE)

€ 9.00

24

4711745000
ref: 24

CUSHION,FRAME COVER

€ 1.50

25

3365137000
ref: 25

PROTECTOR(170X95X3.0)

€ 5.00

26

0214206128
ref: 26

SCREW

€ 1.50

27

0916006007
ref: 27

WASHER

€ 2.00

28

6817126000
ref: 28

EMBLEM,CCIS

€ 4.00
