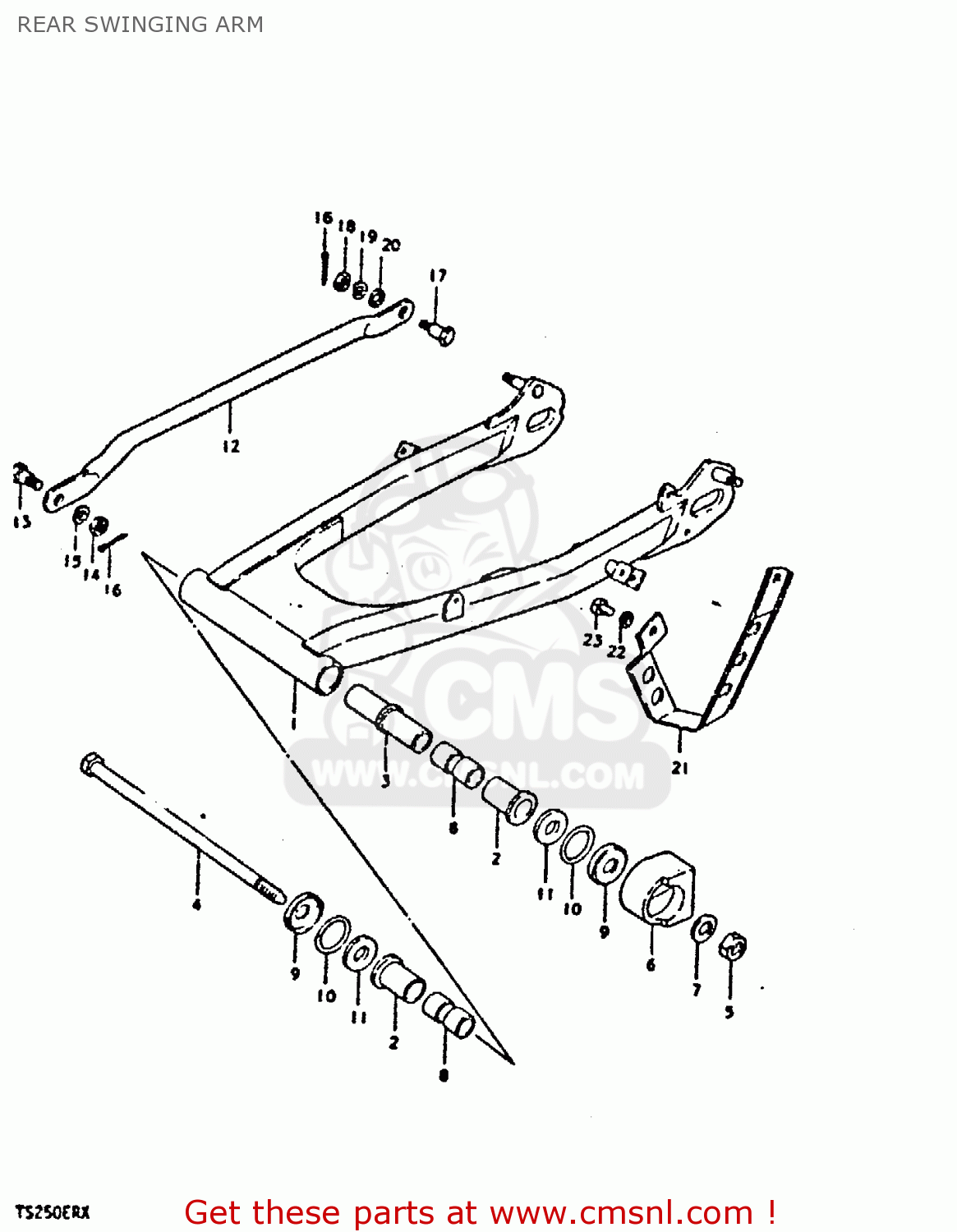

REAR SWINGING ARM

ref

part #

description

quantity

1-1

611003088008C
ref: 1-1
MODEL T

SWING ARM ASSEMBLY,REAR

€ 0.00

1-2

611003088108C
ref: 1-2
MODEL X

SWING ARM ASSEMBLY,REAR

€ 0.00

2

0930722003
ref: 2

BUSH

€ 18.00

3

6128032000
ref: 3

SPACER,SWING ARM,CENTER

€ 12.50

4-1

6121115006
ref: 4-1
MODEL T

SHAFT,REAR SWING ARM

€ 34.50

4-2

6121115007
ref: 4-2
MODEL X

SHAFT,REAR SWING ARM

€ 34.50

5

0831921148
ref: 5

NUT 14MM

€ 3.00

6-1

6127330900
ref: 6-1
MODEL T

BUFFER,CHAIN TOUCH DEFLECTOR

€ 9.00

6-2

6127330901
ref: 6-2
MODEL X

BUFFER,CHAIN TOUCH DEFLECTOR

€ 9.00

7

0832211148
ref: 7

WASHER

€ 2.00

8

6125115001
ref: 8

SPACER

€ 21.00

9

6126215000
ref: 9

COVER

€ 84.00

10

0928030001
ref: 10

O RING(D:3,ID:29.5)

€ 2.00

11

0916014009
ref: 11
14.5*29*2.3

WASHER(14.5X29X2.3)

€ 3.50

12

6431132111
ref: 12

TORQUE LINK,REAR

€ 8.50

13

0911108012
ref: 13

BOLT(8X22.5)

€ 3.00

14

0914008008
ref: 14

NUT

€ 1.50

15

0832121088
ref: 15

LOCK WASHER

€ 2.00

16

0411120158
ref: 16

PIN

€ 1.50

17

0911110009
ref: 17

BOLT(10X32.5)

€ 5.00

18

0831022108
ref: 18

NUT

€ 2.50

19

0832121108
ref: 19

LOCK WASHER

€ 2.00

20

0832211128
ref: 20

WASHER

€ 2.00

21

6134130500
ref: 21

GUIDE,CHAIN

€ 13.00

22

0832121088
ref: 22

LOCK WASHER

€ 2.00

23

0110708128
ref: 23

BOLT 8X12

€ 2.50
