PILOT BOX

TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)

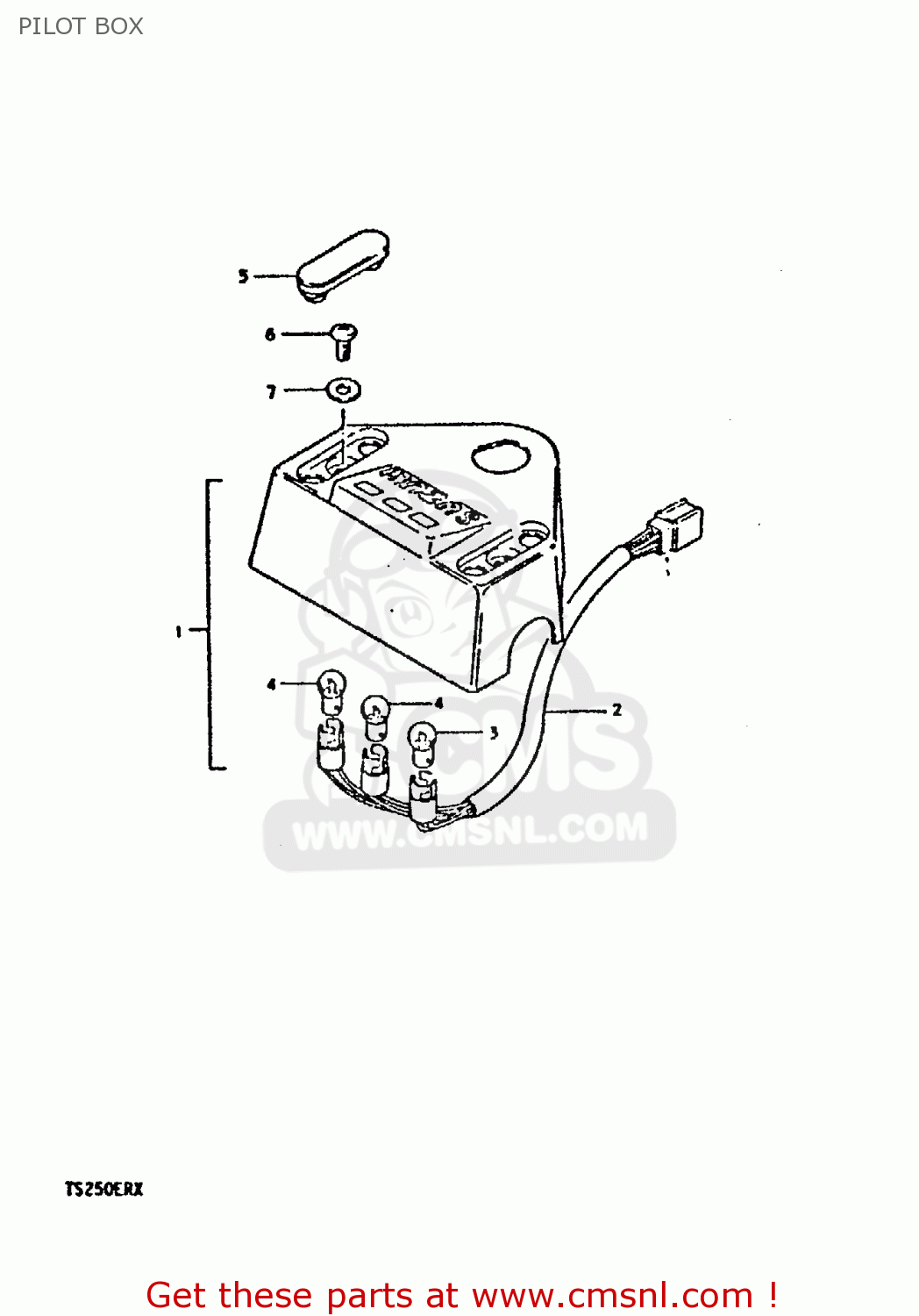

Pilot box diagram TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)

prices are in EUR

ref

part #

description

quantity

1-1

3638048500
ref: 1-1
MODEL T, TO 36380-48

CASE,PILOT BULB

€ 85.50

1-2

3638048501
ref: 1-2
MODEL X

LAMP ASSY,PILOT

€ 85.50

3632548500
ref: 2

SOCKET

€ 22.00

0947106001
ref: 3

BULB(6V1.7W,STANLEY,A61A)

€ 2.50

0947106002
ref: 4

BULB(6V/3W)

€ 2.50

3638848500
ref: 5

CAP,PILOT BOX BOLT

€ 4.50

0211206128
ref: 6

SCREW 6X12

€ 2.00

0832221068
ref: 7

WASHER

€ 2.00
