LEFT HANDLE SWITCH

TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)

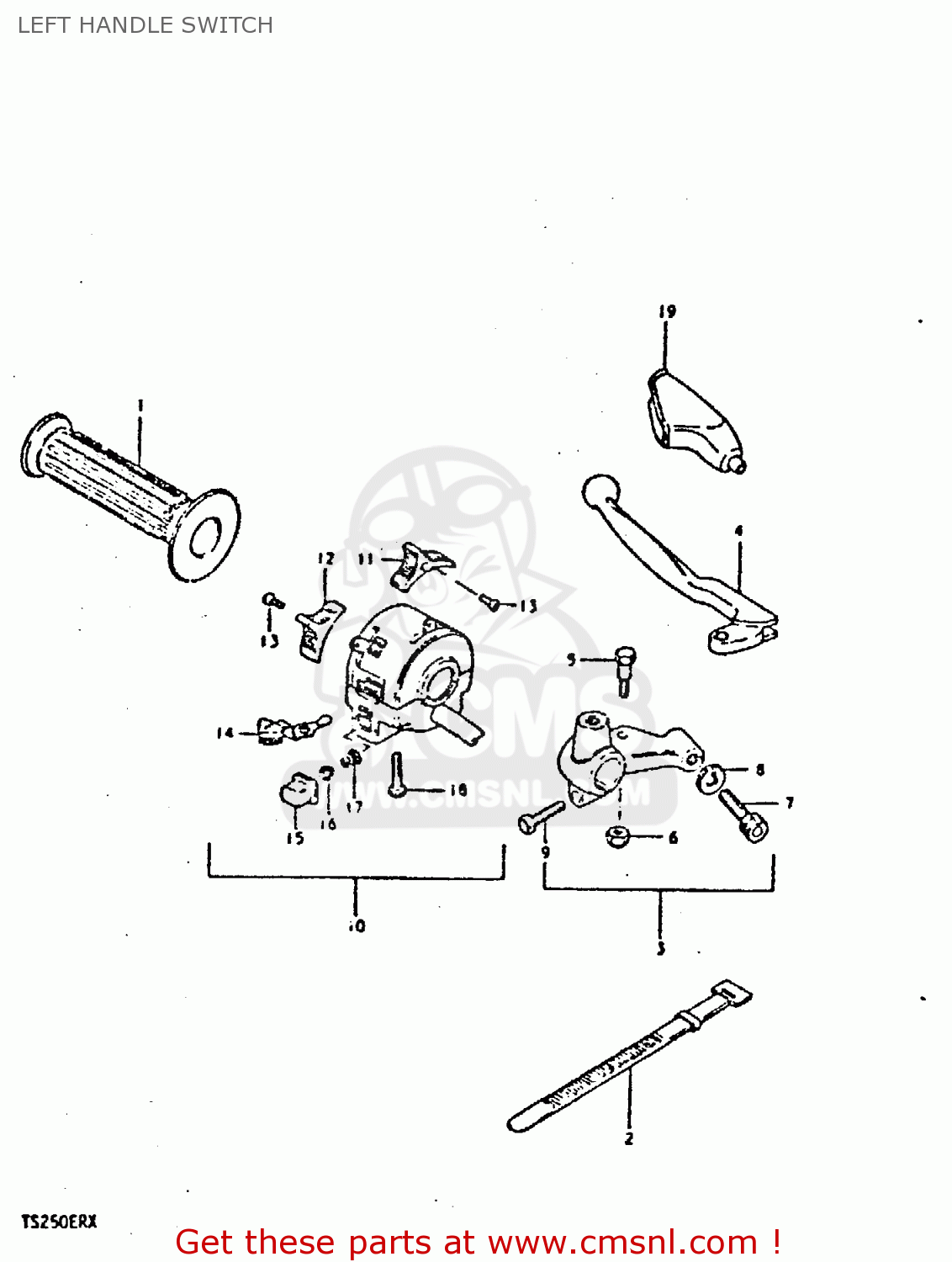

Left handle switch diagram TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)

prices are in EUR

ref

part #

description

quantity

5721145020
ref: 1

GRIP,L

€ 9.00

0940712402
ref: 2

CLAMP(L:120)

€ 3.00

5750030900
ref: 3

LEVER ASSY,CLUTCH

€ 40.50

5762026500
ref: 4

LEVER,CLUTCH

€ 28.50

5743111011
ref: 5

BOLT,LEVER

€ 6.00

0831921068
ref: 6

NUT 6MM

€ 2.00

5744111010
ref: 7

ADJUSTER,CABLE

€ 8.00

5744211010
ref: 8

NUT,CABLE ADJUSTER

€ 4.00

0110706208
ref: 9

BOLT

€ 2.00

3740032401
ref: 10

SWITCH ASSY, HANDLE LH

€ 119.50

3741145012
ref: 11

KNOB,LIGHTING SWITCH

€ 4.50

3742145012
ref: 12

KNOB,DIMMER SWITCH

€ 5.50

0212203068
ref: 13

SCREW

€ 1.00

3751345011
ref: 14

KNOB,TURNSIGNAL

€ 6.50

5737145000
ref: 15

BUTTON,HORN

€ 3.00

5737245000
ref: 16

CONTACT

€ 3.00

5738245000
ref: 17

SPRING

€ 2.50

0211205258
ref: 18

SCREW

€ 2.00

5734140001
ref: 19

COVER,CLUTCH LEVER

€ 7.50
