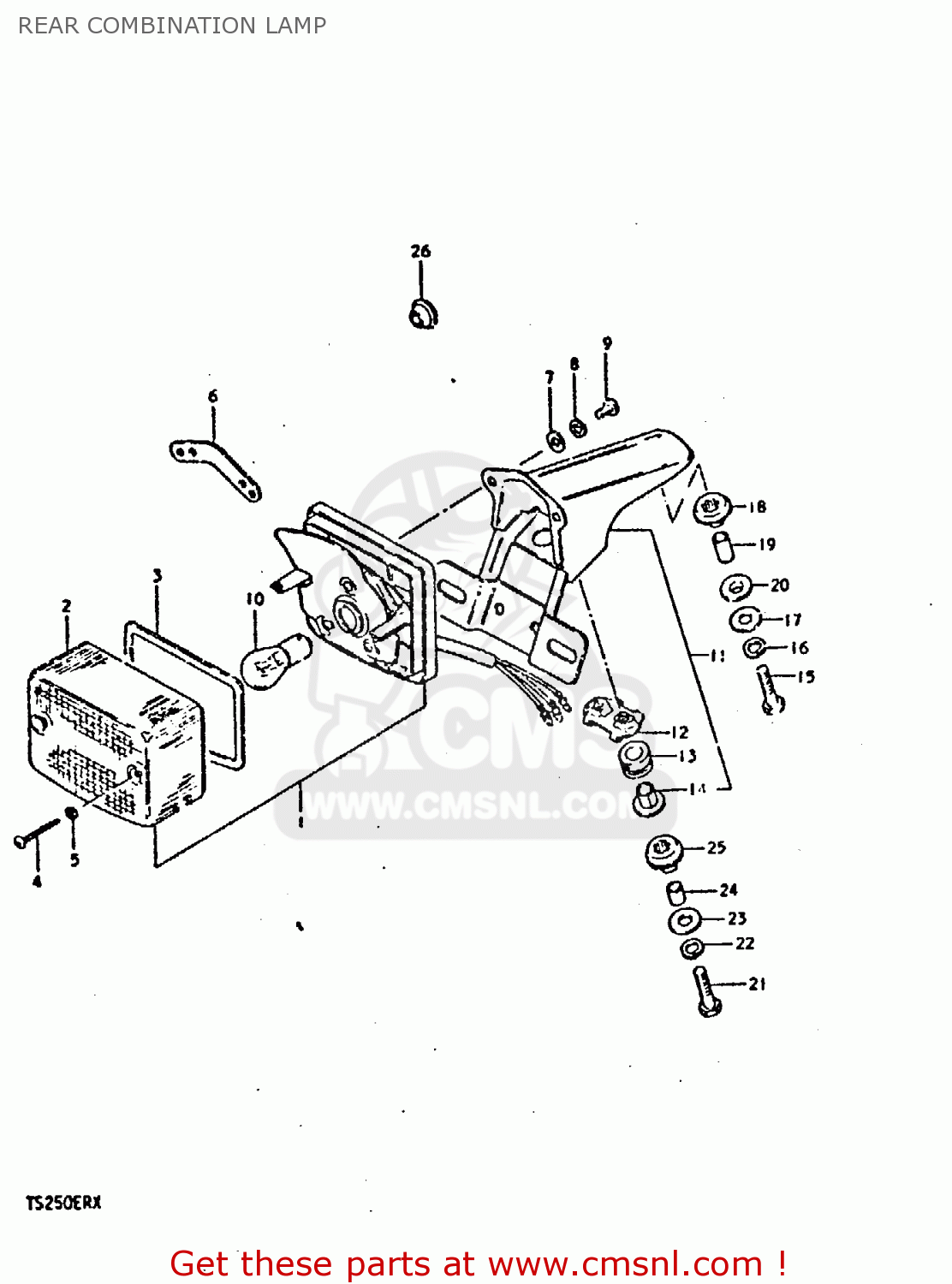

REAR COMBINATION LAMP

ref

part #

description

quantity

1

3572048510999
ref: 1

LAMP UNIT,REAR COMBINATION

€ 118.50

2

3571248510
ref: 2

LENS

€ 80.50

3

3571348510
ref: 3

GASKET (NAS)

€ 8.50

4

3562549030
ref: 4

BOLT

€ 1.50

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6

3571648510
ref: 6

PLATE,REAR COMBINATION LAMP

€ 9.00

7

0832221058
ref: 7

WASHER

€ 2.50

8

0832121058
ref: 8

LOCK WASHER

€ 2.00

9

0211205128
ref: 9

SCREW

€ 2.50

10

0947106030
ref: 10

BULB(6V32/3CP,STANLEY)

€ 12.50

11

3573030910
ref: 11

BRACKET UNIT,TAIL LAMP

€ 57.50

12

3571630950
ref: 12

PLATE

€ 10.50

13

3576530950
ref: 13

CUSHION

€ 18.00

14

3576630950
ref: 14

SPACER

€ 2.00

15

0110706308
ref: 15

BOLT

€ 2.50

16

0832121068
ref: 16

LOCK WASHER

€ 2.50

17

0916006027
ref: 17

WASHER (6.5X20X1.2)

€ 2.00

18

0932009010
ref: 18

CUSHION

€ 2.50

19

0918006072
ref: 19

SPACER

€ 2.00

20

0932009003
ref: 20

CUSHION

€ 2.00

21

0110708458
ref: 21

BOLT 8X45

€ 2.50

22

0832121068
ref: 22

LOCK WASHER

€ 2.50

23

0916006027
ref: 23

WASHER (6.5X20X1.2)

€ 2.00

24

0918006061
ref: 24

SPACER

€ 2.50

25

0932009011
ref: 25

CUSHION

€ 2.50

26

0930807004
ref: 26

GROMMET

€ 2.50
