HEADLAMP HOUSING

TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)

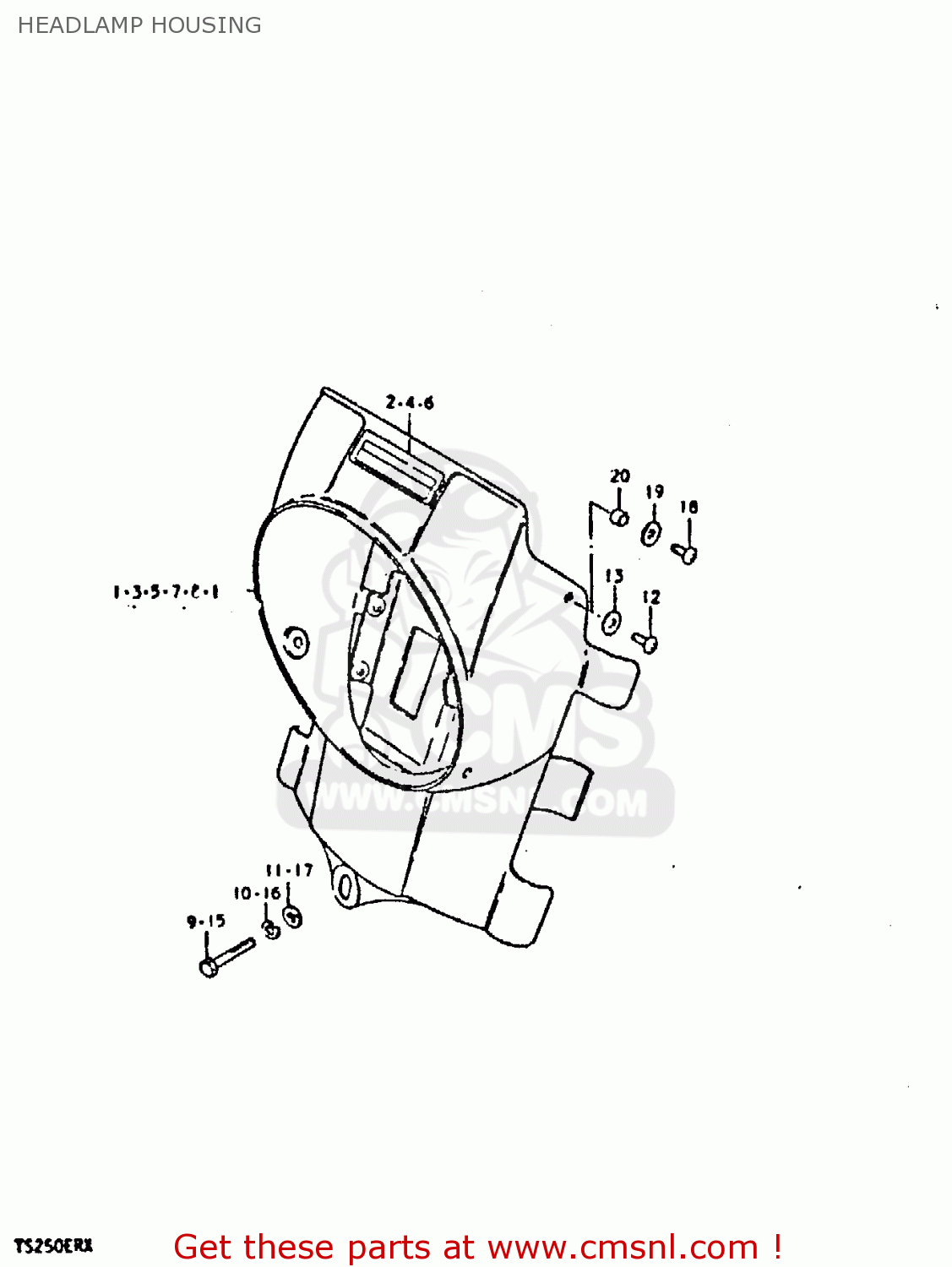

Headlamp housing diagram TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)

HEADLAMP HOUSING TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)
HEADLAMP HOUSING TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)
HEADLAMP HOUSING TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)
prices are in EUR
ref
part #
description
quantity
1
518104850207P
ref: 1
MODEL T
HOUSING, HEADLAMP (RED)
€ 62.00
2
682754850069F
ref: 2
MODEL T
TAPE, HOUSING
€ 5.00
3
5181048502163
ref: 3
MODEL T
HOUSING, HEADLAMP (YELLOW)
€ 71.50
4
682754850067H
ref: 4
MODEL T
TAPE, HOUSING
€ 4.50
5
5181048502189
ref: 5
MODEL T
HOUSING, HEADLAMP (WHITE)
€ 71.50
6
682754850067H
ref: 6
MODEL T
TAPE, HOUSING
€ 4.50
7-1
NOTUSED
ref: 7-1
MODEL T
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
7-2
NOTUSED
ref: 7-2
MODEL T
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
7-3
NOTUSED
ref: 7-3
MODEL T
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
7-4
NOTUSED
ref: 7-4
MODEL T
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
7-5
NOTUSED
ref: 7-5
MODEL T
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
7-6
NOTUSED
ref: 7-6
MODEL T
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
7-7
NOTUSED
ref: 7-7
MODEL T
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
8-1
NOTUSED
ref: 8-1
MODEL T
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
8-2
NOTUSED
ref: 8-2
MODEL T
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
8-3
NOTUSED
ref: 8-3
MODEL T
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
8-4
NOTUSED
ref: 8-4
MODEL T
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
9
0110706128
ref: 9
MODEL T
BOLT
0110706128
€ 2.00
10
0832121068
ref: 10
MODEL T
LOCK WASHER
0832121068
€ 2.50
11
0916006020
ref: 11
MODEL T
WASHER
0916006020
€ 2.00
12
0211205128
ref: 12
MODEL T
SCREW
€ 2.50
13
0916005017
ref: 13
MODEL T
WASHER (5.5X16X1.2)
0916005017
€ 2.50
14-1
518104850407P
ref: 14-1
MODEL X
HOUSING, HEADLAMP (RED)
518104850407P
€ 62.00
14-2
518104850408Y
ref: 14-2
MODEL X
HOUSING,HEADLAMP
518104850408Y
€ 71.50
14-3
5181048504163
ref: 14-3
MODEL X
HOUSING, HEADLAMP (YELLOW)
€ 71.50
14-4
5181048504189
ref: 14-4
MODEL X
HOUSING, HEADLAMP (WHITE)
€ 71.50
15
0110706128
ref: 15
MODEL X
BOLT
0110706128
€ 2.00
16
0832121068
ref: 16
MODEL X
LOCK WASHER
0832121068
€ 2.50
17
0916006020
ref: 17
MODEL X
WASHER
0916006020
€ 2.00
18
0211205128
ref: 18
MODEL X
SCREW
€ 2.50
19
0916005006
ref: 19
MODEL X
WASHER (5.5X18X1.6)
0916005006
€ 4.00
20
0918005015
ref: 20
MODEL X
SPACER (5.5X8X4)
0918005015
€ 3.00
