SEAT

TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)

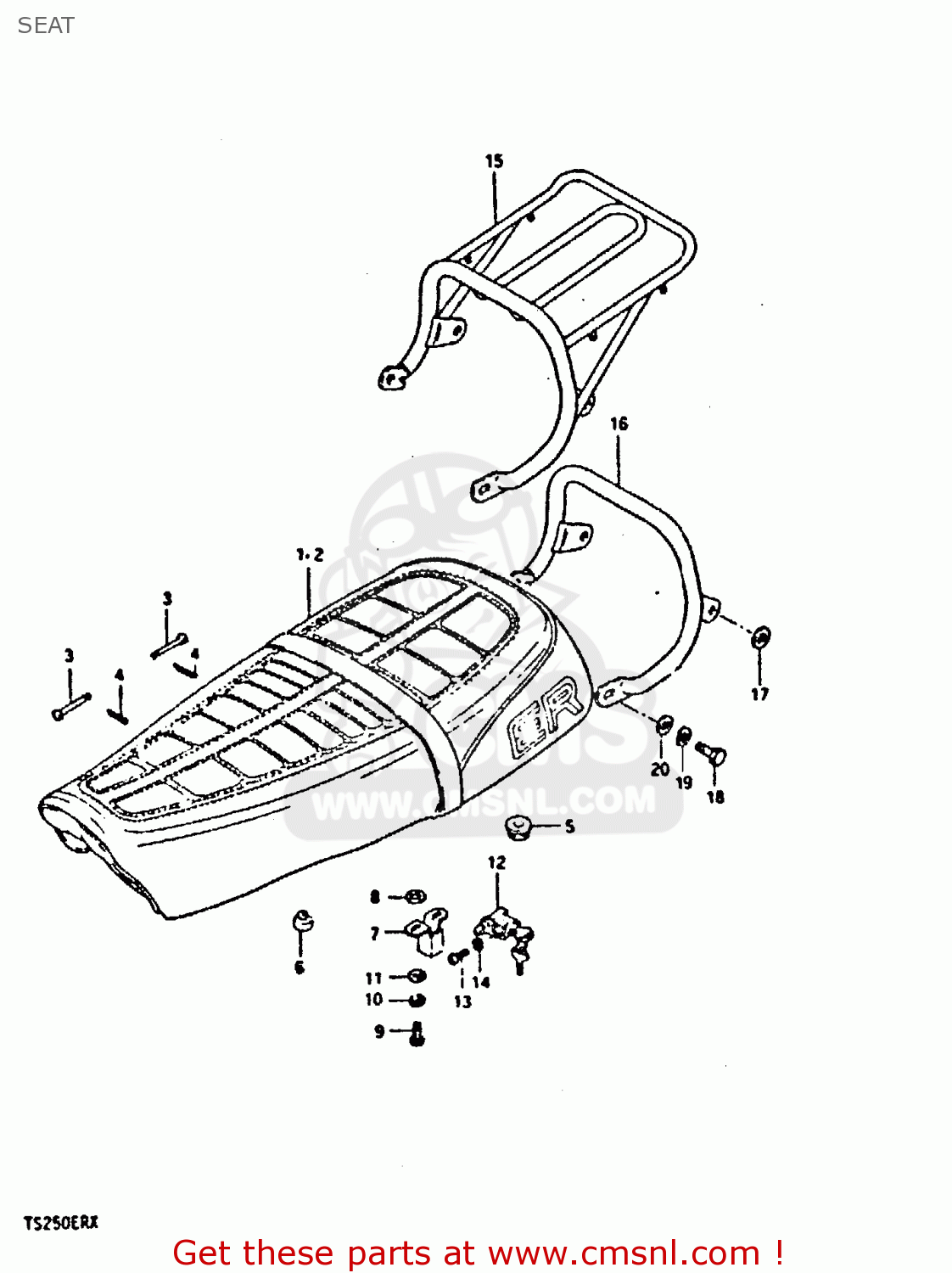

Seat diagram TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)

SEAT TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)
SEAT TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)
SEAT TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)
prices are in EUR
ref
part #
description
quantity
1
4510030900866
ref: 1
SEAT ASSY
€ 180.50
2
NOTUSED
ref: 2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
3
0920006018
ref: 3
PIN
0920006018
€ 2.00
4
0411120158
ref: 4
PIN
0411120158
€ 1.50
5
0932020004
ref: 5
CUSHION
0932020004
€ 4.50
6
0932110002
ref: 6
CUSHION(11.5X22X20)
0932110002
€ 2.00
7
4521329300
ref: 7
PLATE,CLAMP GUIDE
€ 7.00
8
0916008043
ref: 8
WASHER(8.5X18X1)
0916008043
€ 1.50
9
0211206128
ref: 9
SCREW 6X12
0211206128
€ 2.00
10
0832121068
ref: 10
LOCK WASHER
0832121068
€ 2.50
11
0832221068
ref: 11
WASHER
0832221068
€ 2.00
12
9570030832
ref: 12
LOCK ASSY,SEAT
9570030832
€ 54.00
13
0211205128
ref: 13
SCREW
€ 2.50
14
0832121058
ref: 14
LOCK WASHER
0832121058
€ 2.00
15
4631030900
ref: 15
OPT
CARRIER
€ 0.00
16
NOTUSED
ref: 16
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
17
NOTUSED
ref: 17
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
18
NOTUSED
ref: 18
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
19
NOTUSED
ref: 19
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
20
NOTUSED
ref: 20
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
