HEADLAMP (E4)

TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)

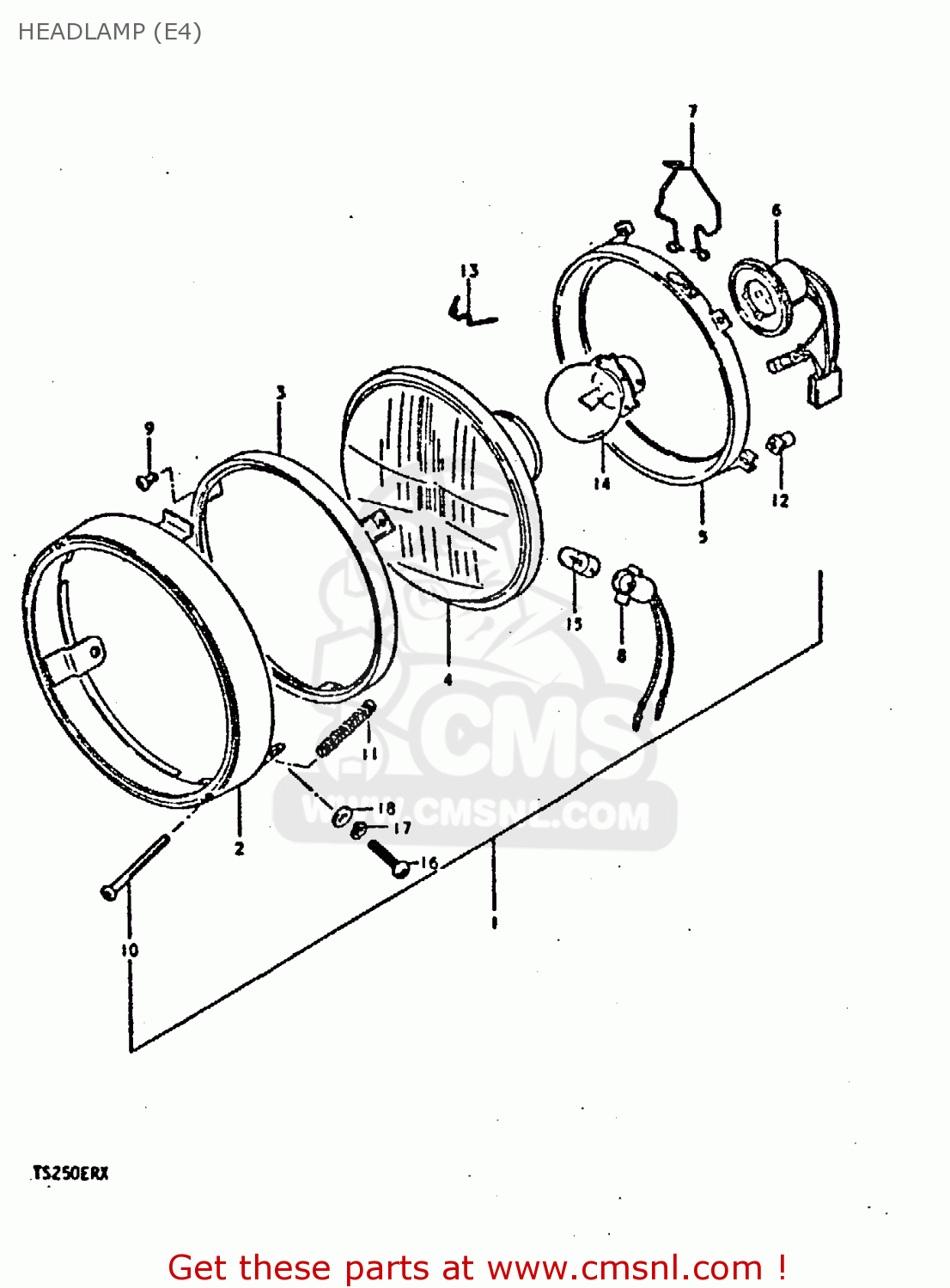

Headlamp (e4) diagram TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)

prices are in EUR

ref

part #

description

quantity

3510048540999
ref: 1

HEADLAMP ASSY

€ 0.00

3511148530
ref: 2

RIM

€ 34.00

3512748530
ref: 3

RETAINER,HEADLAMP

€ 13.00

3512127650
ref: 4

UNIT

€ 77.00

3513048540
ref: 5

RING, MOUNTING

€ 18.00

3517136640
ref: 6

SOCKET

€ 0.00

3517228660
ref: 7

CLAMP,HEADLAMP

€ 7.00

3611828660
ref: 8

SOCKET

€ 11.50

0211204088
ref: 9

SCREW

€ 1.50

3515133611
ref: 10

SCREW,HEADLAMP ADJUST

€ 4.00

3515431900
ref: 11

SPRING,ADJUSTING

€ 3.50

3515248530
ref: 12

NUT,HEADLAMP ADJUSTER

€ 2.00

3512848530
ref: 13

SPRING,HEADLAMP UNIT

€ 3.50

0947106032
ref: 14
EXECUTED LOCALLY

BULB (6V,25/25W)

€ 0.00

0947106027
ref: 15

BULB(6V4W,STANLEY,A1364J)

€ 4.50

0211205168
ref: 16

SCREW

€ 2.50

0832121058
ref: 17

LOCK WASHER

€ 2.00

0832221058
ref: 18

WASHER

€ 2.50
