BATTERY

GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

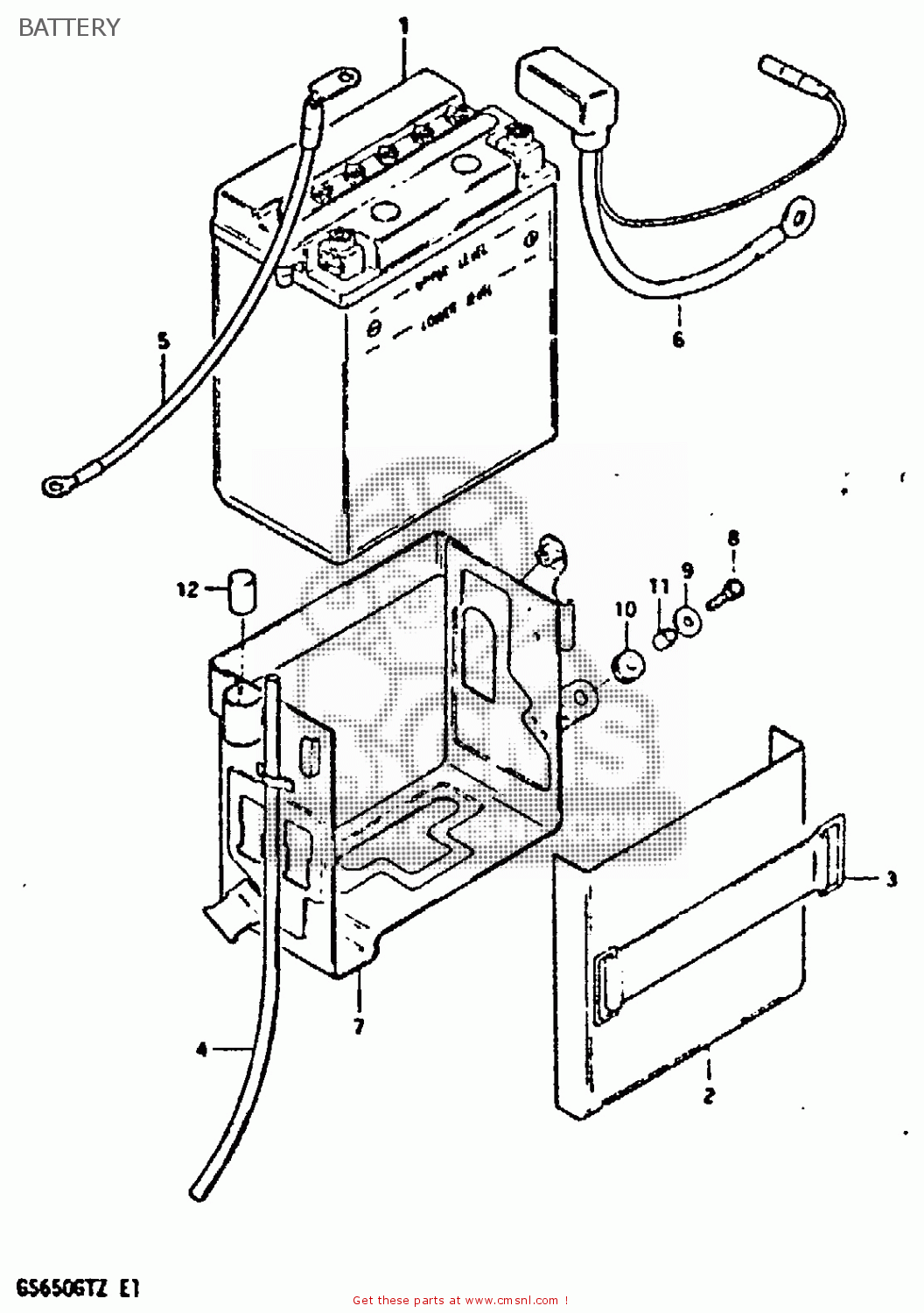

Battery diagram GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

prices are in EUR

ref

part #

description

quantity

3361049210
ref: 1

BATTERY ASSY (12V)

€ 110.00

3366134200
ref: 2

COVER,BATTERY

€ 6.50

0946200043
ref: 3

BAND

€ 4.50

3368031003
ref: 4

HOSE,BATTERY EXHAUST

€ 4.50

3385034200
ref: 5

CORD,BATTERY MINUS

€ 15.00

3382034300
ref: 6

CORD,BATTERY PLUS

€ 14.00

4154034200
ref: 7

HOLDER,BATTERY

€ 39.00

0110706168
ref: 8

BOLT, UPPER

€ 3.00

0916006020
ref: 9

WASHER

€ 2.00

0932008007
ref: 10

CUSHION

€ 4.00

0918006038
ref: 11

SPACER(6.1X9X7.5)

€ 2.00

0932905006
ref: 12

CUSHION

€ 2.00
