FUEL COCK (MODEL Z)

GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

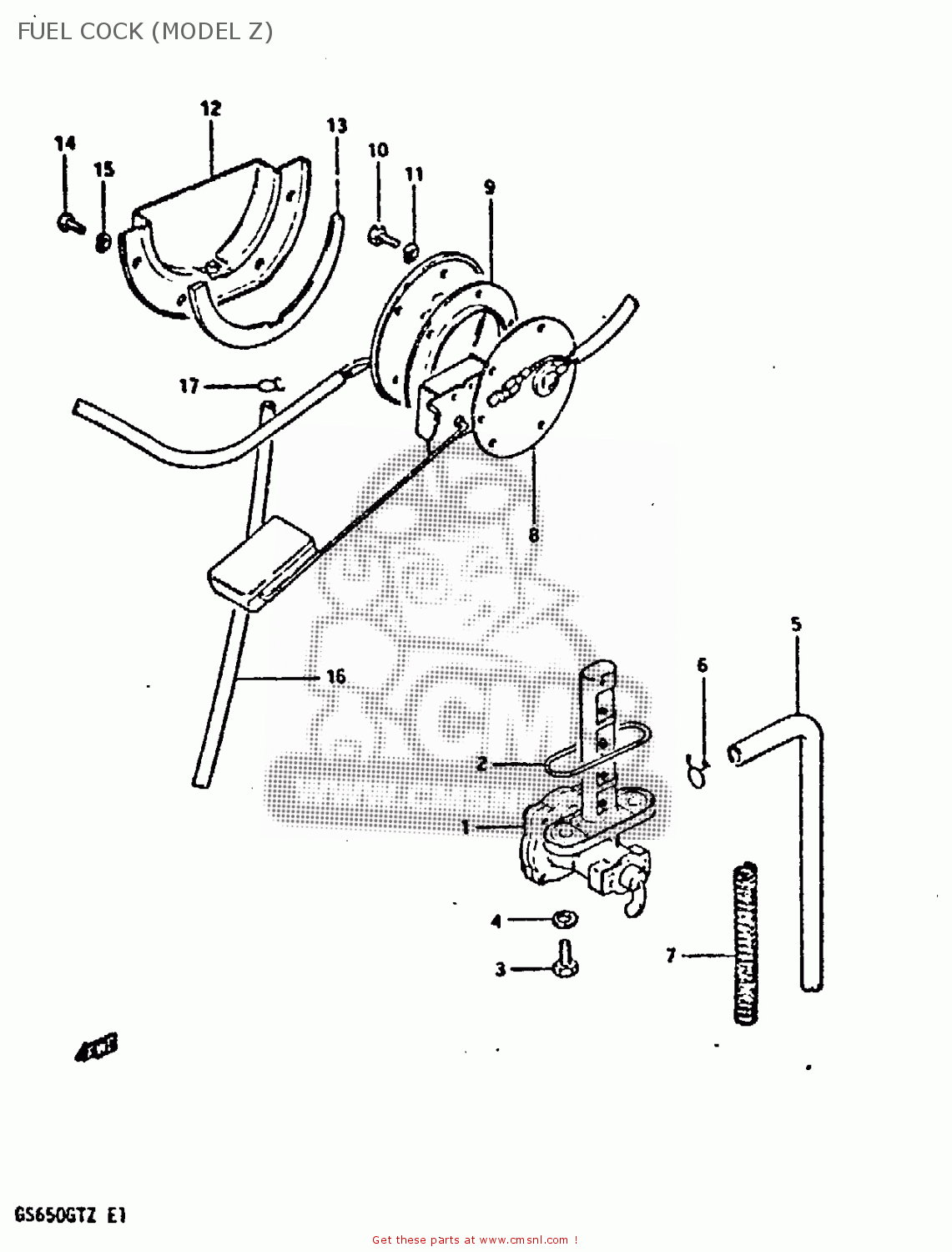

Fuel cock (model z) diagram GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

FUEL COCK (MODEL Z) GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
FUEL COCK (MODEL Z) GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
FUEL COCK (MODEL Z) GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
prices are in EUR
ref
part #
description
quantity
1
4430034470
ref: 1
COCK ASSEMBLY,FUEL
€ 104.50
2
4434849170
ref: 2
O RING
4434849170
€ 3.50
3
0912806006
ref: 3
BOLT(6X20)
0912806006
€ 2.00
4
0916806010
ref: 4
GASKET
0916806010
€ 2.00
5
0934307073
ref: 5
HOSE
0934307073
€ 17.50
6
0940110403
ref: 6
CLIP
0940110403
€ 7.00
7
0944013018
ref: 7
SPRING
€ 14.50
8
3481034500
ref: 8
GAUGE ASSEMBLY,FUEL LEVEL
€ 62.50
9
3482545100
ref: 9
GASKET,FUEL LEVEL GAUGE (NAS)
3482545100
€ 7.00
10
0110405108
ref: 10
BOLT
€ 1.50
11
0832121058
ref: 11
LOCK WASHER
0832121058
€ 2.00
12
3488534500
ref: 12
PLATE,FUEL DRAIN
3488534500
€ 20.50
13
3488834500
ref: 13
GASKET (NAS)
3488834500
€ 8.50
14
0211205088
ref: 14
SCREW
0211205088
€ 2.00
15
0832121058
ref: 15
LOCK WASHER
0832121058
€ 2.00
16
0934305151
ref: 16
HOSE
€ 13.00
17
0940108402
ref: 17
CLIP
0940108402
€ 1.50
