REAR COMBINATION LAMP (E2, E4, E15, E16, E18, E21, E26)

GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

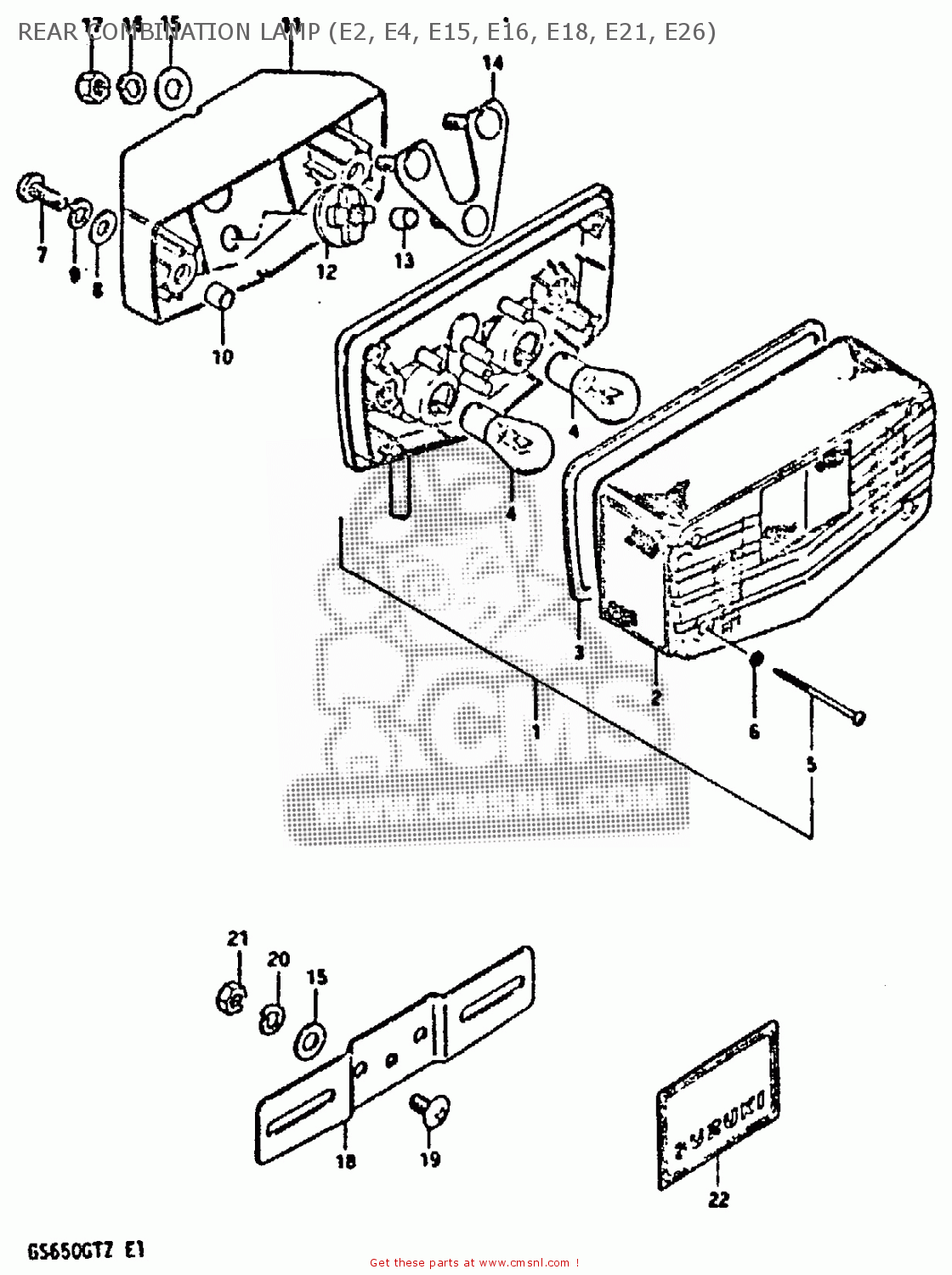

Rear combination lamp (e2, e4, e15, e16, e18, e21, e26) diagram GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

REAR COMBINATION LAMP (E2, E4, E15, E16, E18, E21, E26) GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
REAR COMBINATION LAMP (E2, E4, E15, E16, E18, E21, E26) GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
REAR COMBINATION LAMP (E2, E4, E15, E16, E18, E21, E26) GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
prices are in EUR
ref
part #
description
quantity
1
3572011480
ref: 1
LAMP UNIT, TAIL
€ 149.00
2
3571244182
ref: 2
LENS
3571244182
€ 58.50
3
3571344130
ref: 3
GASKET,REAR COMBINATION LAMP LENS (NAS)
3571344130
€ 6.50
4
0947112057
ref: 4
BULB 12V21/5W
0947112057
€ 6.00
5
3572344130
ref: 5
SCREW
3572344130
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
3562743010
€ 2.00
7
0211206208
ref: 7
SCREW
€ 2.00
8
0832221068
ref: 8
WASHER
0832221068
€ 2.00
9
0832121068
ref: 9
LOCK WASHER
0832121068
€ 2.50
10
3576644130
ref: 10
SPACER,REAR COMBINATION LAMP
€ 0.00
11
3573044130
ref: 11
BRACKET UNIT,TAIL LAMP
3573044130
€ 37.00
12
3576544130
ref: 12
CUSHION,REAR COMBINATION LAMP
3576544130
€ 6.50
13
3576744130
ref: 13
SPACER,REAR COMBINATION LAMP
3576744130
€ 2.00
14
3572744130
ref: 14
PLATE,REAR COMBINATION LAMP
3572744130
€ 6.00
15
0916006060
ref: 15
WASHER
0916006060
€ 2.00
16
0832121068
ref: 16
LOCK WASHER
0832121068
€ 2.50
17
0831011068
ref: 17
NUT
0831011068
€ 2.50
18
3592744110
ref: 18
PLATE,RR LICENSE
3592744110
€ 22.50
19
0214206167
ref: 19
SCREW
0214206167
€ 2.00
20
0832121068
ref: 20
LOCK WASHER
0832121068
€ 2.50
21
0831011068
ref: 21
NUT
0831011068
€ 2.50
22
NOTUSED
ref: 22
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
