SEAT

GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

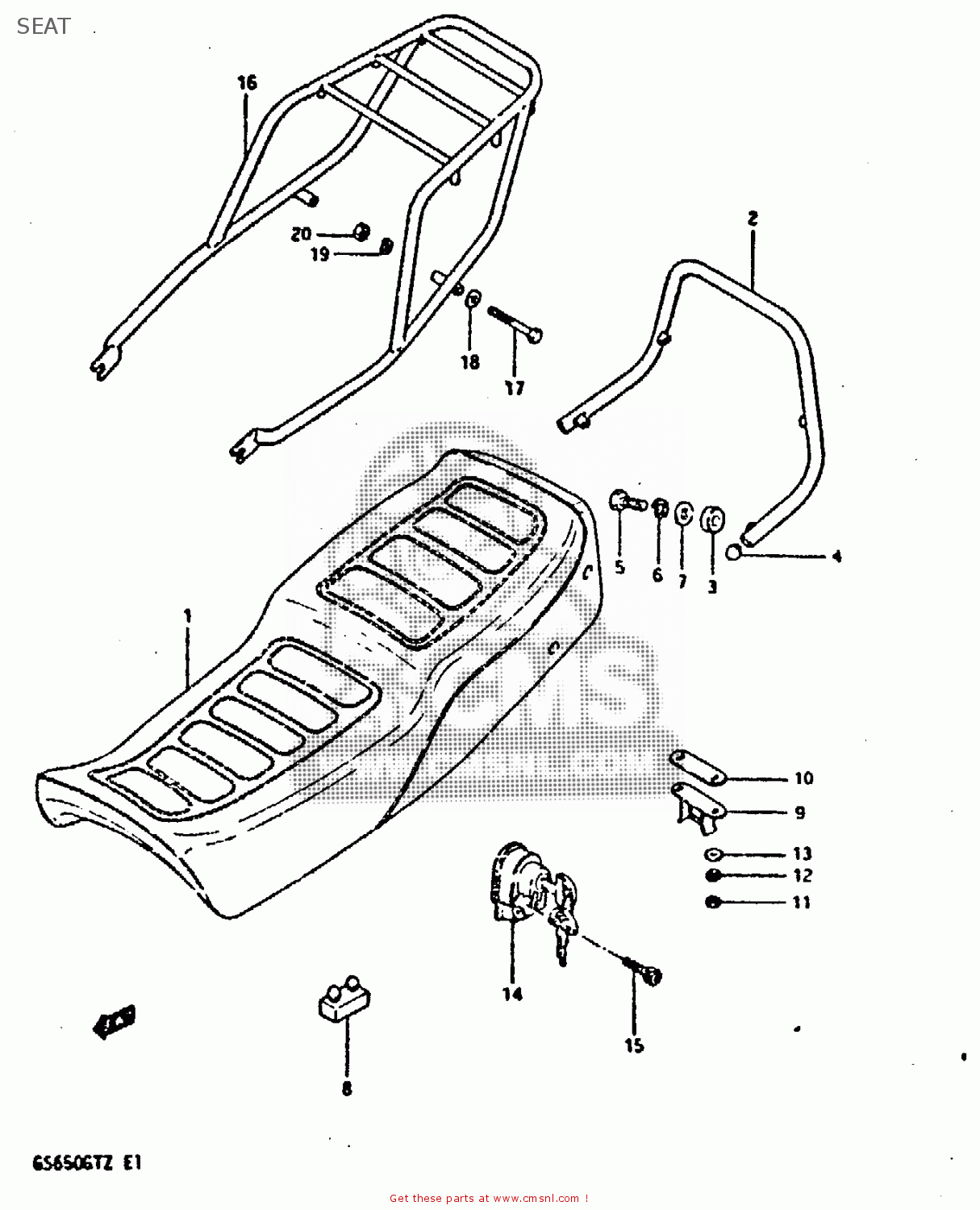

Seat diagram GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

SEAT GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
SEAT GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
SEAT GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
prices are in EUR
ref
part #
description
quantity
1-1
451003425041G
ref: 1-1
MODEL X
SEAT (BLACK)
€ 461.50
1-2
451003425147G
ref: 1-2
MODEL Z
SEAT ASSEMBLY
€ 461.50
1-3
NOTUSED
ref: 1-3
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-4
NOTUSED
ref: 1-4
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
2-1
4621034200
ref: 2-1
MODEL X
HANDLE,PILLION RIDER
€ 35.50
2-2
4621034201
ref: 2-2
MODEL Z
HANDLE,PILLION RIDER
€ 35.50
3
4621249000
ref: 3
CUSHION
4621249000
€ 15.00
4
4621349000
ref: 4
END,SHEET HANDLE
4621349000
€ 5.50
5
0110708208
ref: 5
BOLT
0110708208
€ 3.00
6
0832121088
ref: 6
LOCK WASHER
0832121088
€ 2.00
7
0832221088
ref: 7
WASHER
0832221088
€ 2.00
8
0932108006
ref: 8
CUSHION
0932108006
€ 3.00
9
4521044101
ref: 9
STRIKER,SEAT LOCK
4521044101
€ 32.50
10
4521744100
ref: 10
SHIM,SEAT LOCK STRIKER
4521744100
€ 4.50
11
0831022068
ref: 11
NUT 6MM
€ 2.50
12
0832121068
ref: 12
LOCK WASHER
0832121068
€ 2.50
13
0832221068
ref: 13
WASHER
0832221068
€ 2.00
14
9570034210
ref: 14
LOCK ASSY,HELMET
9570034210
€ 59.00
15
0910605008
ref: 15
BOLT 5X25
€ 2.00
16
4631034210
ref: 16
OPT
CARRIER, SPORTS
€ 0.00
17
0120408957
ref: 17
OPT
BOLT
€ 8.50
18
0832211088
ref: 18
OPT
WASHER
0832211088
€ 2.00
19
0832121088
ref: 19
OPT
LOCK WASHER
0832121088
€ 2.00
20
0831012088
ref: 20
OPT
NUT
0831012088
€ 2.00
