CRANKCASE COVER

GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

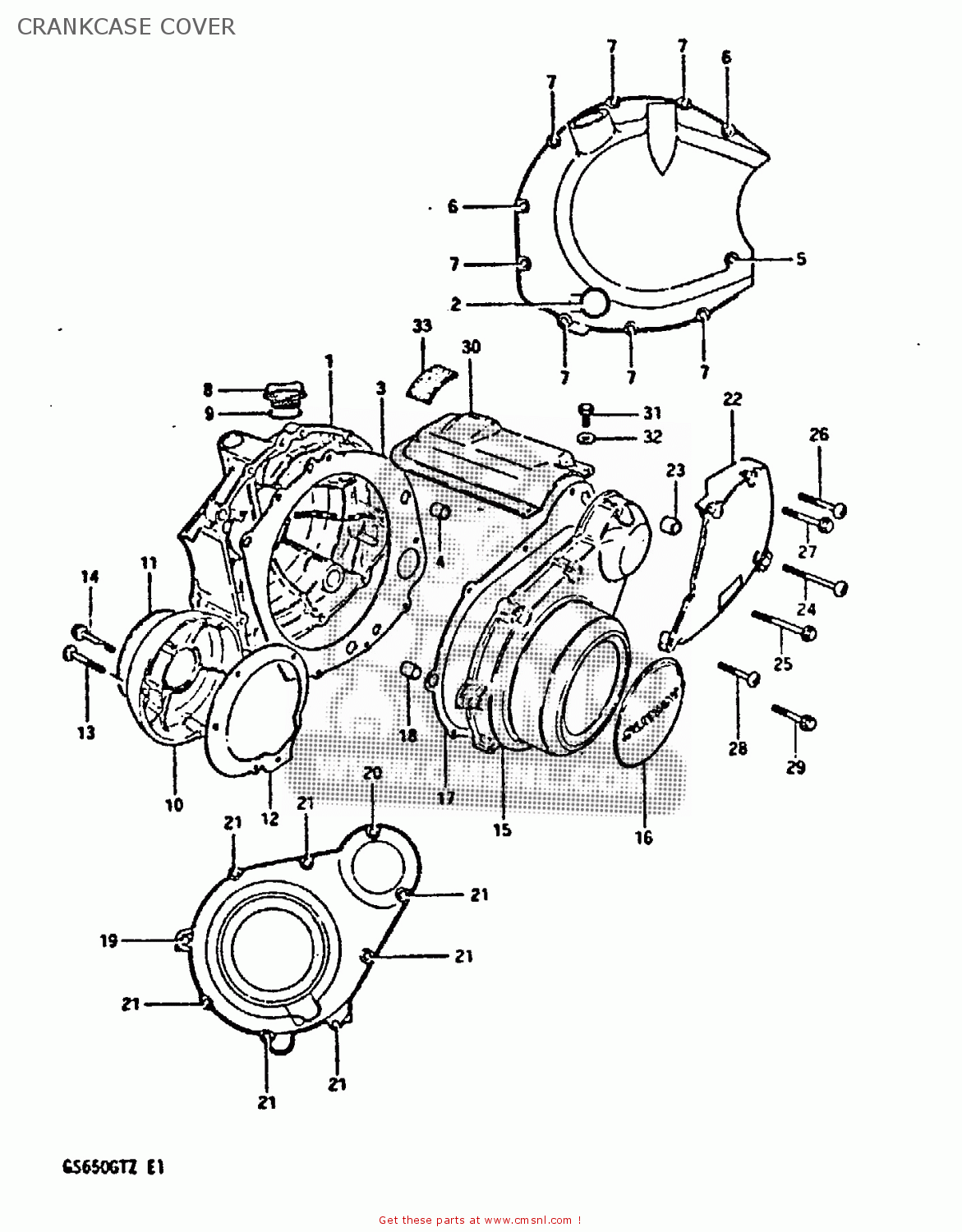

Crankcase cover diagram GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

CRANKCASE COVER GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
CRANKCASE COVER GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
CRANKCASE COVER GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
prices are in EUR
ref
part #
description
quantity
1
1134034202
ref: 1
COVER,CLUTCH
€ 152.50
2-1
1197145010
ref: 2-1
~E.NO.136795
LENS,OIL LEVEL CHECK
1197145010
€ 13.00
2-2
1197133210
ref: 2-2
E.NO.136796~
LENS,OIL LEVEL CHECK
1197133210
€ 13.50
3
1148234200
ref: 3
GASKET,CLUTCH COVER (MCA)
1148234200
€ 14.50
4
0421109129
ref: 4
PIN
0421109129
€ 2.00
5-1
0211206658
ref: 5-1
SCREW 6X65
0211206658
€ 2.00
5-2
0154706658
ref: 5-2
BOLT (6X65)
0154706658
€ 2.00
6-1
0211206408
ref: 6-1
SCREW
€ 2.00
6-2
0154706408
ref: 6-2
BOLT (6X40)
0154706408
€ 2.50
7-1
0211206308
ref: 7-1
SCREW 6X30
€ 2.50
7-2
0154706308
ref: 7-2
BOLT (6X30)
0154706308
€ 2.50
8
0925930003
ref: 8
PLUG
0925930003
€ 8.50
9
0928027002
ref: 9
O-RING
0928027002
€ 3.00
10-1
1138149201
ref: 10-1
~E.NO.117285
COVER,CONTACT BREAKER
€ 49.00
10-2
1138149202
ref: 10-2
E.NO.117286~
COVER,CONTACT BREAKER
1138149202
€ 49.00
11
6823534200
ref: 11
EMBLEM,CONTACT BREAKER COVER
6823534200
€ 22.50
12
1149149200
ref: 12
GASKET,CONTACT BREAKER COVER (NAS)
1149149200
€ 14.50
13
0211205308
ref: 13
SCREW
0211205308
€ 1.50
14
0154405308
ref: 14
BOLT (5*30)
€ 2.00
15-1
1135134200
ref: 15-1
~E.NO.117285
COVER
€ 189.00
15-2
1135134201
ref: 15-2
E.NO.117286~
COVER,MAGNETO
1135134201
€ 189.00
16
6823334200
ref: 16
EMBLEM,MAGNETO COVER
6823334200
€ 28.50
17
1148334200
ref: 17
GASKET,MAGNETO COVER (MCA)
1148334200
€ 17.00
18
0920613001
ref: 18
PIN
0920613001
€ 2.50
19-1
0211206458
ref: 19-1
SCREW (6X45)
0211206458
€ 2.00
19-2
0154706458
ref: 19-2
BOLT
0154706458
€ 2.50
20-1
0211206358
ref: 20-1
SCREW (6X35)
€ 2.50
20-2
0154706358
ref: 20-2
BOLT (6X35)
€ 2.50
21-1
0211206308
ref: 21-1
SCREW 6X30
€ 2.50
21-2
0154706308
ref: 21-2
BOLT (6X30)
0154706308
€ 2.50
22-1
1136034200
ref: 22-1
~E.NO.117285
COVER,SPROCKET
€ 72.50
22-2
1136034201
ref: 22-2
E.NO.117286~
COVER,SECONDARY DRIVE
€ 72.50
23
0421109129
ref: 23
PIN
0421109129
€ 2.00
24
0211206408
ref: 24
SCREW
€ 2.00
25
0154706408
ref: 25
BOLT (6X40)
0154706408
€ 2.50
26
0211206308
ref: 26
SCREW 6X30
€ 2.50
27
0154706308
ref: 27
BOLT (6X30)
0154706308
€ 2.50
28
0211206258
ref: 28
SCREW
€ 2.00
29
0154706258
ref: 29
BOLT
0154706258
€ 2.50
30
1138234200
ref: 30
COVER
€ 16.50
31
0110405088
ref: 31
BOLT 5X16
€ 2.00
32
0832221058
ref: 32
WASHER
€ 2.50
33
1136234200
ref: 33
DAMPER,STARTER MOTOR CLUTCH
€ 5.50
