GEAR SHIFTING

GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

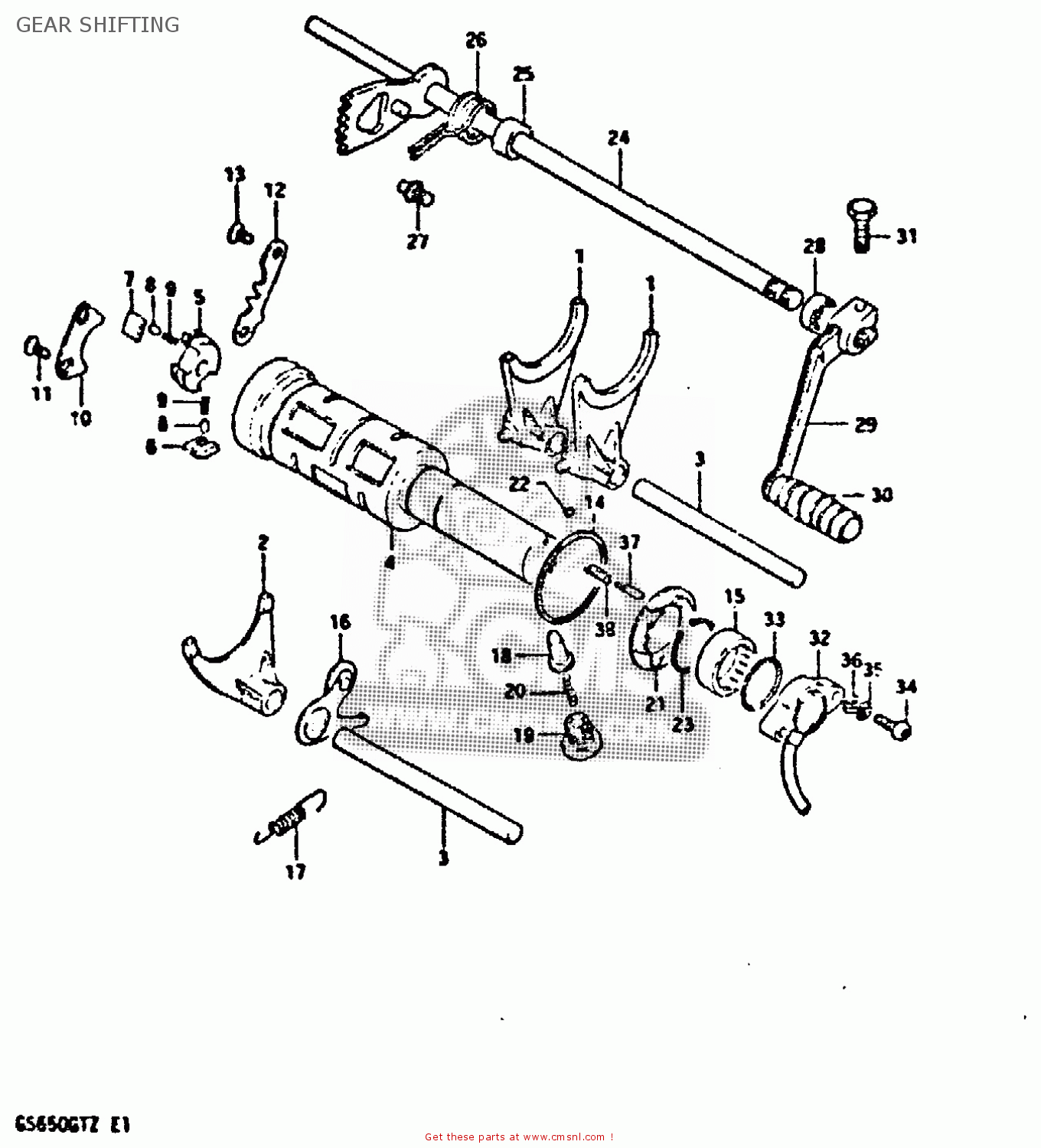

Gear shifting diagram GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

GEAR SHIFTING GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
GEAR SHIFTING GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
GEAR SHIFTING GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
prices are in EUR
ref
part #
description
quantity
1
2521134200
ref: 1
FORK,GEAR SHIFT NO.1
2521134200
€ 68.00
2
2523134200
ref: 2
FORK,GEAR SHIFT NO.3
2523134200
€ 49.00
3
2541131000
ref: 3
SHAFT,GEAR SHIFT FORK
2541131000
€ 14.50
4
2531034200
ref: 4
CAM,GEAR SHIFT
€ 207.50
5
2532234200
ref: 5
TO 25322-11000
SHIFTER,GEAR SHIFT CAM
2532234200
€ 14.50
6
2532334200
ref: 6
TO 25323-11000
PAWL,GEAR SHIFT NO.1
€ 6.00
7
2532434200
ref: 7
TO 25324-11000
PAWL,GEAR SHIFT NO.2
€ 6.00
8
0926105003
ref: 8
PIN(5X8)
0926105003
€ 1.50
9
0944004003
ref: 9
SPRING
0944004003
€ 1.50
10
2533134200
ref: 10
LIFTER,GEAR SHIFT PAWL
€ 0.00
11
0212206128
ref: 11
SCREW
0212206128
€ 3.00
12
2534134200
ref: 12
GUIDE,GEAR SHIFT
€ 0.00
13
0212206128
ref: 13
SCREW
0212206128
€ 3.00
14
0916040001
ref: 14
WASHER(40X45X1)
0916040001
€ 2.50
15
0926325031
ref: 15
BEARING
€ 17.50
16
2535034200
ref: 16
STOPPER,GEAR SHIFTING
€ 9.50
17
0944308023
ref: 17
SPRING
€ 1.50
18
2535130010
ref: 18
STOPPER,GEAR SHIFT CAM NO.2
2535130010
€ 6.50
19
2535430000
ref: 19
HOLDER,GEAR SHIFT CAM STOP SPR
2535430000
€ 6.50
20
0944006020
ref: 20
SPRING
0944006020
€ 14.00
21
2538145400
ref: 21
PLATE,GEAR SHIFT CAM STOPPER
2538145400
€ 10.50
22
0621104063
ref: 22
PIN 4X6
0621104063
€ 2.00
23
0833111258
ref: 23
CIRCLIP
0833111258
€ 2.00
24
2551034200
ref: 24
SHAFT,GEAR SHIFT
2551034200
€ 58.00
25
0918012068
ref: 25
SPACER(12X20X15.3)
0918012068
€ 3.00
26
0944426017
ref: 26
SPRING
0944426017
€ 5.00
27
2567101000
ref: 27
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.00
28
0928512002
ref: 28
OIL SEAL
0928512002
€ 7.00
29
2560034200
ref: 29
LEVER ASSEMBLY,GEAR SHIFTING
€ 33.00
30
2563216500
ref: 30
COVER
€ 0.00
31
0110708208
ref: 31
BOLT
0110708208
€ 3.00
32
3772034200
ref: 32
TO 37720-45011
BASE ASSEMBLY,NEUTRAL SWITCH TERMINAL
€ 52.00
33
0928026003
ref: 33
O-RING (D:2.4 ID:26.2)
0928026003
€ 2.50
34
0211205208
ref: 34
SCREW 5X20
0211205208
€ 3.00
35
0832121058
ref: 35
LOCK WASHER
0832121058
€ 2.00
36
0832221058
ref: 36
WASHER
€ 2.50
37
0920905011
ref: 37
PIN(5X15.5)
0920905011
€ 2.00
38
0944004010
ref: 38
SPRING
0944004010
€ 1.50
