FRAME COVER (MODEL X)

GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

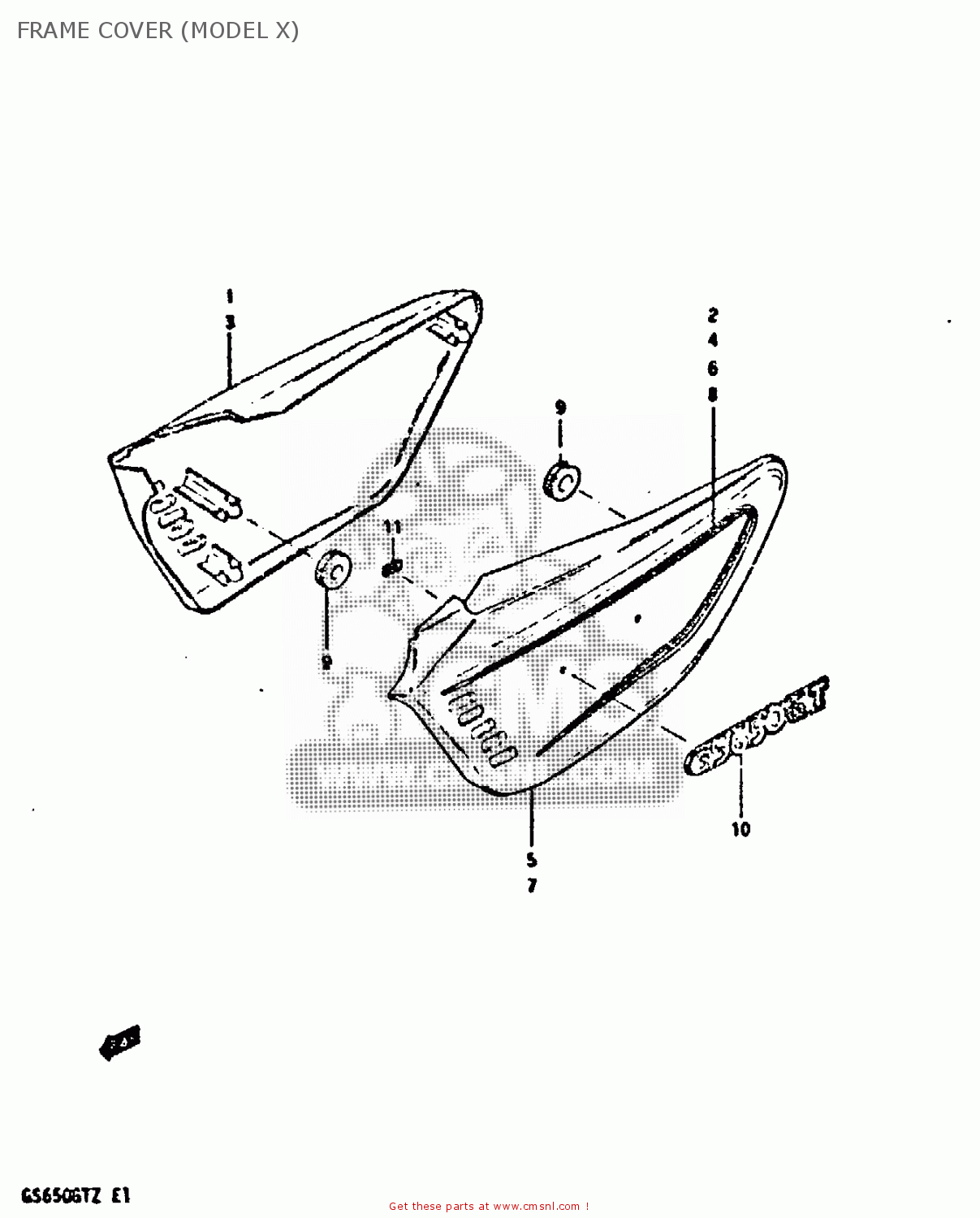

Frame cover (model x) diagram GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

prices are in EUR

ref

part #

description

quantity

4711034200019
ref: 1

COVER,FRAME,RIGHT

€ 57.50

681363420079Y
ref: 2

TAPE,FRAME COVER

€ 16.00

471103420005L
ref: 3

COVER, FRAME RH (RED)

€ 57.50

681363420079Z
ref: 4

TAPE,FRAME COVER

€ 29.50

4721034200019
ref: 5

COVER,FRAME,LEFT

€ 109.50

681463420079Y
ref: 6

TAPE,FRAME COVER

€ 0.00

472103420005L
ref: 7

COVER, FRAME LH (RED)

€ 109.50

681463420079Z
ref: 8

TAPE,FRAME COVER

€ 0.00

0932008018
ref: 9

CUSHION

€ 4.00

6813134210
ref: 10

EMBLEM

€ 28.00

0914803002
ref: 11

NUT

€ 3.00
