SIGNAL GENERATOR

GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

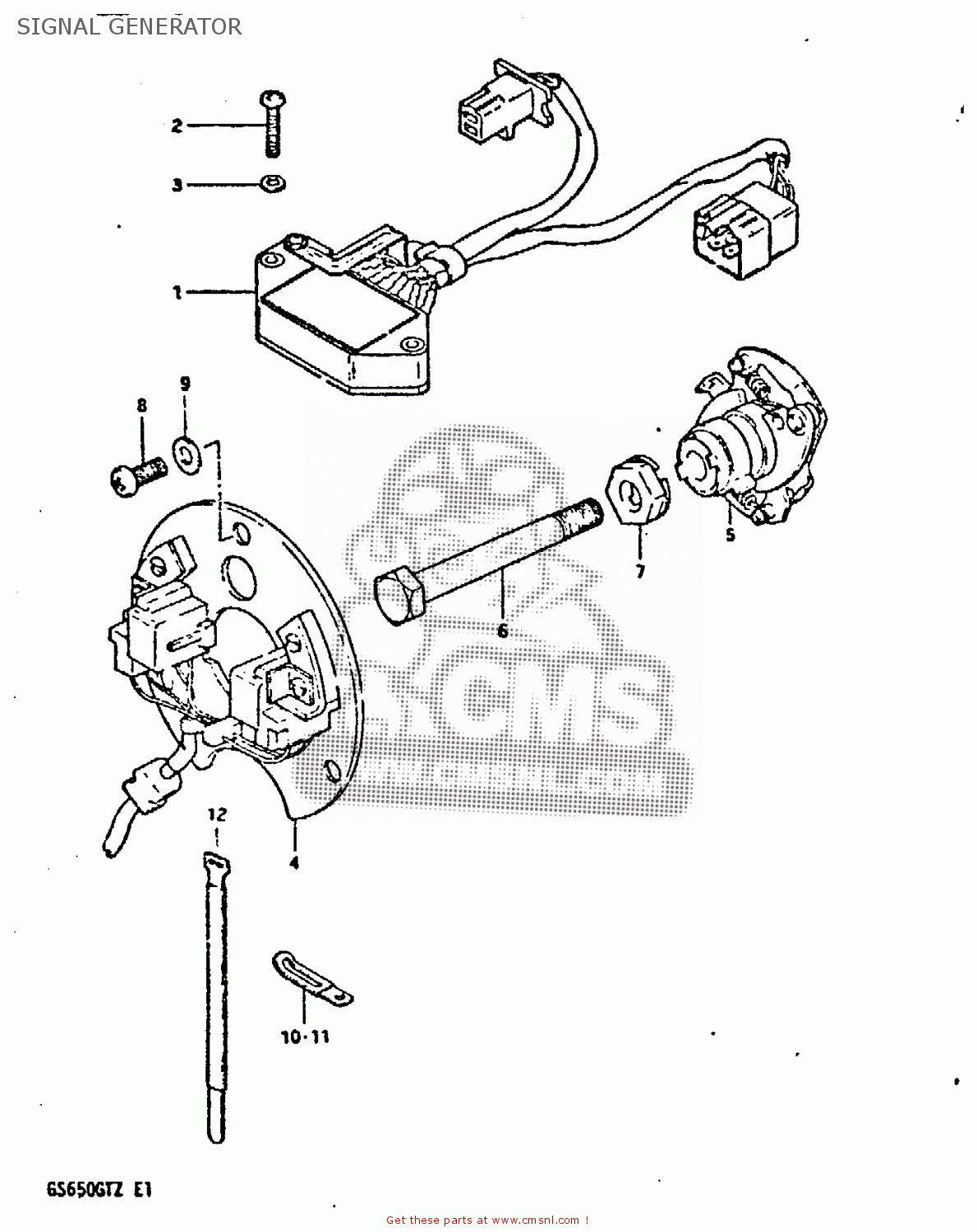

Signal generator diagram GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

prices are in EUR

ref

part #

description

quantity

3290034210
ref: 1

IGNITER UNIT ASSEMBLY

€ 549.50

0211206208
ref: 2

SCREW

€ 2.00

0832221068
ref: 3

WASHER

€ 2.00

3311034210
ref: 4

SIGNAL GENERATOR ASSEMBLY

€ 234.00

3312034210
ref: 5

GOVERNOR ASSEMBLY

€ 151.00

0110708658
ref: 6

BOLT

€ 3.00

3346547000
ref: 7

WASHER

€ 19.00

0912505024
ref: 8

SCREW(5X12)

€ 2.00

0916005027
ref: 9

WASHER

€ 2.50

0940406401
ref: 10

CLAMP L:35

€ 2.50

0940408401
ref: 11

CLAMP

€ 3.50

0940718301
ref: 12

CLAMP

€ 6.00
