CRANKSHAFT

GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

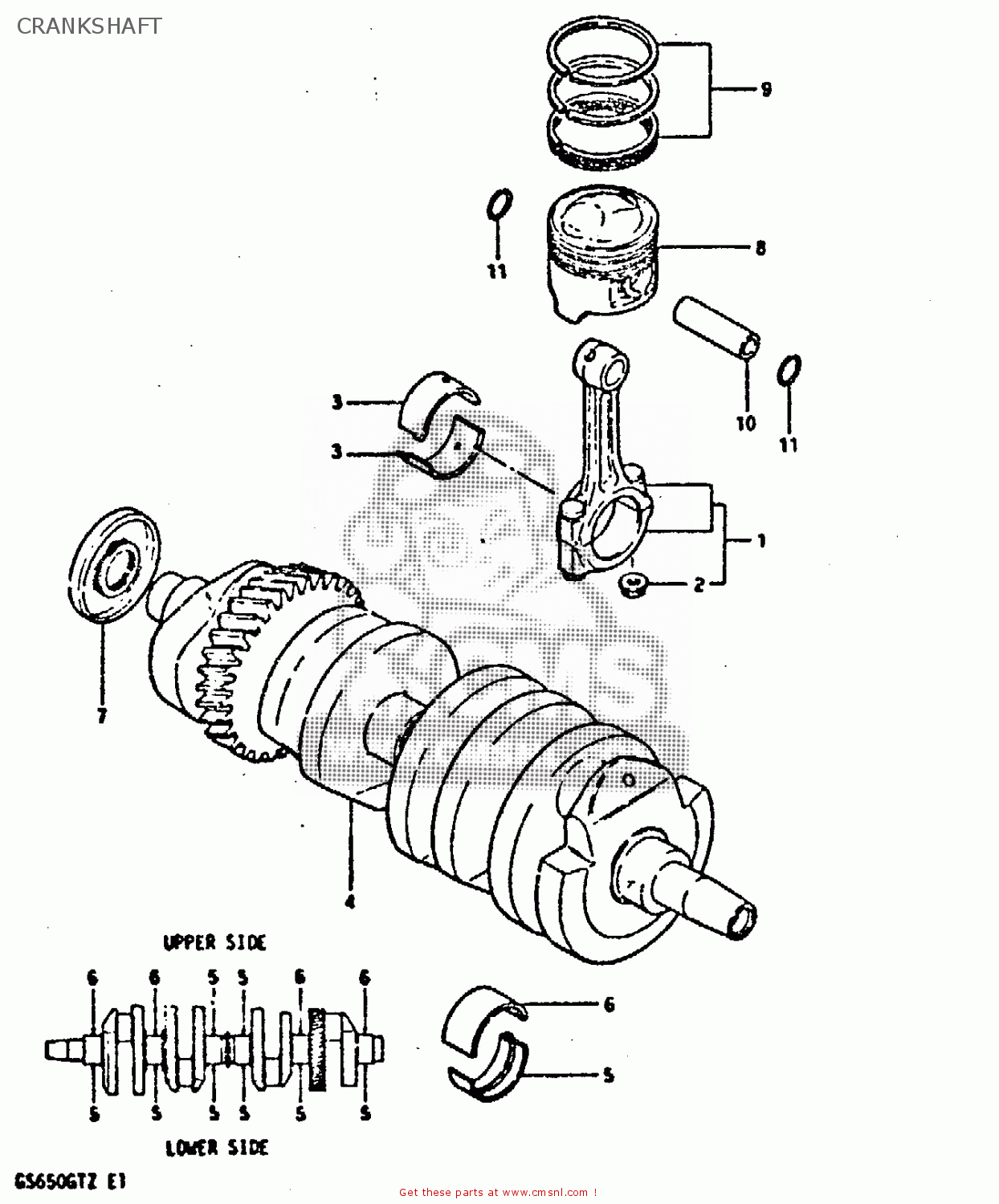

Crankshaft diagram GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

CRANKSHAFT GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
CRANKSHAFT GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
CRANKSHAFT GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
prices are in EUR
ref
part #
description
quantity
1
1216034202
ref: 1
ROD ASSEMBLY,CONNECTING
€ 103.00
2
0915908033
ref: 2
NUT
0915908033
€ 2.50
3-1
1216434210010
ref: 3-1
BEARING,CRANK PIN
1216434210010
€ 14.50
3-2
1216434210020
ref: 3-2
BEARING,CRANK PIN
1216434210020
€ 14.50
3-3
1216434210030
ref: 3-3
BEARING,CRANK PIN
1216434210030
€ 15.00
3-4
1216434210040
ref: 3-4
BEARING,CRANK PIN
1216434210040
€ 15.50
3-5
1216434210025
ref: 3-5
OPT
BEARING,CRANK PIN(US:0.25)
1216434210025
€ 11.00
3-6
1216434210050
ref: 3-6
OPT
METAL,CRANK PIN
1216434210050
€ 10.50
4
1222034202
ref: 4
CRANKSHAFT
€ 952.00
5-1
1222945400010
ref: 5-1
METAL CRANKSHAFT
1222945400010
€ 10.00
5-2
1222945400020
ref: 5-2
METAL CRANKSHAFT
1222945400020
€ 10.00
5-3
1222945400030
ref: 5-3
METAL CRANKSHAFT
1222945400030
€ 10.00
5-4
1222945400040
ref: 5-4
METAL CRANKSHAFT
1222945400040
€ 9.00
5-5
1222945400025
ref: 5-5
OPT
BEARING,CRANKSHAFT(US:0.25)
1222945400025
€ 11.50
5-6
1222945400050
ref: 5-6
OPT
BEARING,CRANKSHAFT(US:0.5)
1222945400050
€ 10.50
6-1
1222945410010
ref: 6-1
METAL CRANKSHAFT
1222945410010
€ 12.00
6-2
1222945410020
ref: 6-2
METAL CRANKSHAFT
1222945410020
€ 12.50
6-3
1222945410030
ref: 6-3
METAL CRANKSHAFT
1222945410030
€ 12.00
6-4
1222945410040
ref: 6-4
METAL CRANKSHAFT
1222945410040
€ 11.50
6-5
1222945410025
ref: 6-5
OPT
METAL CRANKSHAFT
1222945410025
€ 11.50
6-6
1222945410050
ref: 6-6
OPT
METAL CRANKSHAFT
1222945410050
€ 10.50
7
0928330031
ref: 7
OIL SEAL
0928330031
€ 15.00
8-1
1211134203
ref: 8-1
PISTON
1211134203
€ 53.50
8-2
1211134203050
ref: 8-2
OPT
PISTON
€ 127.50
8-3
1211134203100
ref: 8-3
OPT
PISTON
€ 109.50
9-1
1214034211
ref: 9-1
RING SET,PISTON
1214034211
€ 50.00
9-2
1214034211050
ref: 9-2
OPT
RING SET,PISTON (OS:0.5)
€ 44.00
9-3
1214034211100
ref: 9-3
OPT
RING SET,PISTON (OS:1.0)
€ 34.50
10
1215167001
ref: 10
PIN,PISTON
1215167001
€ 10.00
11
0938116002
ref: 11
CIRCLIP
0938116002
€ 1.50
