MUFFLER

GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

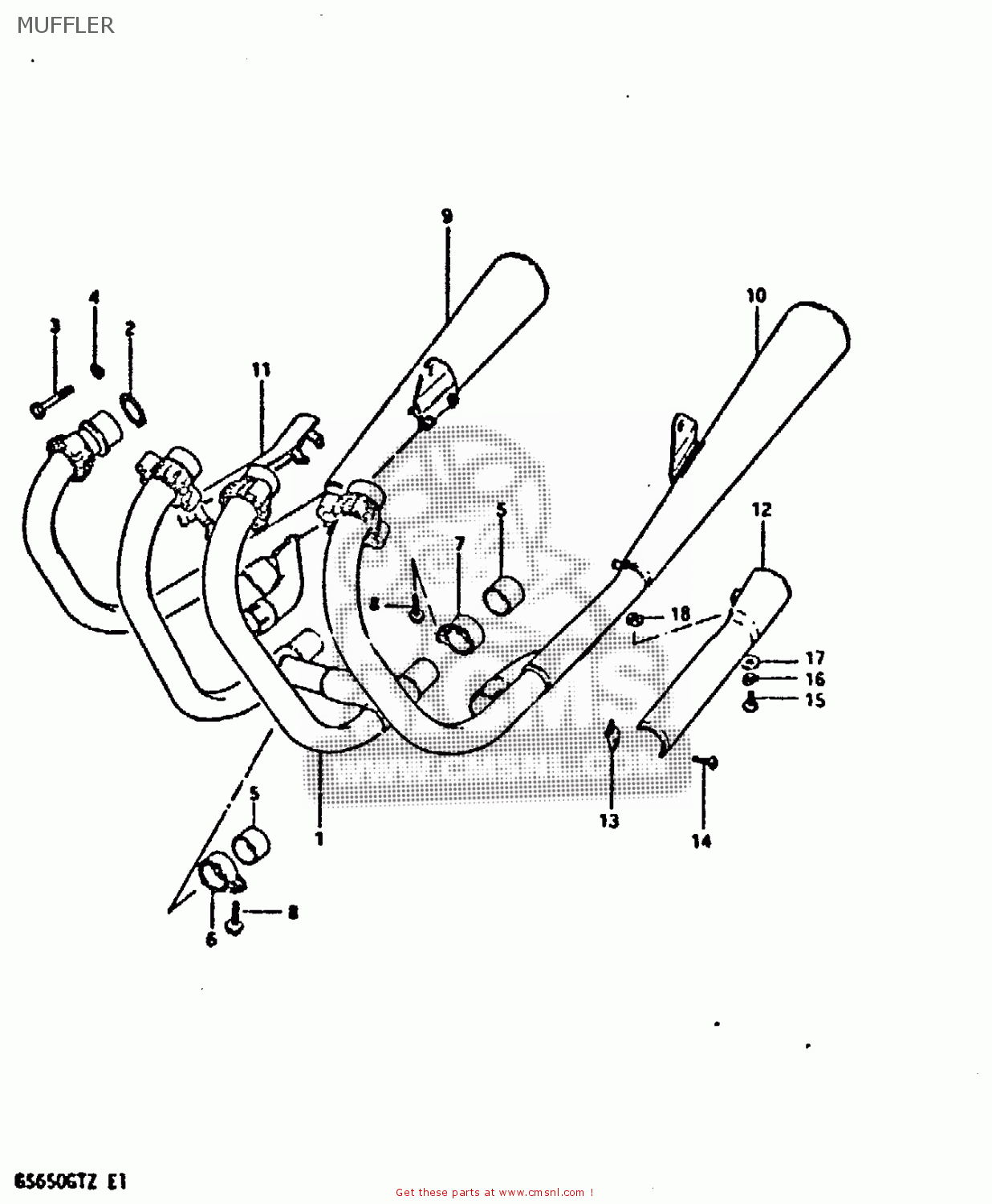

Muffler diagram GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

MUFFLER GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

MUFFLER GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

prices are in EUR

ref

part #

description

quantity

1

1410034200
ref: 1

PIPE,EXHAUST CTR

€ 214.00

2

1418105020
ref: 2
FROM 14181-05010

GASKET,EXHAUST PIPE (NAS)

€ 6.50

3

0110708408
ref: 3

BOLT 8X40

€ 3.00

4

0832121088
ref: 4

LOCK WASHER

€ 2.00

5

1477147020
ref: 5

CONNECTOR,MUFFLER

€ 35.00

6

1445934200
ref: 6

CLAMP,MUFFLER CONNECTOR,R

€ 13.00

7

1446934200
ref: 7

CLAMP,MUFFLER CONNECTOR,L

€ 13.00

8

0151708258
ref: 8

BOLT

€ 2.50

9-1

1430134201
ref: 9-1

MUFFLER ASSEMBLY

€ 306.00

9-2

NOTUSED
ref: 9-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

10-1

1430234201
ref: 10-1

MUFFLER ASSEMBLY

€ 289.00

10-2

NOTUSED
ref: 10-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

11

1478034201
ref: 11

COVER,MUFFLER,RIGHT

€ 36.00

12

1479034201
ref: 12

COVER,MUFFLER,LEFT

€ 33.00

13

1478534200
ref: 13

CLAMP,MUFFLER COVER

€ 8.00

14

0211205208
ref: 14

SCREW 5X20

€ 3.00

15

0211206128
ref: 15

SCREW 6X12

€ 2.00

16

0832121068
ref: 16

LOCK WASHER

€ 2.50

17

0832221068
ref: 17

WASHER

€ 2.00

18

0916806005
ref: 18

GASKET 6.2X12X1.5 (MCA)

€ 2.00
