MASTER CYLINDER (MODEL X)

GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

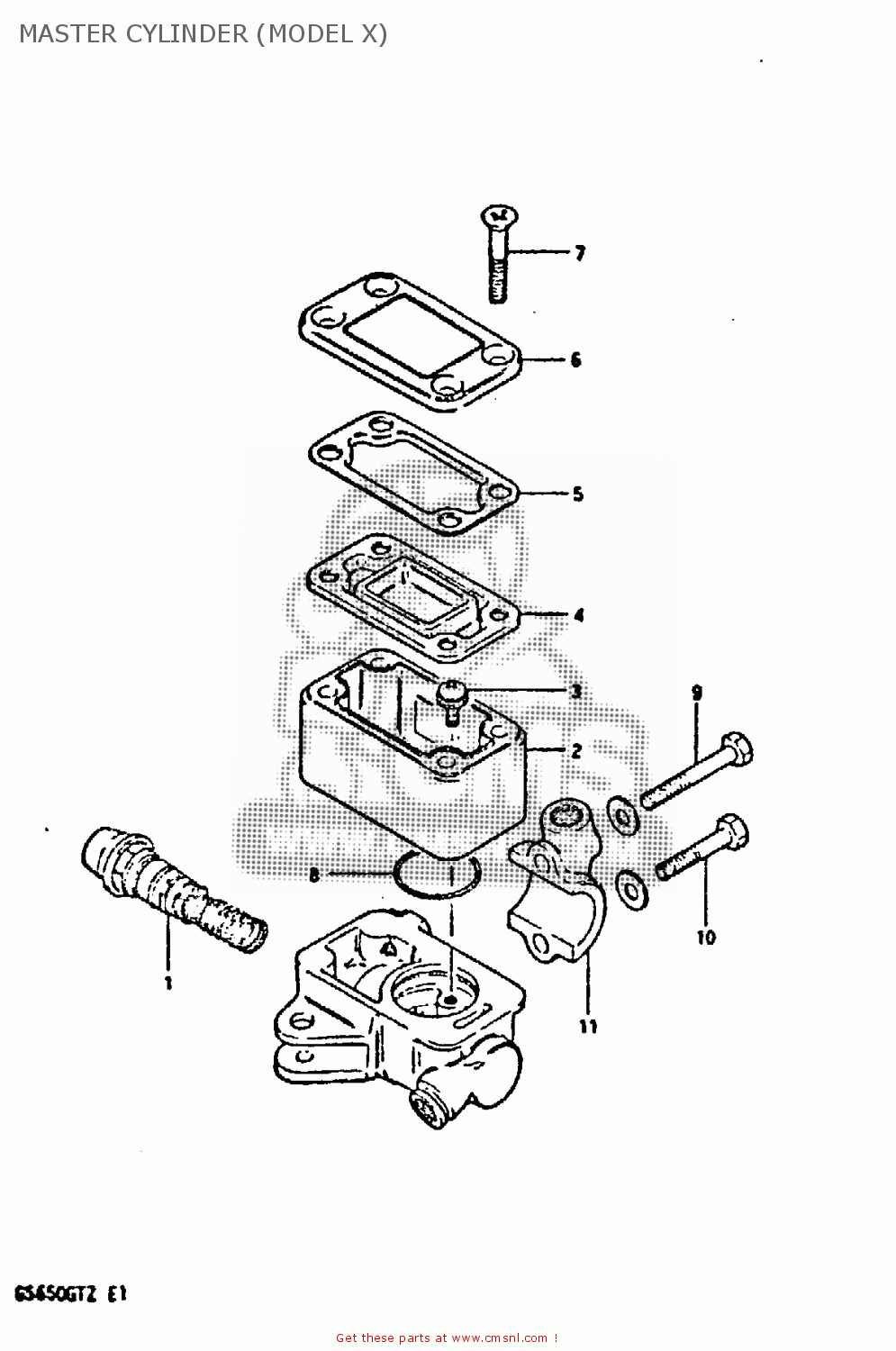

Master cylinder (model x) diagram GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

prices are in EUR

ref

part #

description

quantity

5960049001
ref: 0

CYLINDER ASSEMBLY,MASTER

€ 230.50

5960049810
ref: 1

PISTON & CUP SET

€ 48.50

5968749000
ref: 2

RESERVOIR

€ 24.00

5968849000
ref: 3

SCREW,MASTER C

€ 1.00

5966749000
ref: 4

DIAPHRAGM

€ 19.50

5966849000
ref: 5

PLATE,DIAPHRAGM

€ 7.00

5966949000
ref: 6

CAP

€ 25.00

5969149000
ref: 7

SCREW

€ 4.50

5968649000
ref: 8

O RING

€ 6.50

5969449001
ref: 9

BOLT,MASTER CYLINDER H

€ 3.00

5969349001
ref: 10

BOLT,MASTER CYLINDER H

€ 4.00

5967149000
ref: 11

HOLDER

€ 22.50
