FOOTREST (MODEL X)

GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

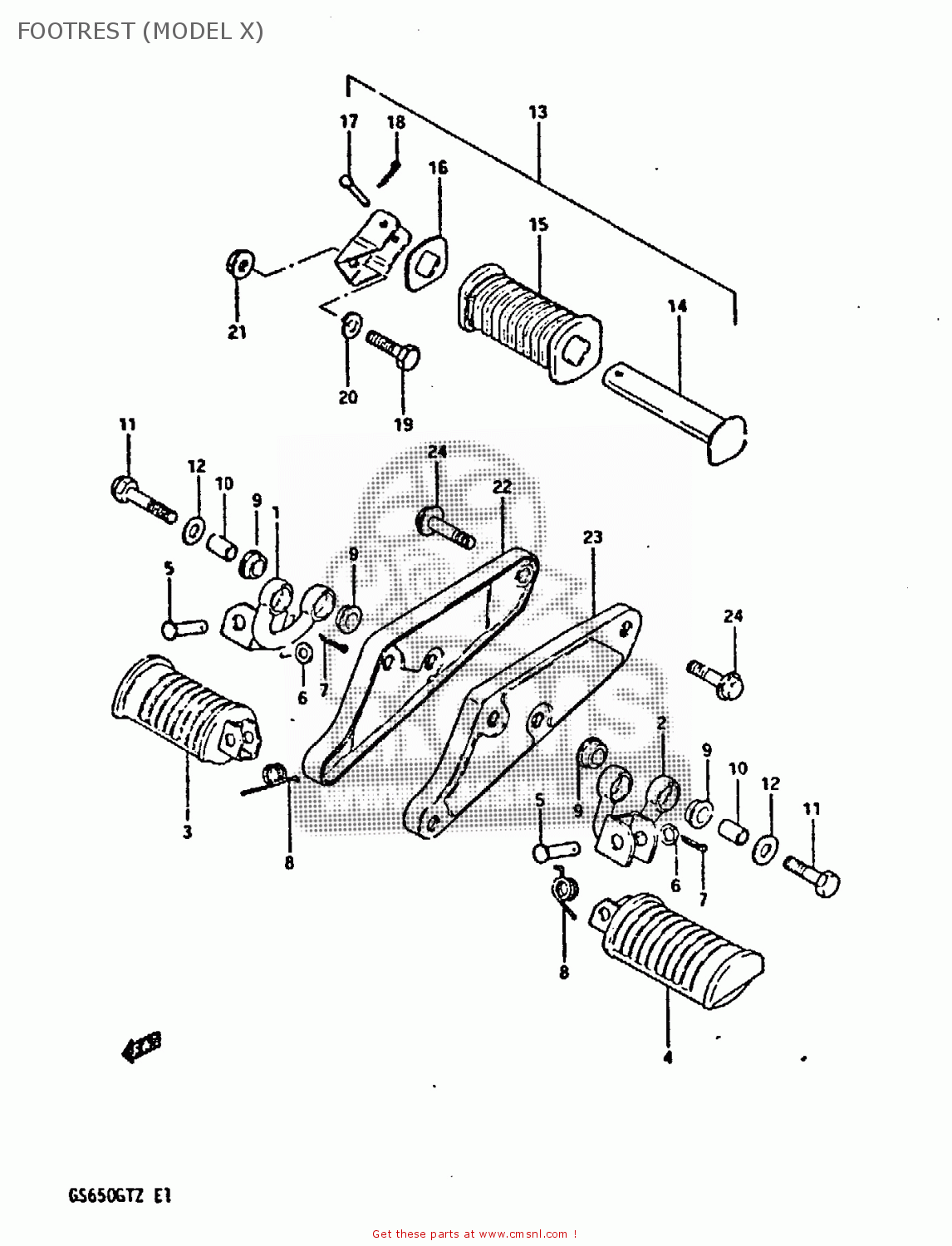

Footrest (model x) diagram GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

FOOTREST (MODEL X) GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
FOOTREST (MODEL X) GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
FOOTREST (MODEL X) GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
prices are in EUR
ref
part #
description
quantity
1
4351034200
ref: 1
BAR,FRONT FOOTREST
4351034200
€ 17.00
2
4352034200
ref: 2
BAR,FRONT FOOTREST,LEFT
4352034200
€ 52.00
3
4355037301
ref: 3
RUBBER,PILLION FOOTREST,R
4355037301
€ 22.50
4
4356037301
ref: 4
RUBBER,PILLION FOOTREST,L
4356037301
€ 22.50
5
0920008002
ref: 5
PIN
0920008002
€ 2.00
6
0832211088
ref: 6
WASHER
0832211088
€ 2.00
7
0411120158
ref: 7
PIN
0411120158
€ 1.50
8
0944814012
ref: 8
SPRING
0944814012
€ 3.00
9
0930514004
ref: 9
BUSH
0930514004
€ 6.00
10
0918010066
ref: 10
SPACER (10.2X14X20)
0918010066
€ 3.50
11
0910410007
ref: 11
BOLT
0910410007
€ 3.50
12
0916010035
ref: 12
WASHER(10.5X28X2.3)
0916010035
€ 2.00
13-1
4360034500
ref: 13-1
FOOTREST ASSY,PILLION,R
4360034500
€ 118.00
13-2
4370034500
ref: 13-2
FOOTREST ASSY,PILLION,L
4370034500
€ 107.50
14-1
4361049201
ref: 14-1
BAR,REAR FOOTREST,RIGHT
4361049201
€ 8.00
14-2
4362049201
ref: 14-2
BAR,REAR FOOTREST,LEFT
4362049201
€ 23.00
15
4361249201
ref: 15
RUBBER,PILLION FOOTREST
4361249201
€ 30.50
16
4363149201
ref: 16
WASHER,FOOTREST RUBBER
€ 16.00
17
0920006010
ref: 17
PIN
0920006010
€ 2.50
18
0411120158
ref: 18
PIN
0411120158
€ 1.50
19
0110710358
ref: 19
BOLT,M10X1.25X
0110710358
€ 2.50
20
0832121108
ref: 20
LOCK WASHER
0832121108
€ 2.00
21
0831616108
ref: 21
NUT
0831616108
€ 2.00
22
4381034200
ref: 22
BRACKET
€ 0.00
23
4382034200
ref: 23
BRACKET
€ 0.00
24
0152710207
ref: 24
BOLT
€ 3.00
