HEADLAMP (E2)

GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

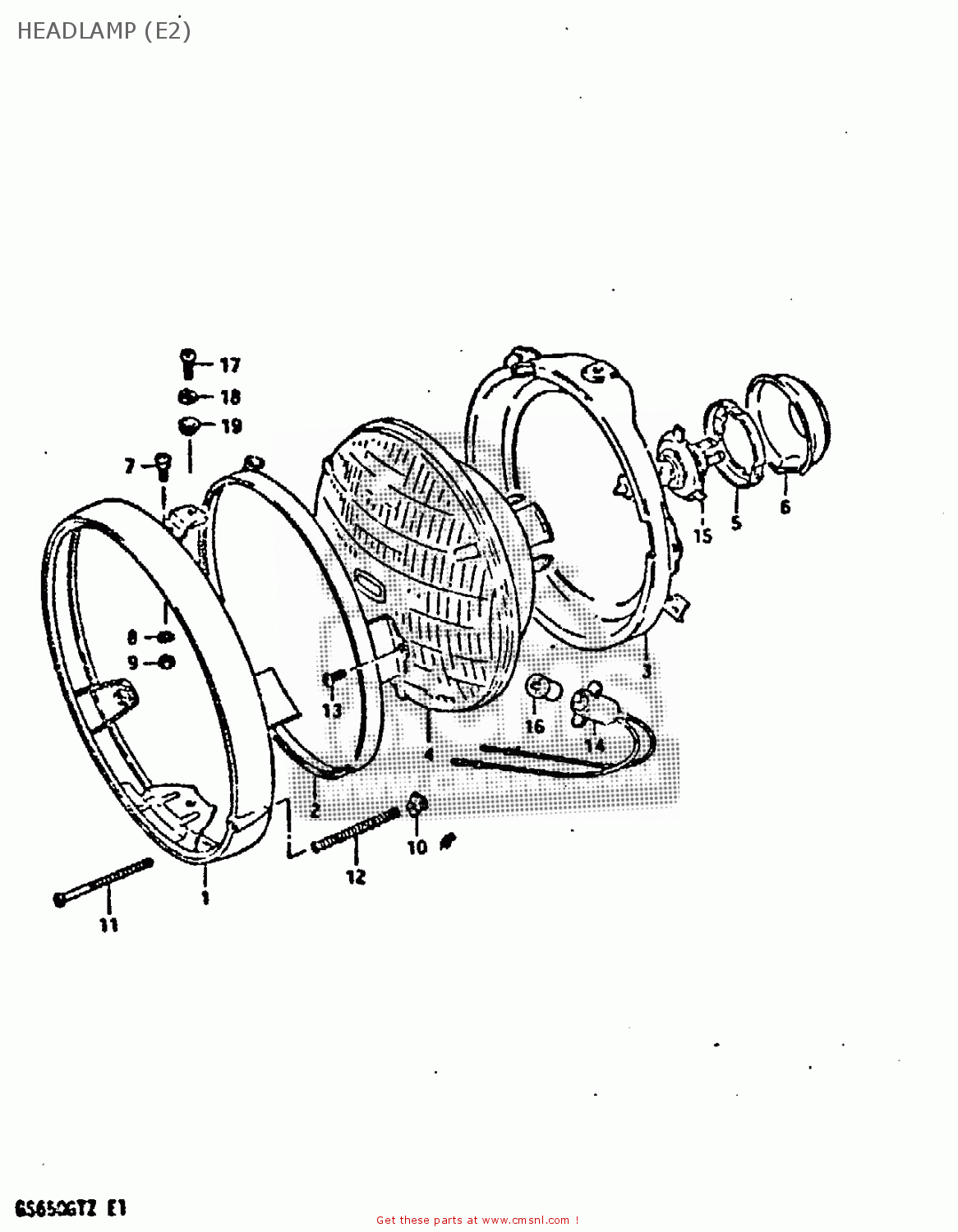

Headlamp (e2) diagram GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

HEADLAMP (E2) GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
HEADLAMP (E2) GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
HEADLAMP (E2) GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
prices are in EUR
ref
part #
description
quantity
0
3510045000999
ref: 0
MODEL X
HEADLAMP ASSY
€ 0.00
0
3510034420999
ref: 0
MODEL Z
HEADLAMP ASSY
€ 0.00
1
3511145030
ref: 1
RIM
3511145030
€ 53.50
2
3512745030
ref: 2
RETAINING RING
3512745030
€ 19.50
3
3513045030
ref: 3
RING
3513045030
€ 29.50
4-1
3512145000
ref: 4-1
MODEL X
UNIT
€ 0.00
4-2
3512134420
ref: 4-2
MODEL Z
UNIT
€ 0.00
5
3513634400
ref: 5
SETTING,BULB
3513634400
€ 4.50
6
3517345000
ref: 6
COVER,HEADLAMP SOCKET
3517345000
€ 14.50
7
3518115611
ref: 7
H/LAMP LENS UNIT FITING SCRE
3518115611
€ 3.00
8
0832121058
ref: 8
LOCK WASHER
0832121058
€ 2.00
9
0831011048
ref: 9
NUT
0831011048
€ 2.00
10
3515215611
ref: 10
NUT
3515215611
€ 3.50
11
3515145030
ref: 11
SCREW,HEADLAMP ADJUST
3515145030
€ 4.00
12
3515431900
ref: 12
SPRING,ADJUSTING
3515431900
€ 3.50
13
0211204088
ref: 13
SCREW
€ 1.50
14
3611828660
ref: 14
SOCKET
3611828660
€ 11.50
15
0947112060
ref: 15
EXECUTED LOCALLY
BULB(12V60/55W,H4)
0947112060
€ 8.00
16
0947112032
ref: 16
EXECUTED LOCALLY
BULB
€ 6.00
17
0912505022
ref: 17
SCREW
0912505022
€ 3.50
18
0916205003
ref: 18
WASHER,LOCK
0916205003
€ 2.00
19
0916906021
ref: 19
WASHER
0916906021
€ 2.50
