CAM CHAIN

GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

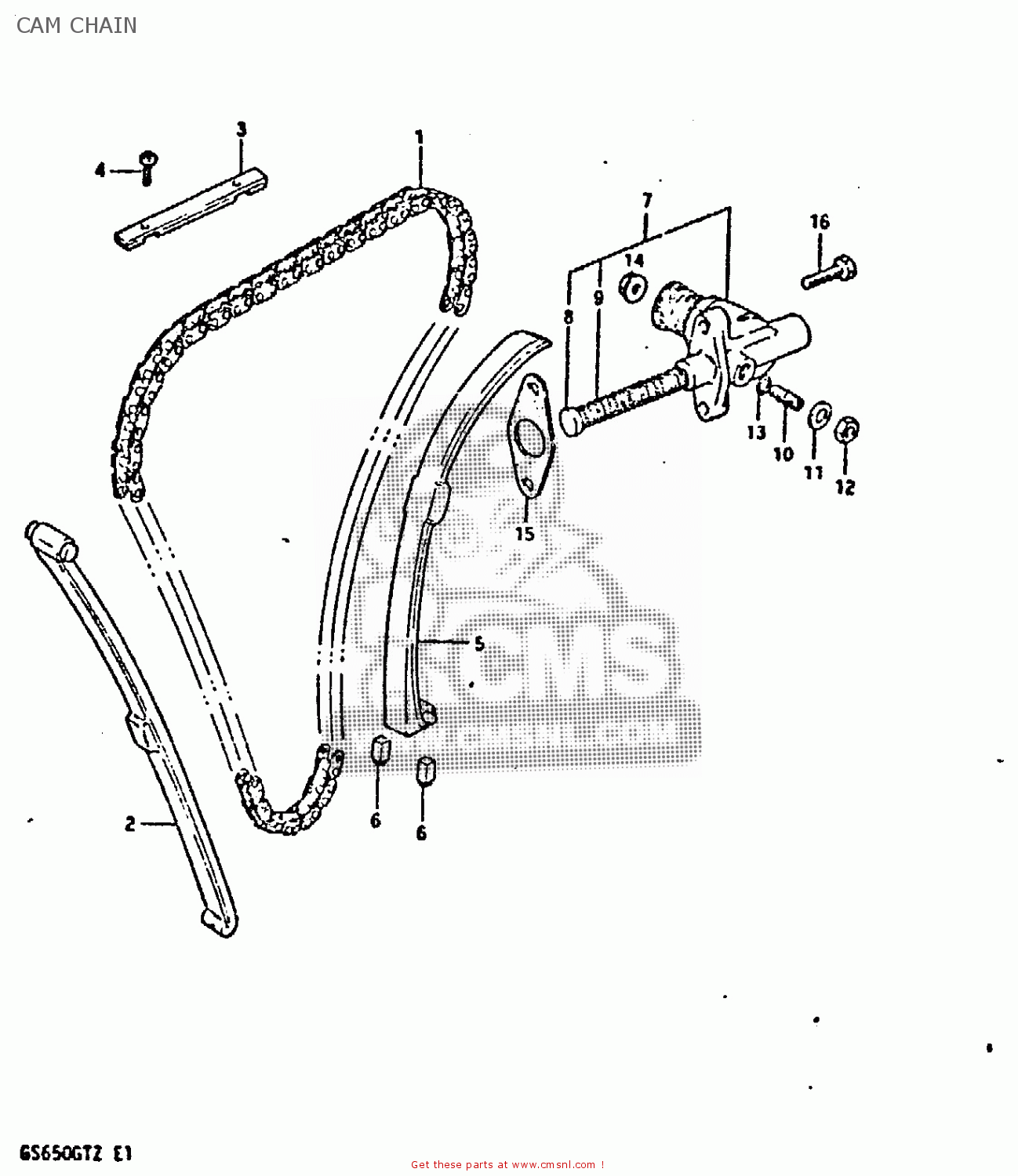

Cam chain diagram GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

CAM CHAIN GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
CAM CHAIN GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
CAM CHAIN GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
prices are in EUR
ref
part #
description
quantity
1
1276045040
ref: 1
CHAIN,CAMSHAFT DRIVE(120L)
1276045040
€ 112.00
2
1277134200
ref: 2
GUIDE,CAM CHAIN
1277134200
€ 35.00
3
1278249140
ref: 3
GUIDE,CAM CHAIN
1278249140
€ 37.50
4
0211205108
ref: 4
SCREW
0211205108
€ 2.00
5
1281034200
ref: 5
TO 12810-34201
TENSIONER,CAM CHAIN
1281034200
€ 60.00
6
1281444101
ref: 6
CUSHION,CAM CHAIN TENSIONER
1281444101
€ 8.50
7
1283047001
ref: 7
ADJUSTER ASSEMBLY,TENSIONER
1283047001
€ 167.00
8
1283347001
ref: 8
ROD,PUSH
1283347001
€ 25.00
9
0944012017
ref: 9
SPRING
0944012017
€ 2.50
10
1283845001
ref: 10
SCREW
1283845001
€ 6.00
11
0832211088
ref: 11
WASHER
0832211088
€ 2.00
12
0831012088
ref: 12
NUT
0831012088
€ 2.00
13
0928006003
ref: 13
O-RING
0928006003
€ 2.50
14-1
0915906017
ref: 14-1
MODEL X
NUT
0915906017
€ 2.50
14-2
0831616068
ref: 14-2
MODEL Z
NUT
0831616068
€ 2.50
15
1283747000
ref: 15
GASKET,TENSIONER ADJUSTER (MCA)
1283747000
€ 7.50
16
0912806024
ref: 16
SCREW (6X25)
0912806024
€ 2.50
