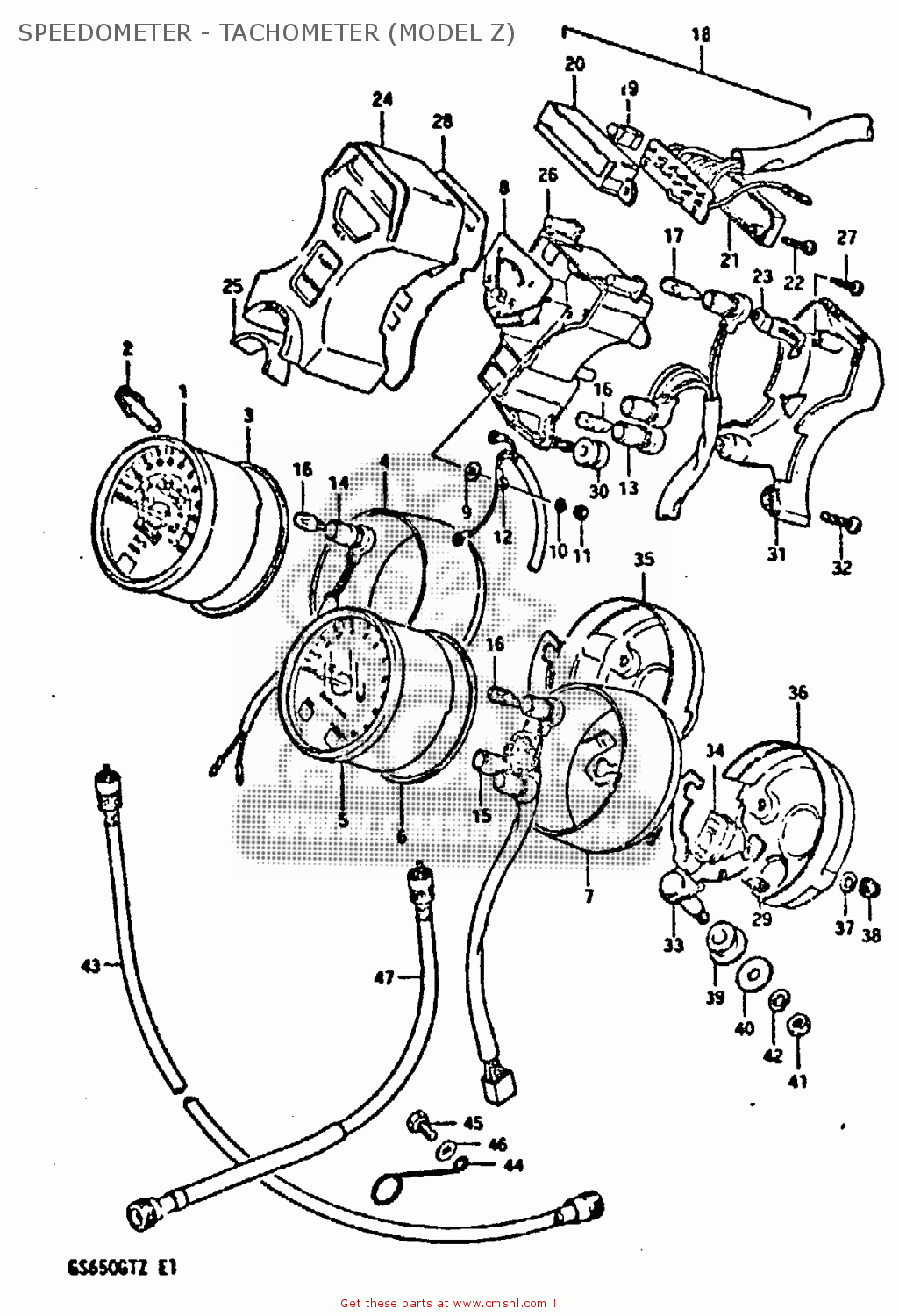

SPEEDOMETER - TACHOMETER (MODEL Z) - GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

ref

part #

description

quantity

1-1

3411034580
ref: 1-1
MILE & KILO SCALE

SPEEDOMETER (MILE/KILO)

€ 0.00

1-2

NOTUSED
ref: 1-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-3

NOTUSED
ref: 1-3

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2

3498045020
ref: 2

KNOB

€ 4.50

3

3418933220
ref: 3

CUSHION,SPEEDOMETER

€ 10.00

4

3415133220
ref: 4

COVER,SPEEDOMETER

€ 15.00

5

3421034560
ref: 5

TACHOMETER

€ 392.00

6

3418933220
ref: 6

CUSHION,SPEEDOMETER

€ 10.00

7

3425133220
ref: 7

COVER,TACHOMETER

€ 15.50

8

3432033220
ref: 8

METER,FUEL

€ 90.50

9

3438433220
ref: 9

WASHER,FUEL METER

€ 2.00

10

0832121038
ref: 10

LOCK WASHER

€ 1.50

11

0831011038
ref: 11

NUT 3MM

€ 2.00

12

3437833220
ref: 12

LEAD WIRE, FUELMETER

€ 23.00

13-1

3632534560
ref: 13-1

SOCKET

€ 0.00

13-2

NOTUSED
ref: 13-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

14-1

3417334560
ref: 14-1

SOCKET,METER

€ 0.00

14-2

NOTUSED
ref: 14-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

15

3427333220
ref: 15

SOCKET,TACHOMETER

€ 30.00

16

0947112028
ref: 16

BULB(12V3.4W,T10)

€ 3.50

17

0947112077
ref: 17

BULB(12V1.7W,T10,WB121)

€ 1.00

18

3645045101
ref: 18

INDICATOR ASSEMBLY,GEAR POSITION

€ 117.00

19

0947112071
ref: 19

BULB(14V1.12W)

€ 5.00

20

3645245100
ref: 20

CASE,GEAR INDICATOR

€ 14.50

21

3645445100
ref: 21

COVER,LWR

€ 7.00

22

3645645100
ref: 22

SCREW,GEAR INDICATOR

€ 2.00

23

3649433220
ref: 23

CLAMP,CORD

€ 3.00

24

3638133220
ref: 24

CASE,PILOT BOX

€ 82.00

25

3499347000
ref: 25

SEAL,IGNITION SWITCH

€ 3.00

26

3638233220
ref: 26

CASE,PILOT BOX,INNER

€ 39.00

27

3645633220
ref: 27

SCREW,INDICATOR

€ 1.50

28

3638633220
ref: 28

PLATE,PILOT BOX

€ 18.50

29

3419144310
ref: 29

CUSHION

€ 3.00

30

3638445300
ref: 30

CUSHION,PILOT BOX

€ 3.50

31

3638333220
ref: 31

COVER,PILOT BOX,UNDER

€ 25.00

32

0211204168
ref: 32

SCREW

€ 1.00

33

3495047450
ref: 33

BRACKET,COMBINATION METER

€ 41.00

34

3418944310
ref: 34

CUSHION,METER

€ 2.50

35

3419333220
ref: 35

COVER,METER,UNDER

€ 37.50

36

3429333220
ref: 36

PLATE,TACHOMETER UNDER

€ 39.50

37

0832221058
ref: 37

WASHER

€ 2.50

38

0831311057
ref: 38

NUT

€ 1.50

39

3495631001
ref: 39

CUSHION,METER BRACKET

€ 4.50

40

0916008002
ref: 40

WASHER (8.5X29X1.6)

€ 2.00

41

0831012088
ref: 41

NUT

€ 2.00

42

0832121088
ref: 42

LOCK WASHER

€ 2.00

43

3491047311
ref: 43

CABLE ASSEMBLY,SPEEDOMETER

€ 27.50

44

3493845100
ref: 44

CLAMP,SPEEDOMETER CABLE

€ 14.50

45

0110706168
ref: 45

BOLT, UPPER

€ 3.00

46

0832221068
ref: 46

WASHER

€ 2.00

47

3494047032
ref: 47

CABLE ASSEMBLY,TACHOMETER

€ 20.50

SPEEDOMETER - TACHOMETER (MODEL Z)
