TRANSMISSION

GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

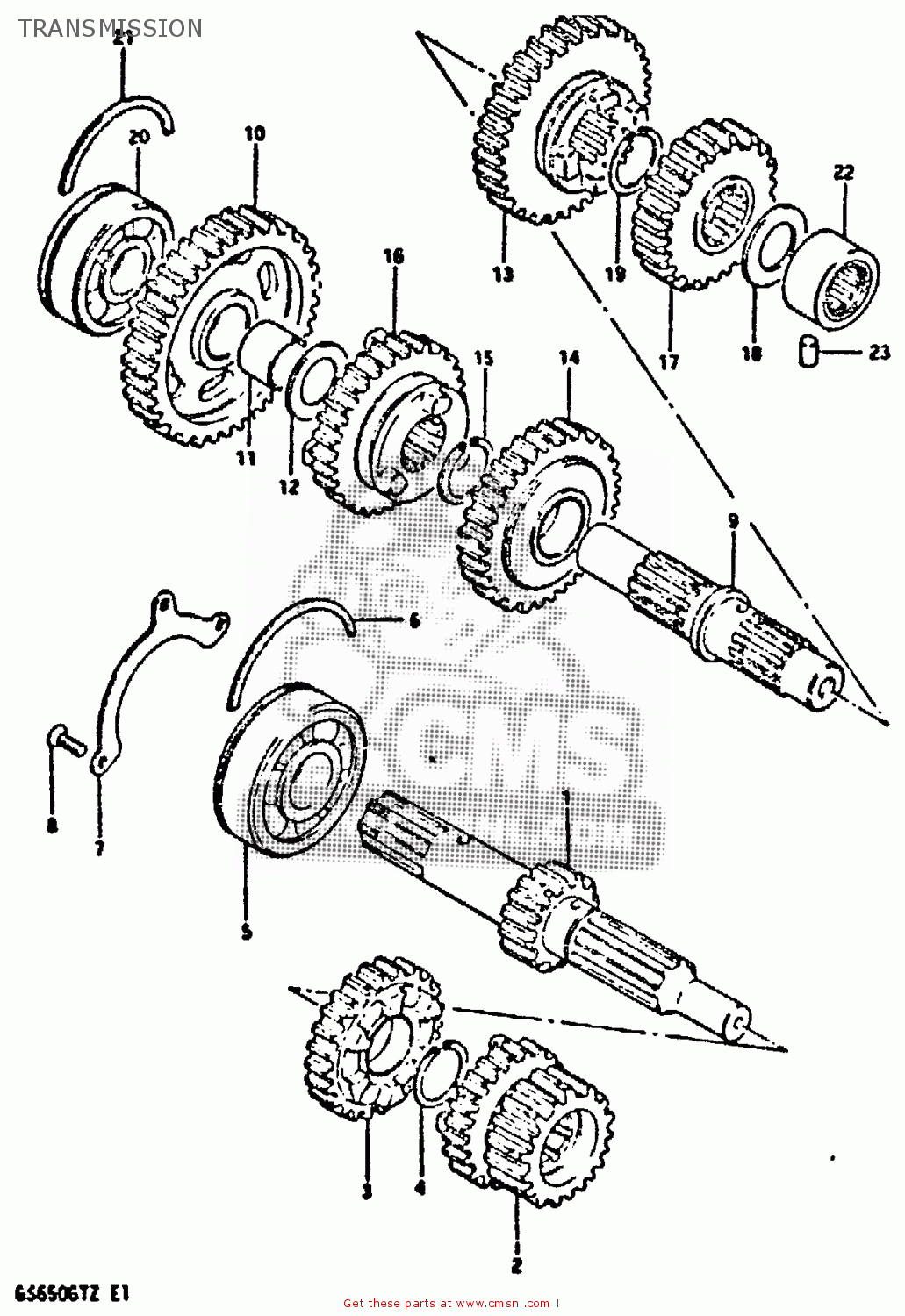

Transmission diagram GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

TRANSMISSION GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

TRANSMISSION GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

prices are in EUR

ref

part #

description

quantity

1

2412134201
ref: 1

SHAFT,COUNTER

€ 139.00

2

2422134200
ref: 2

GEAR,SECOND DRIVE

€ 118.50

3

2424034200
ref: 3

GEAR,FOURTH DRIVE

€ 86.50

4

0938025010
ref: 4

CIRCLIP

€ 3.00

5

0926225051
ref: 5

BEARING(25X62X17)

€ 59.50

6

0939062006
ref: 6

C-RING

€ 5.00

7

2474145000
ref: 7

RETAINER,CNTR SHAFT BEARING

€ 8.00

8

0212206168
ref: 8

SCREW

€ 2.00

9

2413134200
ref: 9

SHAFT,DRIVE

€ 118.50

10

2431134200
ref: 10

GEAR,FIRST DRIVEN

€ 115.00

11

0930020023
ref: 11

BUSHING

€ 0.00

12

0821120323
ref: 12

WASHER

€ 2.50

13

2432034200
ref: 13

GEAR,SECOND DRIVEN

€ 71.00

14

2433034200
ref: 14

GEAR,THIRD DRIVEN

€ 69.50

15

0938025010
ref: 15

CIRCLIP

€ 3.00

16

2434134200
ref: 16

GEAR,FOURTH DRIVEN

€ 112.00

17

2435134200
ref: 17

GEAR,REDUCTION(NT:24)

€ 110.50

18

2435934200
ref: 18

THRUST WASHER,REDUCTION

€ 3.50

19

0938025010
ref: 19

CIRCLIP

€ 3.00

20

0926220055
ref: 20

BALL BEARING 20X47X14

€ 20.00

21

0939047003
ref: 21

C RING

€ 3.00

22

0926320038
ref: 22

BEARING(20X34X16)

€ 30.50

23

0422107129
ref: 23

PIN

€ 1.50
