FRONT WHEEL

GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

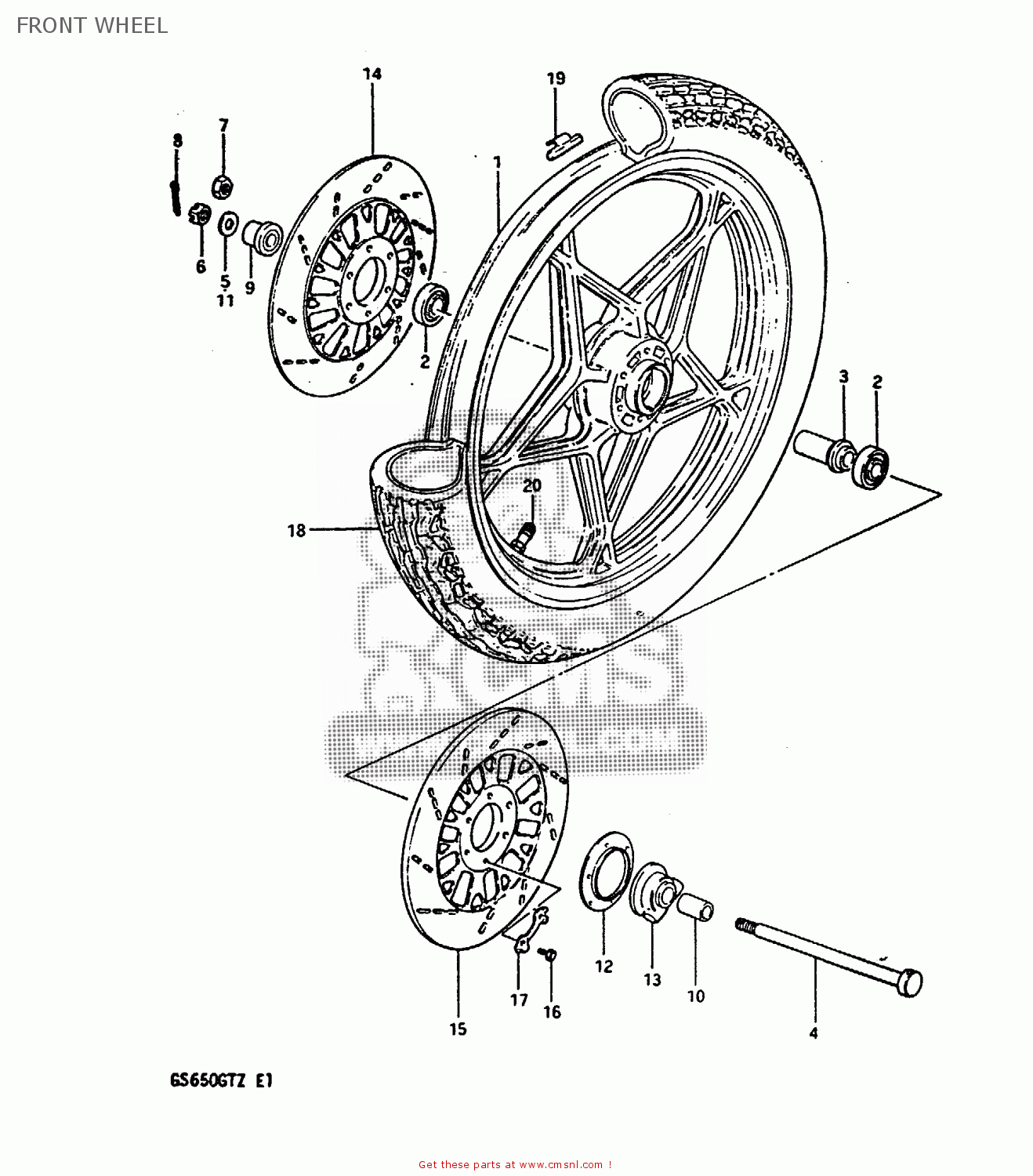

Front wheel diagram GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

FRONT WHEEL GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
FRONT WHEEL GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
FRONT WHEEL GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
prices are in EUR
ref
part #
description
quantity
1
541114510112U
ref: 1
MODEL X
CASTING WHEEL,FRONT 1.85
€ 547.00
1-1
5411145300291
ref: 1-1
MODEL Z
CASTING WHEEL,FRONT 1.85
€ 518.00
2
0812363027
ref: 2
BEARING
0812363027
€ 19.00
3
5473018400
ref: 3
SPACER,FR HUB BEARING
5473018400
€ 13.00
4
547113002
ref: 4
AXLE, FRONT
€ 0.00
5
NOTUSED
ref: 5
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
6
0831431128
ref: 6
NUT 12MM
0831431128
€ 2.00
7
NOTUSED
ref: 7
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
8
0411130308
ref: 8
COTTER PIN
0411130308
€ 1.50
9
5474018410
ref: 9
SPACER,FR HUB BEARING,R
5474018410
€ 17.00
10
0918015034
ref: 10
SPACER(15X22X30)
0918015034
€ 7.00
11
0832221128
ref: 11
WASHER
0832221128
€ 2.00
12
5487145010
ref: 12
DUST SEAL,SPEEDOMETER GEAR BOX
5487145010
€ 21.00
13
5460018401
ref: 13
BOX ASSEMBLY,SPEEDOMETER GEAR
5460018401
€ 90.50
14
5921145250
ref: 14
DISC,FR BRAKE,R
5921145250
€ 149.00
15
5922145250
ref: 15
DISC,FR BRAKE,L
5922145250
€ 149.00
16
0910008140
ref: 16
BOLT(8X25)
0910008140
€ 2.00
17
0916908016
ref: 17
WASHER
0916908016
€ 3.50
18
5510034330
ref: 18
BS
TIRE,FRONT
€ 0.00
19-1
5541145100
ref: 19-1
BALANCER,WHEEL
5541145100
€ 7.00
19-2
5541245100
ref: 19-2
BALANCER,WHEEL
5541245100
€ 4.00
20
5522045100
ref: 20
VALVE ASSEMBLY,WHEEL RIM,J
5522045100
€ 15.50
