REAR WHEEL

GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

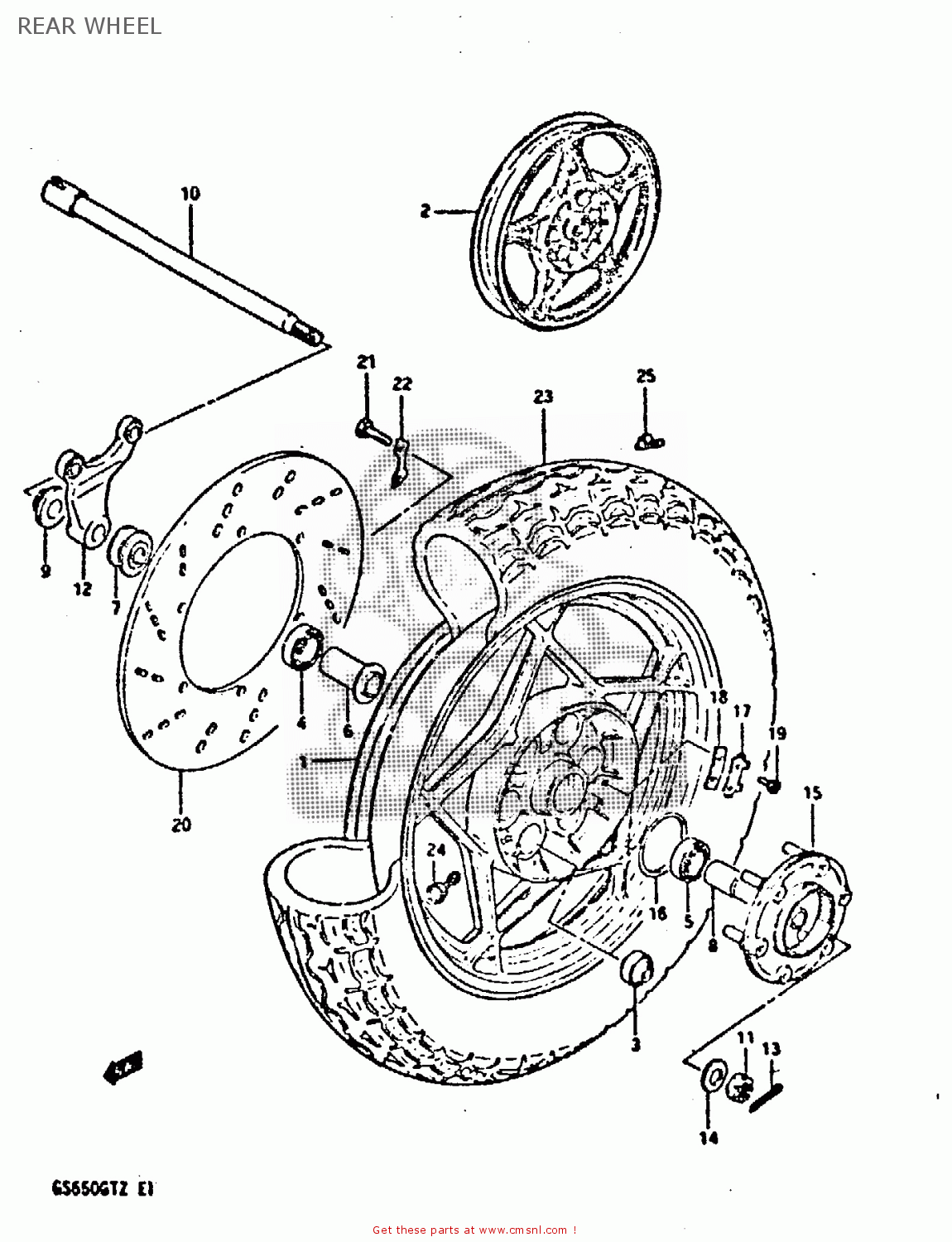

Rear wheel diagram GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

REAR WHEEL GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
REAR WHEEL GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
REAR WHEEL GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
prices are in EUR
ref
part #
description
quantity
1
6410034840
ref: 1
MODEL X
WHEEL SET,REAR
€ 223.50
2
6410049810291
ref: 2
MODEL Z
CASTING WHEEL,REAR 2.50
€ 559.00
3
0931012019
ref: 3
BUSHING
€ 0.00
4
0812363037
ref: 4
BEARING
0812363037
€ 16.00
5
0814363037
ref: 5
BEARING
0814363037
€ 23.00
6
6473034200
ref: 6
SPACER,REAR HUB BEARING
€ 0.00
7-1
6474047001
ref: 7-1
MODEL X
SPACER,REAR AXLE
6474047001
€ 12.50
7-2
6474047010
ref: 7-2
MODEL Z
SPACER,REAR AXLE
€ 11.50
8
6477234200
ref: 8
SPACER,REAR AXLE,LEFT
6477234200
€ 14.50
9
6474134300
ref: 9
SPACER,REAR AXLE,RIGHT
€ 6.50
10
6471134200
ref: 10
AXLE,REAR
€ 0.00
11-1
0914116001
ref: 11-1
NUT
0914116001
€ 6.50
11-2
NOTUSED
ref: 11-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
12
6972147001
ref: 12
BRACKET,RR,CALIPER
6972147001
€ 27.50
13
0411140308
ref: 13
PIN,COTTER
0411140308
€ 1.50
14
0916016025
ref: 14
WASHER(16.5X36X3.2)
0916016025
€ 2.50
15
6468045112
ref: 15
JOINT ASSEMBLY,REAR HUB DRUM
€ 181.50
16
0928065003
ref: 16
O RING(D:2.1,ID:65)
0928065003
€ 2.50
17-1
6467645114
ref: 17-1
MODEL X
WASHER (T:1.0)
€ 2.00
17-2
0916906030
ref: 17-2
MODEL Z
WASHER
0916906030
€ 2.00
18
6467745110
ref: 18
WASHER,THRUST(T:1.6)
6467745110
€ 2.50
19-1
0912806005
ref: 19-1
MODEL X
SCREW
0912806005
€ 2.50
19-2
0911906049
ref: 19-2
MODEL Z
BOLT(6X16)
0911906049
€ 1.50
20
6921134250
ref: 20
DISC,RR BRAKE
€ 716.00
21
0910008140
ref: 21
BOLT(8X25)
0910008140
€ 2.00
22
0916908027
ref: 22
WASHER
0916908027
€ 41.00
23
6510034330
ref: 23
BS
TIRE
€ 0.00
24
5522045100
ref: 24
VALVE ASSEMBLY,WHEEL RIM,J
5522045100
€ 15.50
25-1
5541145100
ref: 25-1
BALANCER,WHEEL
5541145100
€ 7.00
25-2
5541245100
ref: 25-2
BALANCER,WHEEL
5541245100
€ 4.00
