REAR FENDER

GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

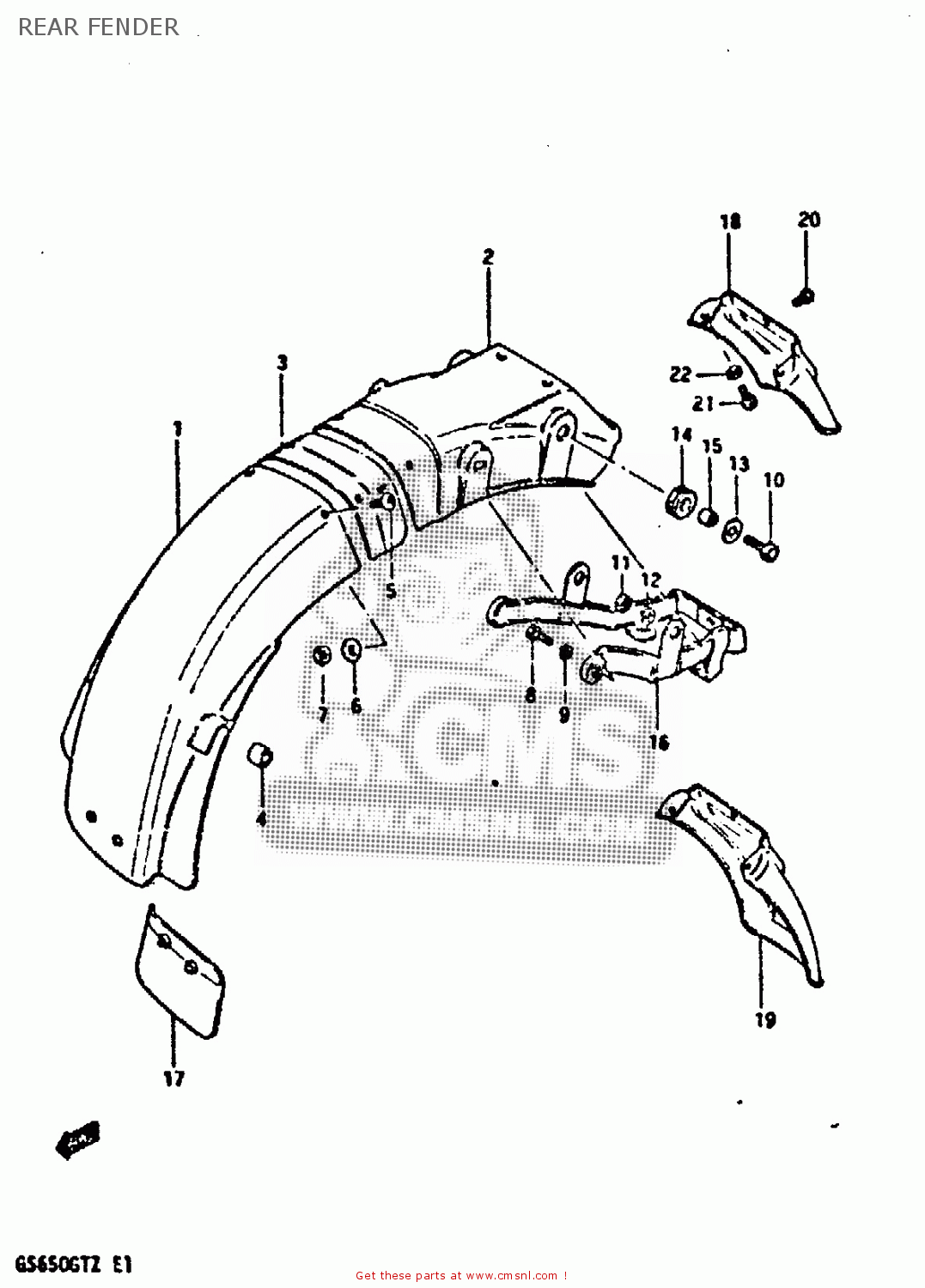

Rear fender diagram GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

REAR FENDER GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

REAR FENDER GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

prices are in EUR

ref

part #

description

quantity

1

6311234202
ref: 1

BODY,REAR FENDER,REAR

€ 49.00

2

6311334200
ref: 2

BODY,REAR FENDER,REAR

€ 62.50

3

6325534200
ref: 3

JOINT,REAR FENDER

€ 8.50

4

0932905003
ref: 4

CUSHION

€ 4.50

5

0214205125
ref: 5

SCREW M5X12 DIN 7985/N

€ 1.50

6

0916005017
ref: 6

WASHER (5.5X16X1.2)

€ 2.50

7

0831011058
ref: 7

NUT

€ 2.50

8

0110706168
ref: 8

BOLT, UPPER

€ 3.00

9

0832121068
ref: 9

LOCK WASHER

€ 2.50

10

0110708308
ref: 10

BOLT (8X30)

€ 2.50

11

0831012088
ref: 11

NUT

€ 2.00

12

0832121088
ref: 12

LOCK WASHER

€ 2.00

13

0832211088
ref: 13

WASHER

€ 2.00

14

0932012011
ref: 14

CUSHION

€ 3.00

15

0918008021
ref: 15

SPACER (8.2X12X7.5)

€ 3.00

16

6312034200
ref: 16

REINFORCEMENT,REAR FENDER

€ 33.50

17

6341131900
ref: 17

GUIDE,RR FENDER MUD

€ 8.00

18

6331134200
ref: 18

EXTENSION,RR FENDER

€ 13.50

19

NOTUSED
ref: 19

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

0

NOTUSED
ref: 0

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

20

0214206167
ref: 20

SCREW

€ 2.00

21

0110706168
ref: 21

BOLT, UPPER

€ 3.00

22

0916006027
ref: 22

WASHER (6.5X20X1.2)

€ 2.00
