Buy Suzuki GS Parts Online


FOOTREST (MODEL Z)

GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

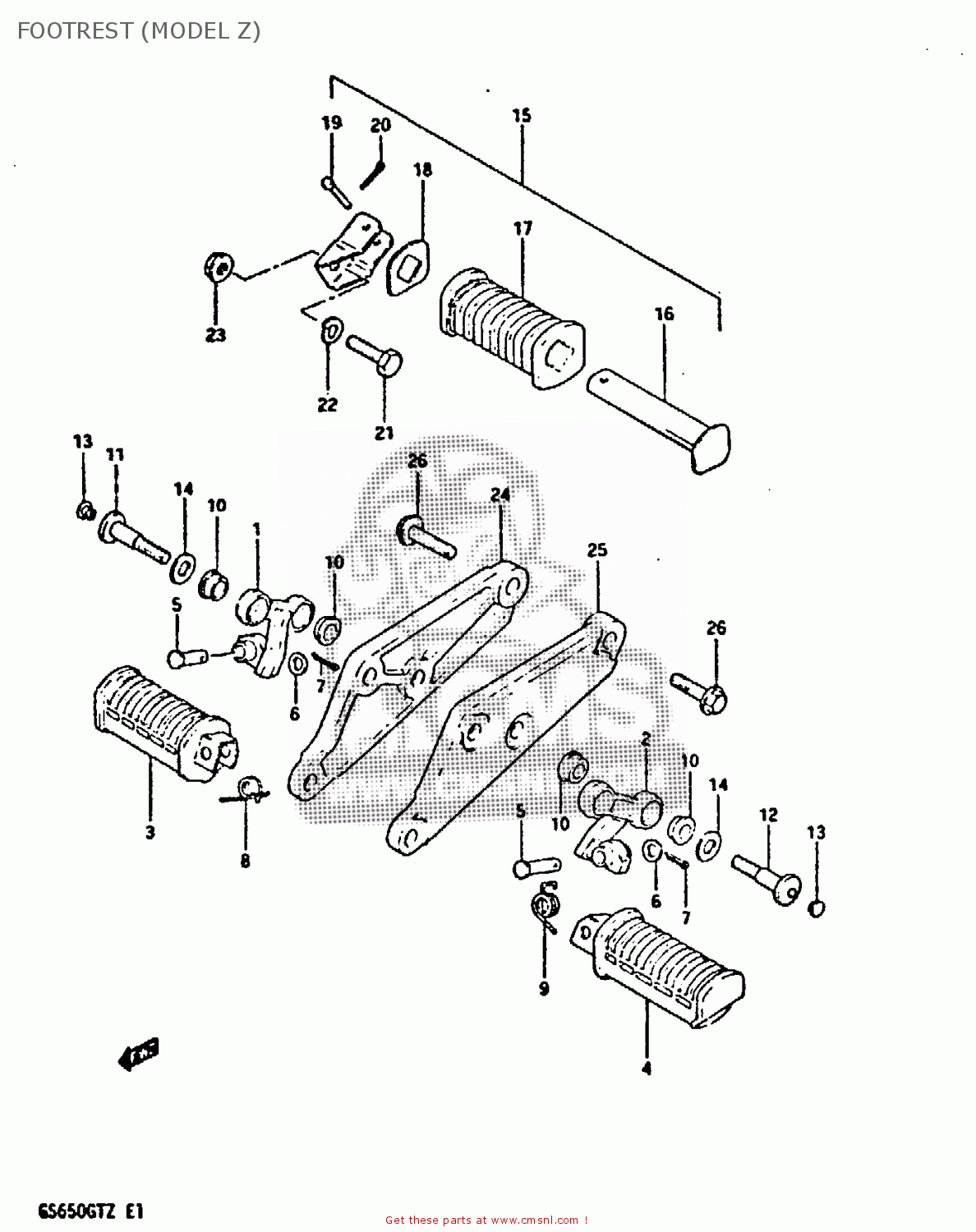

Footrest (model z) diagram GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

FOOTREST (MODEL Z) GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
FOOTREST (MODEL Z) GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
FOOTREST (MODEL Z) GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
prices are in EUR
ref
part #
description
quantity
1
4351034210
ref: 1
BAR,FRONT FOOTREST
€ 32.50
2
4352034210
ref: 2
BAR,FRONT FOOTREST,LEFT
€ 18.00
3
4355034500
ref: 3
RUBBER,FOOTREST
4355034500
€ 36.00
4
4356034500
ref: 4
FOOTREST
4356034500
€ 37.00
5
0920008002
ref: 5
PIN
0920008002
€ 2.00
6
0832211088
ref: 6
WASHER
0832211088
€ 2.00
7
0411120158
ref: 7
PIN
0411120158
€ 1.50
8
0944819014
ref: 8
SPRING
0944819014
€ 6.00
9
0944819015
ref: 9
SPRING
0944819015
€ 4.00
10
0930514004
ref: 10
BUSH
0930514004
€ 6.00
11
0910610004
ref: 11
BOLT
0910610004
€ 4.00
12
0910610005
ref: 12
BOLT
0910610005
€ 4.00
13
4357534500
ref: 13
CAP
4357534500
€ 1.50
14
0916010035
ref: 14
WASHER(10.5X28X2.3)
0916010035
€ 2.00
15-1
4360034500
ref: 15-1
FOOTREST ASSY,PILLION,R
4360034500
€ 118.00
15-2
4370034500
ref: 15-2
FOOTREST ASSY,PILLION,L
4370034500
€ 107.50
16-1
4361049201
ref: 16-1
BAR,REAR FOOTREST,RIGHT
4361049201
€ 8.00
16-2
4362049201
ref: 16-2
BAR,REAR FOOTREST,LEFT
4362049201
€ 23.00
17
4361249201
ref: 17
RUBBER,PILLION FOOTREST
4361249201
€ 30.50
18
4363149201
ref: 18
WASHER,FOOTREST RUBBER
€ 16.00
19
0920006010
ref: 19
PIN
0920006010
€ 2.50
20
0411120158
ref: 20
PIN
0411120158
€ 1.50
21
0110710358
ref: 21
BOLT,M10X1.25X
0110710358
€ 2.50
22
0832121108
ref: 22
LOCK WASHER
0832121108
€ 2.00
23
0831616108
ref: 23
NUT
0831616108
€ 2.00
24
4381134210
ref: 24
BRACKET,MUFFLER,RIGHT
€ 72.00
25
4382134210
ref: 25
BRACKET,MUFFLER,LEFT
€ 72.00
26
0152710258
ref: 26
BOLT
€ 3.00
