STEERING STEM (MODEL Z)

GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

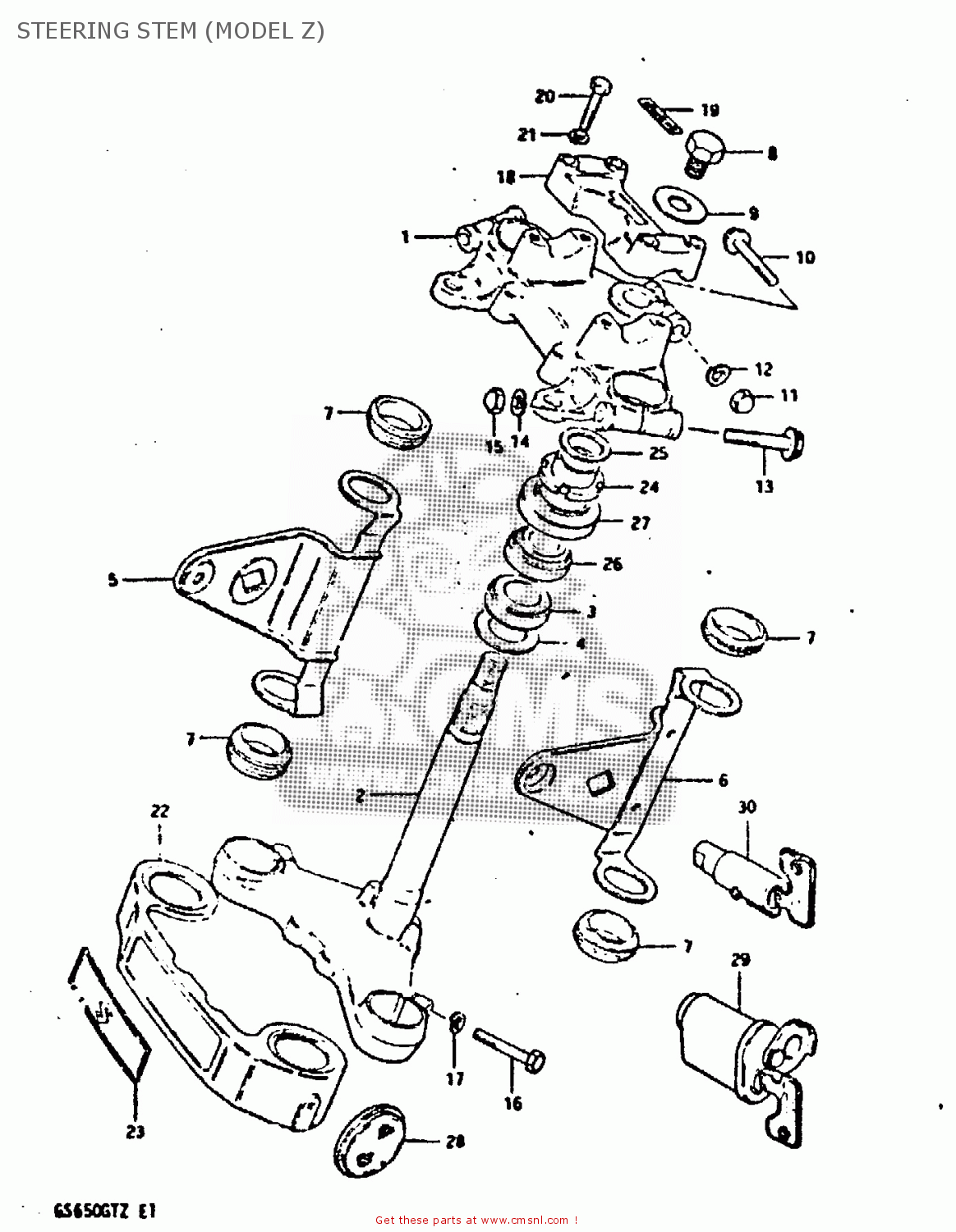

Steering stem (model z) diagram GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

STEERING STEM (MODEL Z) GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
STEERING STEM (MODEL Z) GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
STEERING STEM (MODEL Z) GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
prices are in EUR
ref
part #
description
quantity
1
5131134210291
ref: 1
STEM HEAD, STEERING (BLACK)
5131134210291
€ 87.50
2-1
5140134840
ref: 2-1
STEM, STEERING
€ 0.00
2-2
NOTUSED
ref: 2-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
3
0926530005
ref: 3
BEARING
0926530005
€ 49.50
4
0821130402
ref: 4
WASHER,THRUST
0821130402
€ 4.00
5
5153034200291
ref: 5
BRACKET,HEADLAMP,RIGHT
5153034200291
€ 57.50
6
5154034200291
ref: 6
BRACKET,HEADLAMP,LEFT
5154034200291
€ 43.00
7
5155334300
ref: 7
CUSHION,HEADLAMP BRACKET
5155334300
€ 4.50
8
0910412013
ref: 8
BOLT(12X20)
0910412013
€ 6.50
9
0916012006
ref: 9
WASHER
€ 2.00
10
0151708508
ref: 10
BOLT
0151708508
€ 3.50
11
0831311085
ref: 11
NUT,M8X1.25X12
€ 2.00
12
0832121088
ref: 12
LOCK WASHER
0832121088
€ 2.00
13
0151710558
ref: 13
BOLT 10X55
€ 3.00
14
0832131108
ref: 14
LOCK WASHER
€ 2.00
15
0914510002
ref: 15
NUT
0914510002
€ 4.00
16
0110710408
ref: 16
BOLT 10X40
0110710408
€ 3.00
17
0832121108
ref: 17
LOCK WASHER
0832121108
€ 2.00
18
5621145400291
ref: 18
HOLDER,HANDLEBAR
€ 25.50
19
5621245400
ref: 19
EMBLEM,HANDLE CLAMP
5621245400
€ 4.00
20
0120408357
ref: 20
BOLT
0120408357
€ 3.50
21
0832121088
ref: 21
LOCK WASHER
0832121088
€ 2.00
22
5187134501
ref: 22
COVER,FRONT FORK
5187134501
€ 34.00
23
6821134500
ref: 23
EMBLEM
€ 8.50
24
5163134200
ref: 24
NUT,STEERING STEM
5163134200
€ 23.00
25
0916018002
ref: 25
WASHER(18.5X24X1)
0916018002
€ 2.00
26
0926525008
ref: 26
TAPER,ROLLER BEARING
0926525008
€ 48.50
27
5164340502
ref: 27
DUST SEAL,STEERING UPR
5164340502
€ 8.00
28
3595043080
ref: 28
REFLEX REFLECTOR, FRONT
€ 0.00
29
NOTUSED
ref: 29
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
30
NOTUSED
ref: 30
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
