MASTER CYLINDER (MODEL Z)

GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

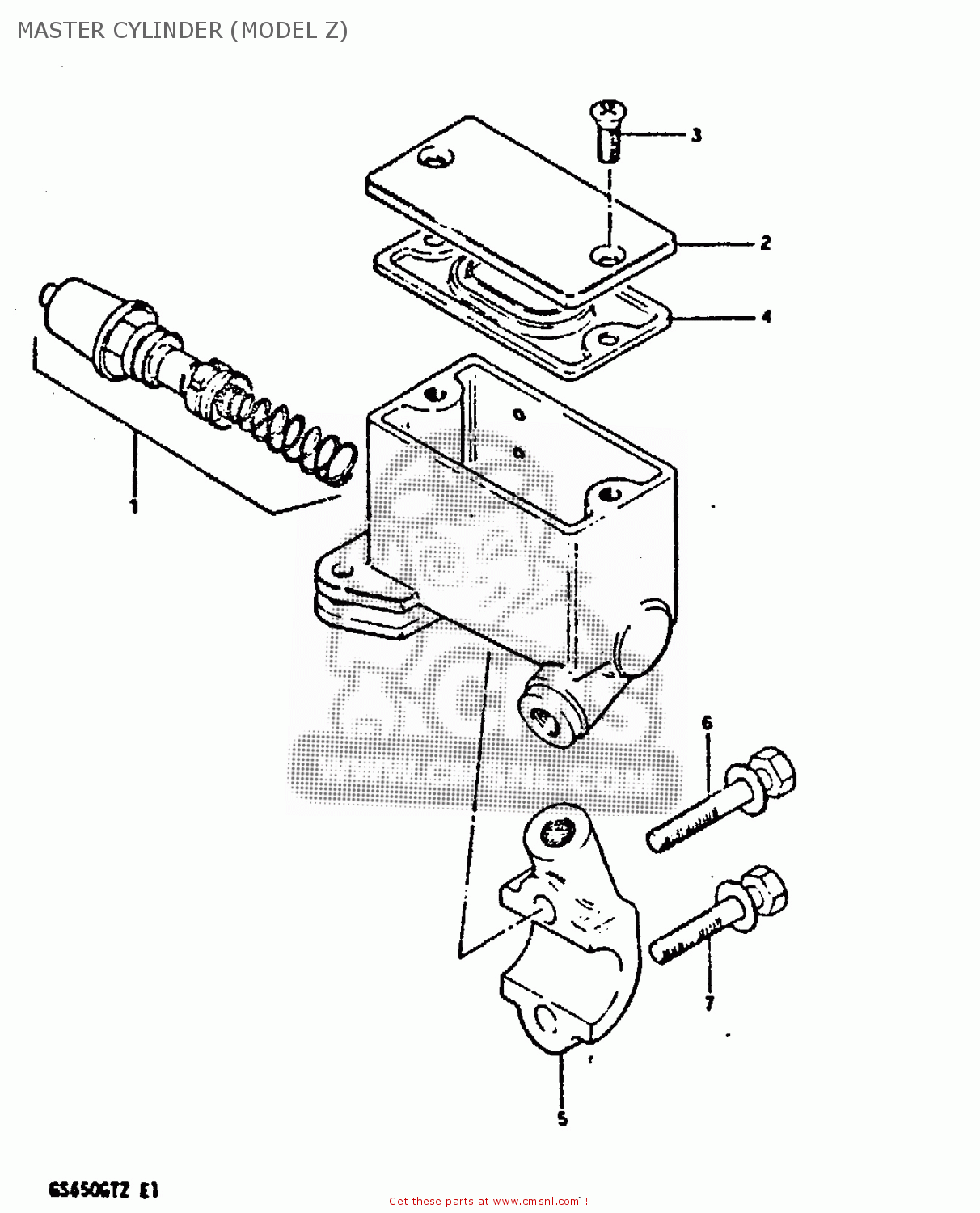

Master cylinder (model z) diagram GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

MASTER CYLINDER (MODEL Z) GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

MASTER CYLINDER (MODEL Z) GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

prices are in EUR

ref

part #

description

quantity

0

5960034200
ref: 0

CYLINDER ASSY, MASTER

€ 0.00

1

5960049810
ref: 1

PISTON & CUP SET

€ 48.50

2

5966949300
ref: 2

CAP

€ 23.50

3

5969149300
ref: 3

SCREW,RESERVOIR CAP

€ 6.50

4

5966749300
ref: 4

DIAPHRAGM,MASTER CYLINDER

€ 15.50

5

5967149000
ref: 5

HOLDER

€ 22.50

6

5969449001
ref: 6

BOLT,MASTER CYLINDER H

€ 3.00

7

5969549001
ref: 7

BOLT, LOWER

€ 4.00
