STAND

GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

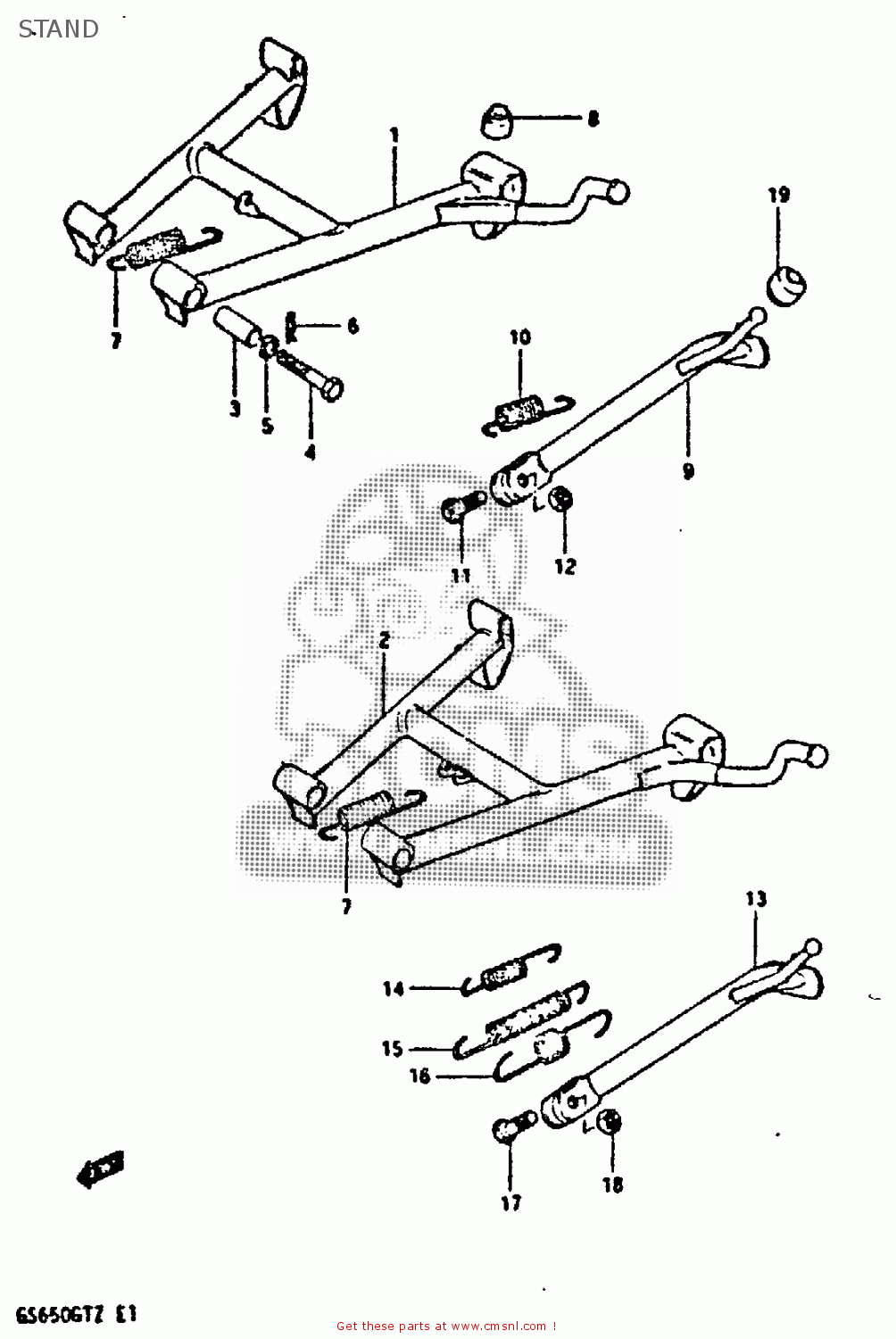

Stand diagram GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

STAND GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

STAND GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

prices are in EUR

ref

part #

description

quantity

1

4210034200
ref: 1

STAND,CENTER

€ 76.50

2

NOTUSED
ref: 2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

3

0918010040
ref: 3

SPACER(10X16X38.8)

€ 3.00

4

0910110018
ref: 4

BOLT

€ 5.50

5

0832121108
ref: 5

LOCK WASHER

€ 2.00

6

0938510001
ref: 6

CLIP

€ 1.50

7-1

0944318003
ref: 7-1

SPRING

€ 5.50

7-2

NOTUSED
ref: 7-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

8

0932110001
ref: 8

CUSHION

€ 2.50

9

4231034200
ref: 9

STAND,SIDE

€ 35.00

10-1

0944317005
ref: 10-1
MODEL X

SPRING

€ 11.50

10-2

0944317008
ref: 10-2
MODEL Z

SPRING

€ 11.50

11

0910010067
ref: 11

BOLT(10X30)

€ 3.50

12

0831022108
ref: 12

NUT

€ 2.50

13

NOTUSED
ref: 13

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

14

NOTUSED
ref: 14

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

15

NOTUSED
ref: 15

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

16

NOTUSED
ref: 16

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

17

NOTUSED
ref: 17

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

18

NOTUSED
ref: 18

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

19

0932007001
ref: 19

CUSHION

€ 4.00
