FRONT FORK

GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

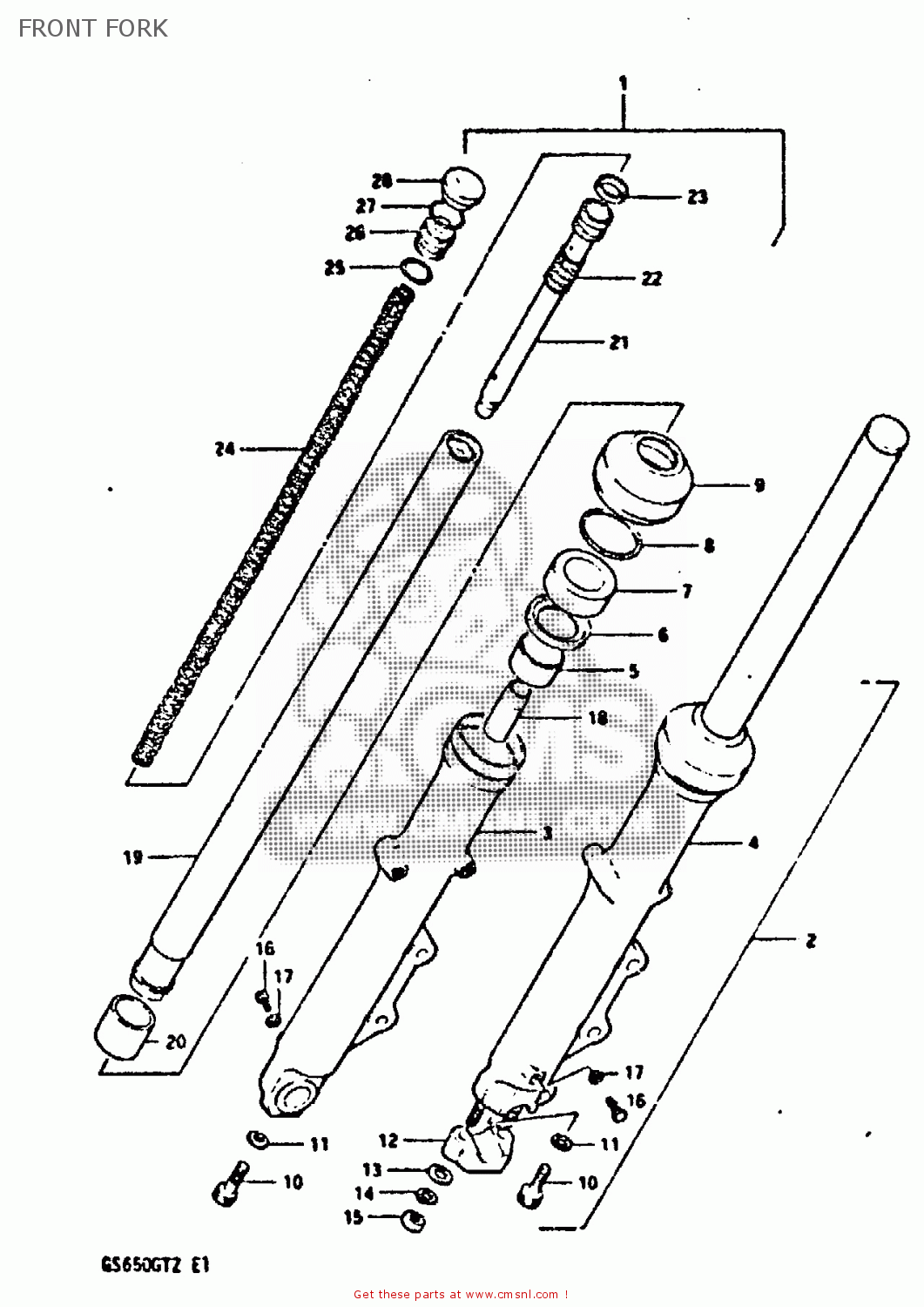

Front fork diagram GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

FRONT FORK GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
FRONT FORK GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
FRONT FORK GS650GT 1981 (X) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
prices are in EUR
ref
part #
description
quantity
1
5110334210
ref: 1
DAMPER ASSY, RH
€ 0.00
2
5110434210
ref: 2
DAMPER ASSY, LH
€ 0.00
3
5113034210
ref: 3
OUTER TUBE, RH
€ 0.00
4
5114034210
ref: 4
OUTER TUBE, LH
€ 188.00
5
5115234210
ref: 5
GUIDE,FORK INNER TUBE
5115234210
€ 17.50
6
5116834210
ref: 6
SPACER,SEAL
€ 5.50
7
5115334210
ref: 7
OIL SEAL,FRONT FORK
€ 15.00
8
5155634210
ref: 8
RING, STOPPER
€ 7.00
9
5157145200
ref: 9
BOOT
€ 20.50
10
5114748130
ref: 10
BOLT(8X27)
5114748130
€ 3.50
11
5114831030
ref: 11
GASKET (NAS)
5114831030
€ 4.00
12
5113231030
ref: 12
HOLDER,AXLE
5113231030
€ 31.50
13
0832221088
ref: 13
WASHER
0832221088
€ 2.00
14
0832121088
ref: 14
LOCK WASHER
0832121088
€ 2.00
15
0831012088
ref: 15
NUT
0831012088
€ 2.00
16
0910006011
ref: 16
BOLT(6X8)
0910006011
€ 2.50
17
5118331030
ref: 17
GASKET,DRAIN,PLUG (NAS)
5118331030
€ 4.00
18
5119545030
ref: 18
PIECE,OIL LOCK
5119545030
€ 16.00
19
5111034210
ref: 19
INNER TUBE
€ 180.50
20
5112134210
ref: 20
PISTON
5112134210
€ 20.50
21
5114634210
ref: 21
CYLINDER
€ 0.00
22
5117734210
ref: 22
SPRING,FORK REBOUND
€ 7.00
23
5119634210
ref: 23
RING,PISTON
5119634210
€ 6.50
24
5117134210
ref: 24
SPRING
€ 0.00
25
5111734210
ref: 25
O RING
5111734210
€ 5.00
26
5117534210
ref: 26
SEAT,FRONT FORK SPRING
5117534210
€ 12.50
27
5116934210
ref: 27
STOPPER RING,FORK SPRING
5116934210
€ 3.00
28
5118934210
ref: 28
CAP,FRONT FORK
5118934210
€ 5.00
