AIR CLEANER
GSX750E 1985 (F) (E01 E02 E21 E24)

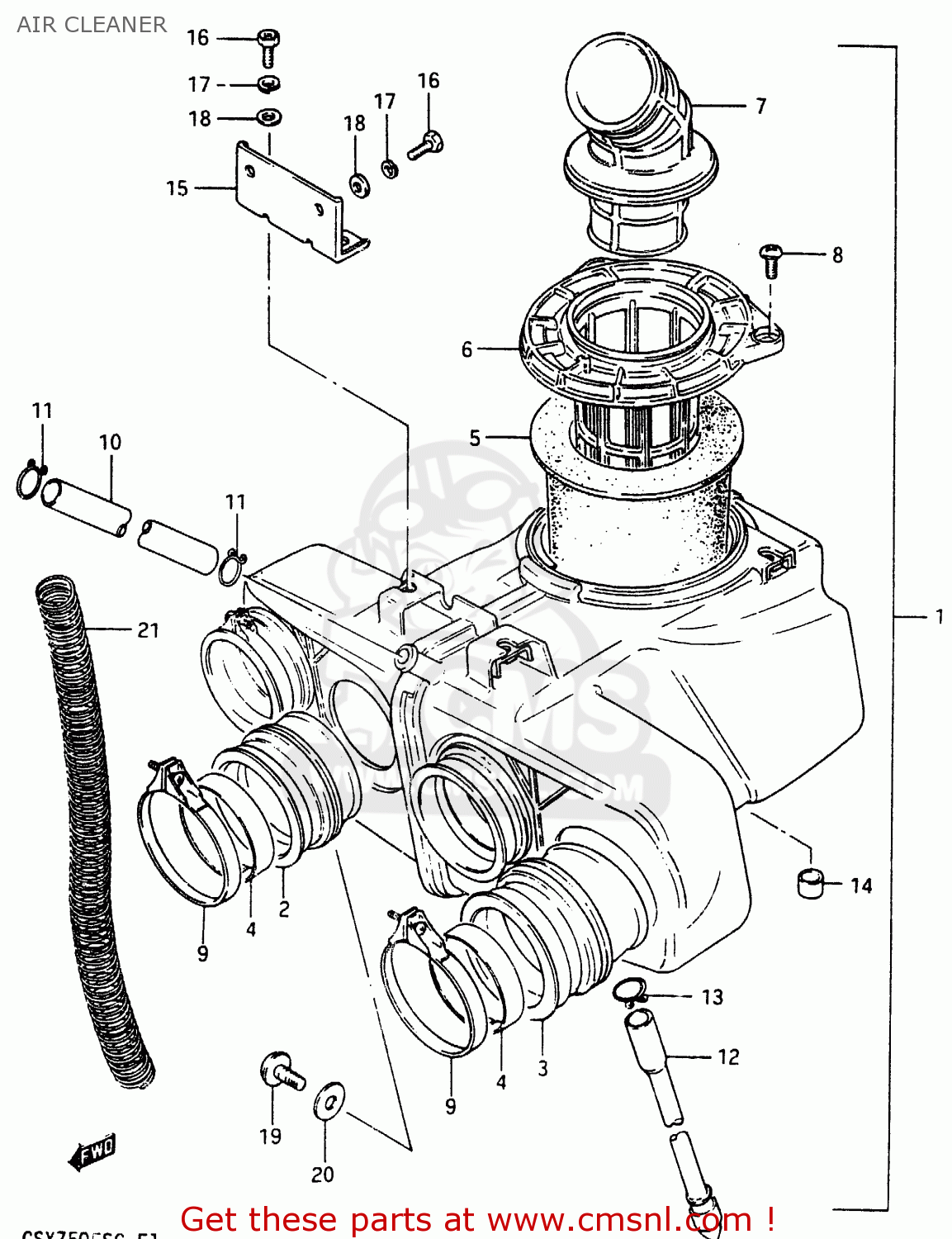

Air cleaner diagram GSX750E 1985 (F) (E01 E02 E21 E24)
AIR CLEANER GSX750E 1985 (F) (E01 E02 E21 E24)
×
prices are in EUR
ref
part #
description
quantity
1
1370031310
ref: 1
CLEANER ASSEMBLY,AIR
€ 205.50
2
1388131300
ref: 2
TUBE,AIR CLEANER OUTLET
€ 22.50
3
1388231300
ref: 3
TUBE,AIR CLEANER OUTLET
€ 15.00
4
1388547030
ref: 4
RING,CARBURETOR AIR INLET HOSE
€ 8.00
5
1378031310
ref: 5
FILTER,AIR CLEANER
€ 38.00
6
1379131300
ref: 6
HOLDER,AIR FILTER
€ 10.50
7
1389131300
ref: 7
TUBE,AIR CLEANER INLET
€ 25.50
8
0214205128
ref: 8
SCREW
€ 1.50
9
0940260207
ref: 9
CLAMP
€ 4.50
10
0934311005
ref: 10
HOSE
€ 30.00
11
0940114301
ref: 11
CLIP
€ 2.00
12
1387011293
ref: 12
DRAIN TUBE
€ 13.50
13
1382400A00
ref: 13
CLIP
€ 2.50
14
1378731300
ref: 14
FILTER,DRAIN
€ 0.00
15
1376131310
ref: 15
BRACKET,AIR CLEANER
€ 14.00
16
0912806011
ref: 16
SCREW(6X12)
€ 3.00
17
0832121068
ref: 17
LOCK WASHER
€ 2.50
18
0832221068
ref: 18
WASHER
€ 2.00
19
0214206167
ref: 19
SCREW
€ 2.00
20
0916006006
ref: 20
WASHER
€ 2.00
21
0944010009
ref: 21
SPRING
€ 10.50
