Buy Suzuki GSX Parts Online


HANDLEBAR (GSX750ESF/EFF/ESG)

GSX750E 1985 (F) (E01 E02 E21 E24)

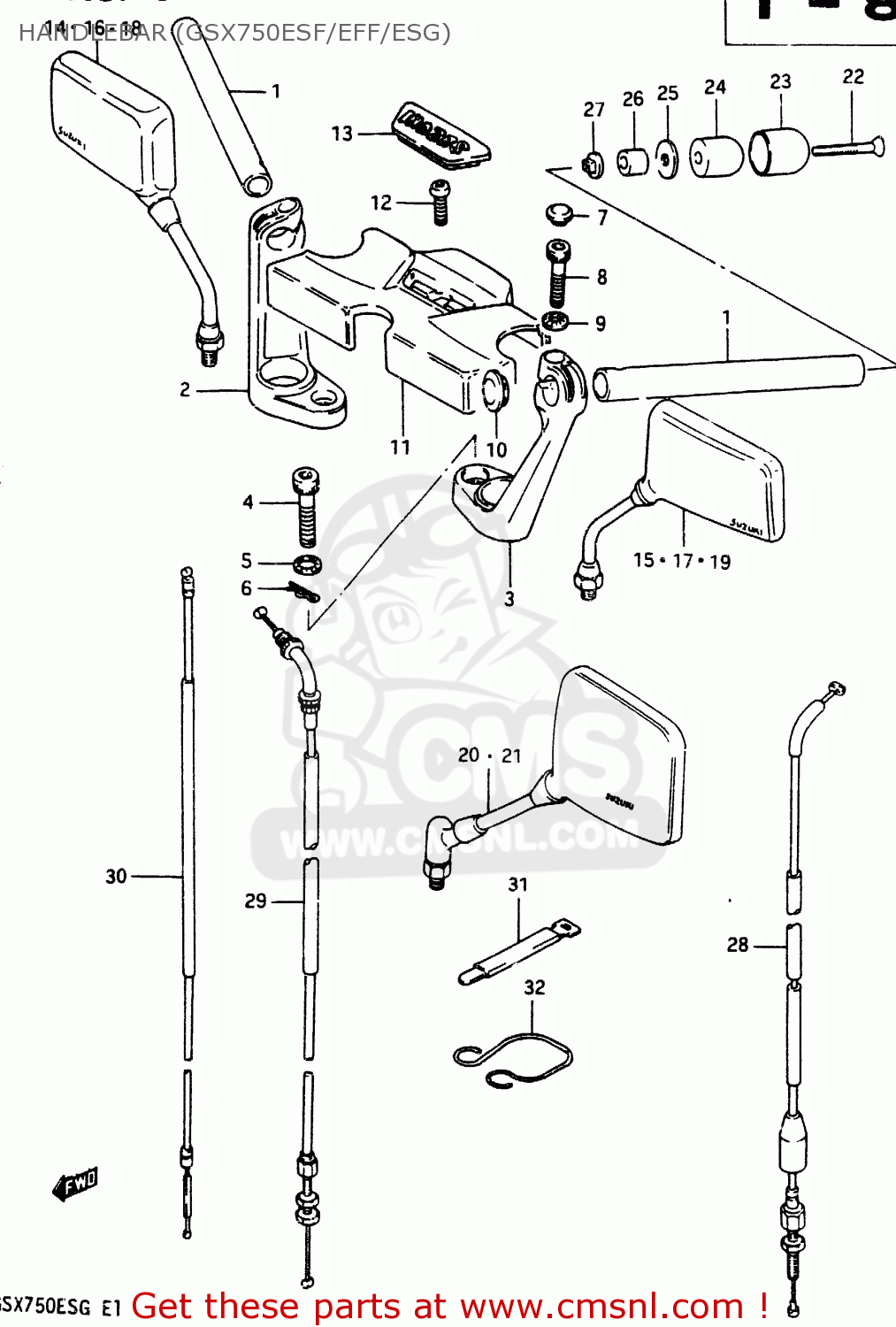

Handlebar (gsx750esf/eff/esg) diagram GSX750E 1985 (F) (E01 E02 E21 E24)

HANDLEBAR (GSX750ESF/EFF/ESG) GSX750E 1985 (F) (E01 E02 E21 E24)
HANDLEBAR (GSX750ESF/EFF/ESG) GSX750E 1985 (F) (E01 E02 E21 E24)
HANDLEBAR (GSX750ESF/EFF/ESG) GSX750E 1985 (F) (E01 E02 E21 E24)
prices are in EUR
ref
part #
description
quantity
1
5611131330
ref: 1
HANDLEBAR
5611131330
€ 20.00
2
5621131301
ref: 2
FLAT TYPE
HOLDER,HANDLEBAR,RIGHT
5621131301
€ 163.50
3
5622131301
ref: 3
FLAT TYPE
HOLDER,HANDLEBAR,LEFT
€ 163.50
4
0910610024
ref: 4
BOLT 10X50
€ 3.00
5
0916410005
ref: 5
WASHER
0916410005
€ 6.50
6
0938510005
ref: 6
CLIP
0938510005
€ 1.50
7
0925006004
ref: 7
CAP(OD:14.5)
0925006004
€ 1.50
8
0711008355
ref: 8
BOLT 8X35
0711008355
€ 4.00
9
0916408015
ref: 9
WASHER
0916408015
€ 3.00
10
5721543401
ref: 10
CAP,GRIP END
5721543401
€ 4.00
11
5617031310
ref: 11
PAD,HANDLE
5617031310
€ 27.50
12
0211206167
ref: 12
SCREW
0211206167
€ 2.50
13
5617400A00
ref: 13
CAP,HANDLE PAD
5617400A00
€ 8.00
14
5650031301
ref: 14
MIRROR ASSEMBLY,RIGHT
€ 48.50
15
5660031301
ref: 15
MIRROR ASSEMBLY,REAR VIEW
€ 47.00
16
5650031311
ref: 16
E22,E25
MIRROR, REAR VIEW RH
€ 48.50
17
5660031311
ref: 17
E22,E25
MIRROR, REAR VIEW LH
€ 47.00
18
5650031321
ref: 18
E16,E18,E24
MIRROR, REAR VIEW RH
€ 43.50
19
5660031321
ref: 19
E16,E18,E24
MIRROR, REAR VIEW LH
5660031321
€ 43.50
20
5650010020
ref: 20
E2,E4,E21
MIRROR ASSEMBLY,REAR VIEW
5650010020
€ 90.00
21
5660010020
ref: 21
E2,E4,E21
MIRROR ASSEMBLY,REAR VIEW
5660010020
€ 92.00
22
0213206655
ref: 22
SCREW 6X65
0213206655
€ 2.50
23
5627431300
ref: 23
CAP,BALANCER
5627431300
€ 223.50
24
5627149400
ref: 24
BALANCER,HANDLE
5627149400
€ 19.50
25
5627534400
ref: 25
SPACER,BALANCER
5627534400
€ 2.50
26
5627204700
ref: 26
EXPANDER,BALANCER
5627204700
€ 5.00
27
0915906024
ref: 27
NUT
0915906024
€ 2.00
28
5820031300
ref: 28
FLAT TYPE
CABLE ASSY,CLUTCH
5820031300
€ 22.50
29
5830031301
ref: 29
FLAT TYPE
CABLE ASSY,THROTTLE
5830031301
€ 26.50
30
5841031300
ref: 30
FLAT TYPE
CABLE COMP,STARTER
5841031300
€ 14.00
31
0940718301
ref: 31
CLAMP
0940718301
€ 6.00
32
5862131310
ref: 32
GUIDE,CABLE/HARNESS
€ 0.00
