CRANKSHAFT
GSX750E 1985 (F) (E01 E02 E21 E24)

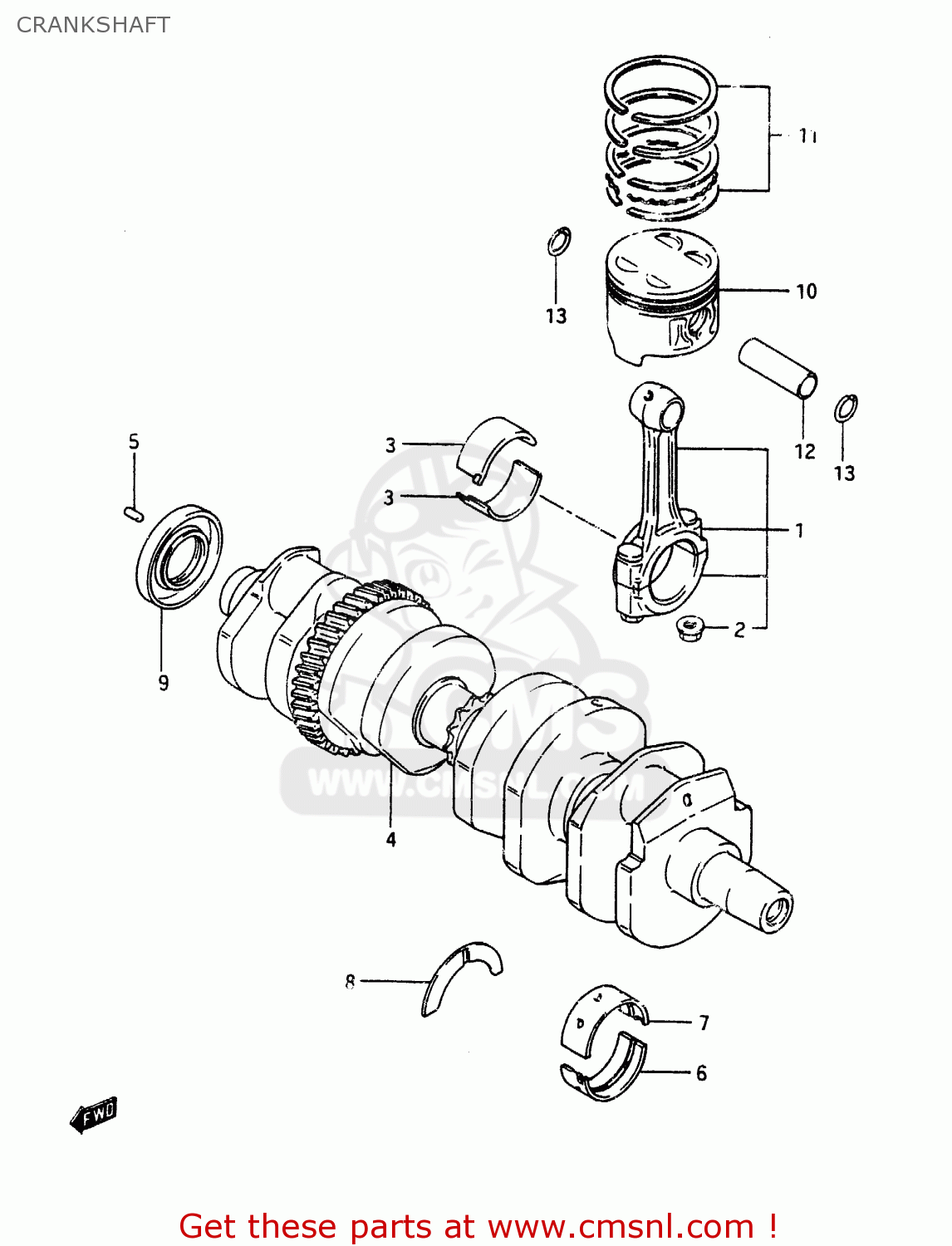

Crankshaft diagram GSX750E 1985 (F) (E01 E02 E21 E24)
CRANKSHAFT GSX750E 1985 (F) (E01 E02 E21 E24)
×
prices are in EUR
ref
part #
description
quantity
1
1216031300
ref: 1
ROD ASSEMBLY,CONNECTING
€ 83.50
2
0915908033
ref: 2
NUT
€ 2.50
3
12164313100A0
ref: 3
METAL,CRANK PIN
€ 11.50
3
12164313100B0
ref: 3
METAL,CRANK PIN
€ 13.00
3
12164313100C0
ref: 3
METAL,CRANK PIN
€ 12.50
3
12164313100D0
ref: 3
METAL CRANK PIN
€ 10.50
4
1222031301
ref: 4
CRANKSHAFT ASSEMBLY
€ 817.00
5
0422104089
ref: 5
PIN
€ 1.50
6
12229093010A0
ref: 6
METAL,CRANKSHAFT (GREEN)
€ 10.00
6
12229093010B0
ref: 6
METAL,CRANKSHAFT (BLACK)
€ 10.00
6
12229093010C0
ref: 6
METAL,CRANKSHAFT (BROWN)
€ 10.00
6
12229093010D0
ref: 6
METAL,CRANKSHAFT (YELLOW)
€ 9.00
7
12229093110A0
ref: 7
METAL CRANKSHAFT (GREEN)
€ 12.00
7
12229093110B0
ref: 7
METAL CRANKSHAFT (BLACK)
€ 12.50
7
12229093110C0
ref: 7
METAL CRANKSHAFT (BROWN)
€ 12.00
7
12229093110D0
ref: 7
METAL CRANKSHAFT (YELLOW)
€ 11.50
8
1222831301
ref: 8
LH
PLATE,CRANK THRUST
€ 6.00
8
1222831302
ref: 8
LH
PLATE,CRANK THRUST
€ 8.00
8
1222831303
ref: 8
LH
PLATE,CRANK THRUST
€ 8.50
8
1222831304
ref: 8
LH
PLATE,CRANK THRUST
€ 9.00
8
1222831305
ref: 8
LH & RH
PLATE,CRANK THRUST
€ 7.00
8
1222831306
ref: 8
LH
PLATE,CRANK THRUST
€ 8.00
8
1222831307
ref: 8
LH
PLATE,CRANK THRUST
€ 7.00
8
1222831308
ref: 8
LH
PLATE,CRANK THRUST
€ 7.50
9
0928330048
ref: 9
SEAL,OIL(30X60X8)
€ 15.00
10
1211131306
ref: 10
PISTON (67.00MM)
€ 81.50
10
1211131306050
ref: 10
OPT
PISTON
€ 81.50
10
1211131306100
ref: 10
OPT
PISTON
€ 80.00
11
1214031311
ref: 11
RING SET,PISTON
€ 62.50
11
1214031311050
ref: 11
OPT
RING SET,PISTON
€ 99.50
11
1214031311100
ref: 11
OPT
RING SET,PISTON
€ 89.00
12
1215131302
ref: 12
PIN,PISTON
€ 13.00
13
0938118002A
ref: 13
CIRCLIP,PISTON PIN
€ 1.50
