STARTING MOTOR

GSX750E 1985 (F) (E01 E02 E21 E24)

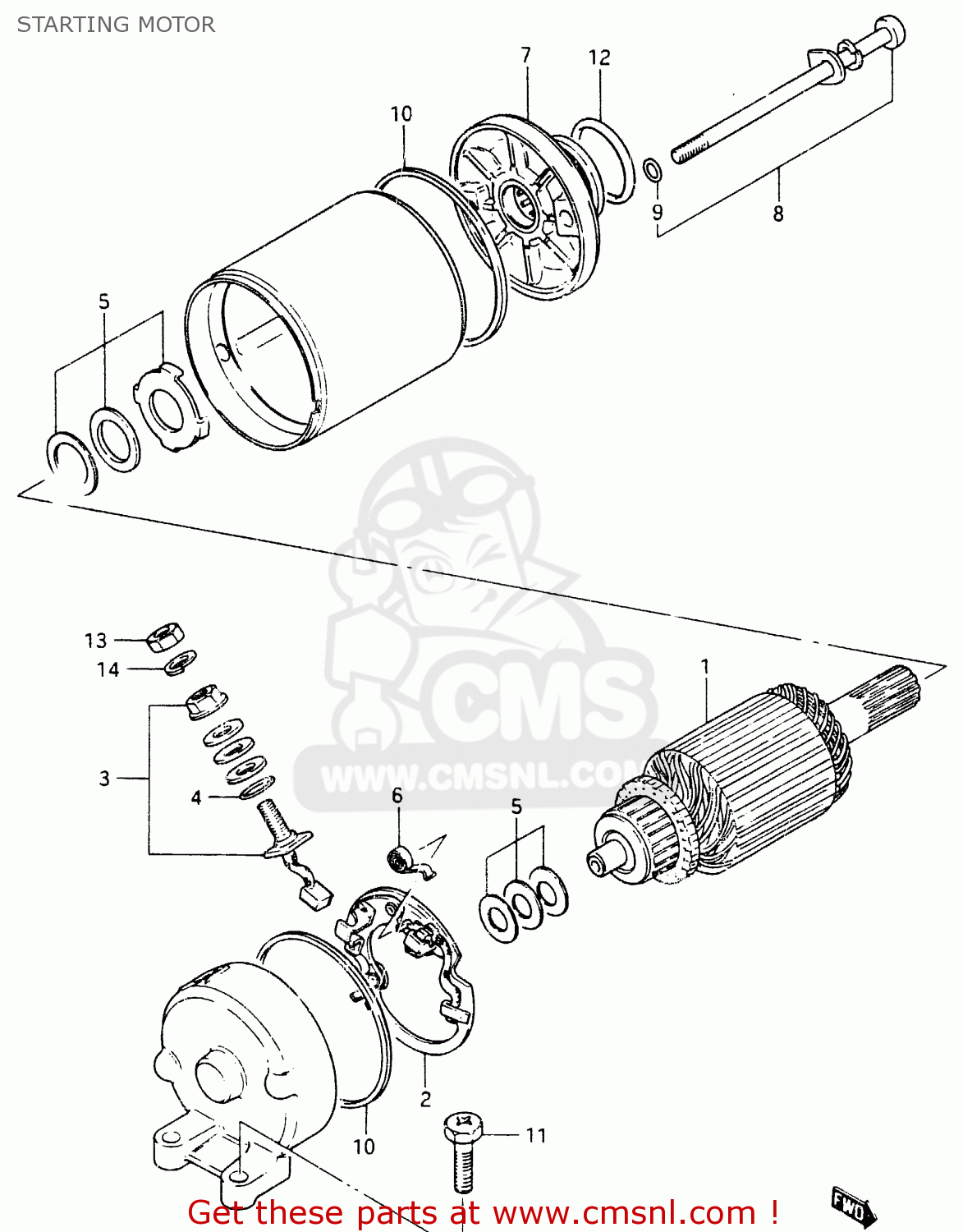

Starting motor diagram GSX750E 1985 (F) (E01 E02 E21 E24)

STARTING MOTOR GSX750E 1985 (F) (E01 E02 E21 E24)

STARTING MOTOR GSX750E 1985 (F) (E01 E02 E21 E24)

prices are in EUR

ref

part #

description

quantity

0

3110031300
ref: 0

MOTOR ASSEMBLY,STARTING

€ 590.00

1

3131131300
ref: 1

ARMATURE

€ 138.50

2

3113231300
ref: 2

HOLDER SET,BRUSH(-)

€ 55.50

3

3113031300
ref: 3

TERMINAL SET,BRUSH,PLUS

€ 36.00

4

3114349040
ref: 4

O RING

€ 3.00

5

3117031300
ref: 5

SHIM SET,STARTING MOTOR

€ 10.50

6

3113531300
ref: 6

SPRING,BRUSH

€ 4.00

7

3115031300
ref: 7

BRACKET SET,STARTING MOTOR

€ 86.50

8

3128031300
ref: 8

BOLT SET,STARTING MOTOR

€ 0.00

9

3114349040
ref: 9

O RING

€ 3.00

10

3126431300
ref: 10

O RING

€ 7.50

11

0912806024
ref: 11

SCREW (6X25)

€ 2.50

12

0928024003
ref: 12

O RING(D:3,ID:24.5)

€ 2.00

13

0831011066
ref: 13

NUT

€ 2.00

14

0832121066
ref: 14

WASHER,LOCK

€ 2.00
