Buy Suzuki GSX Parts Online


REAR FENDER

GSX750E 1985 (F) (E01 E02 E21 E24)

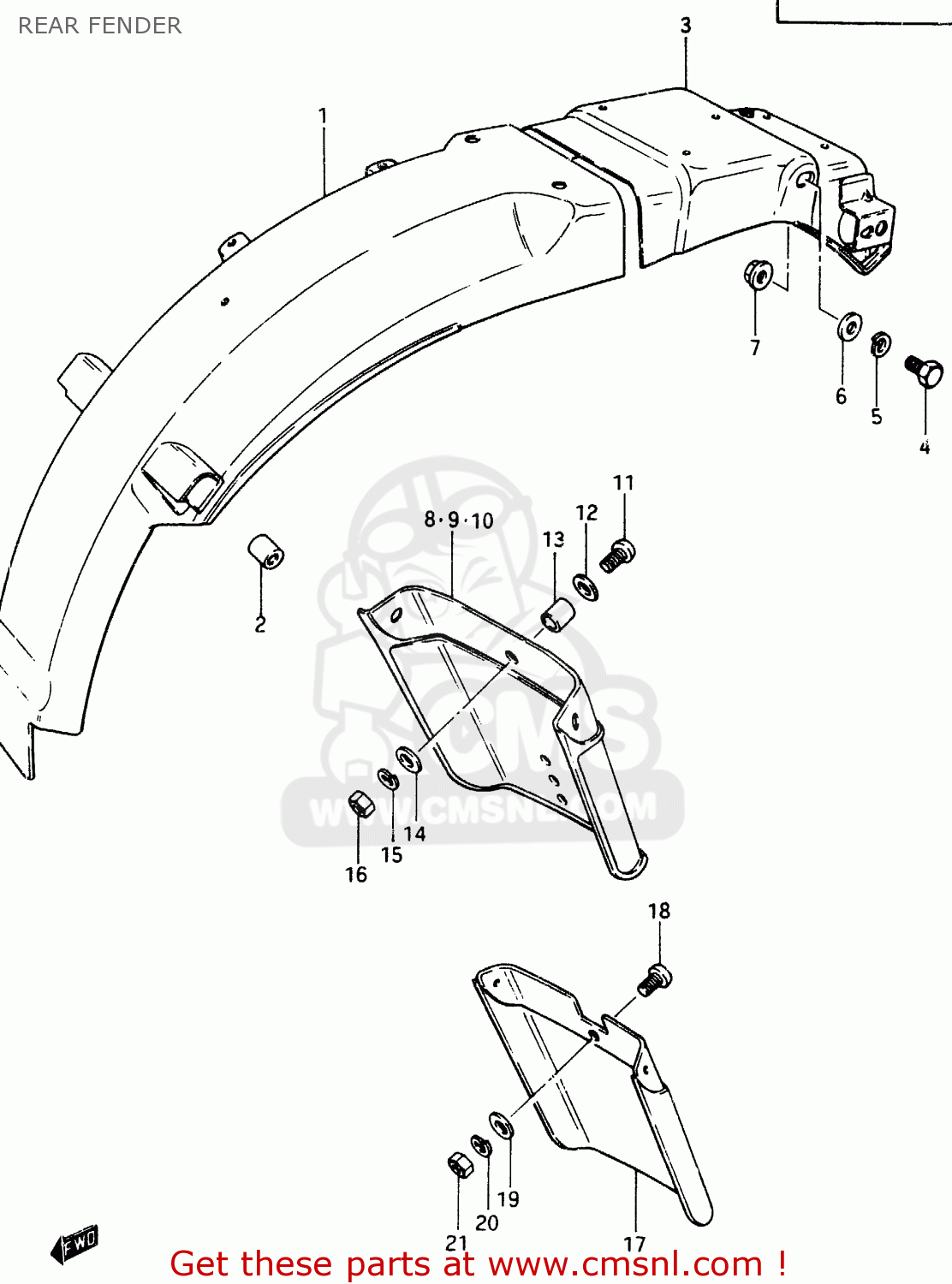

Rear fender diagram GSX750E 1985 (F) (E01 E02 E21 E24)

REAR FENDER GSX750E 1985 (F) (E01 E02 E21 E24)
REAR FENDER GSX750E 1985 (F) (E01 E02 E21 E24)
REAR FENDER GSX750E 1985 (F) (E01 E02 E21 E24)
prices are in EUR
ref
part #
description
quantity
1
6311231300
ref: 1
BODY,REAR FENDER,FRONT
€ 49.00
2
0932905003
ref: 2
CUSHION
0932905003
€ 4.50
3
6312031300
ref: 3
REINFORCEMENT,RR FENDER
6312031300
€ 44.50
4
0110708206
ref: 4
BOLT,8X1.25X2
€ 2.00
5
0832121086
ref: 5
WASHER,LOCK,8.
0832121086
€ 2.50
6
0832211086
ref: 6
WASHER 8MM
0832211086
€ 1.50
7
0831616086
ref: 7
NUT, WHEEL SET
€ 3.00
8
6331131300
ref: 8
E16,E26,MODEL G E17
EXTENSION, REAR
6331131300
€ 41.00
9
6331131310
ref: 9
E25,MODEL F E17
EXTENSION,RR F
€ 19.50
9
6331131330
ref: 9
E22
EXTENSION, REAR
€ 19.50
10
6331131320
ref: 10
E15,E18
EXTENSION, REAR
6331131320
€ 31.50
11
0214206165
ref: 11
SCREW
0214206165
€ 2.50
12
0832221064
ref: 12
WASHER
0832221064
€ 2.00
13
0918006001
ref: 13
SPACER(6.2X8.3X5.7)
0918006001
€ 2.00
14
0916006057
ref: 14
WASHER
€ 2.00
15
0832121067
ref: 15
WASHER,LOCK
0832121067
€ 2.50
16
0831022067
ref: 16
NUT 6MM
0831022067
€ 2.50
17
6341131300
ref: 17
E15,E18
MUD GUARD
€ 0.00
18
0214206165
ref: 18
E15,E18
SCREW
0214206165
€ 2.50
19
0916006057
ref: 19
E15,E18
WASHER
€ 2.00
20
0832121067
ref: 20
E15,E18
WASHER,LOCK
0832121067
€ 2.50
21
0831022066
ref: 21
E15,E18
NUT
€ 2.00
