Buy Suzuki GSX Parts Online


FRAME COVER (GSX750ESF/ESG)

GSX750E 1985 (F) (E01 E02 E21 E24)

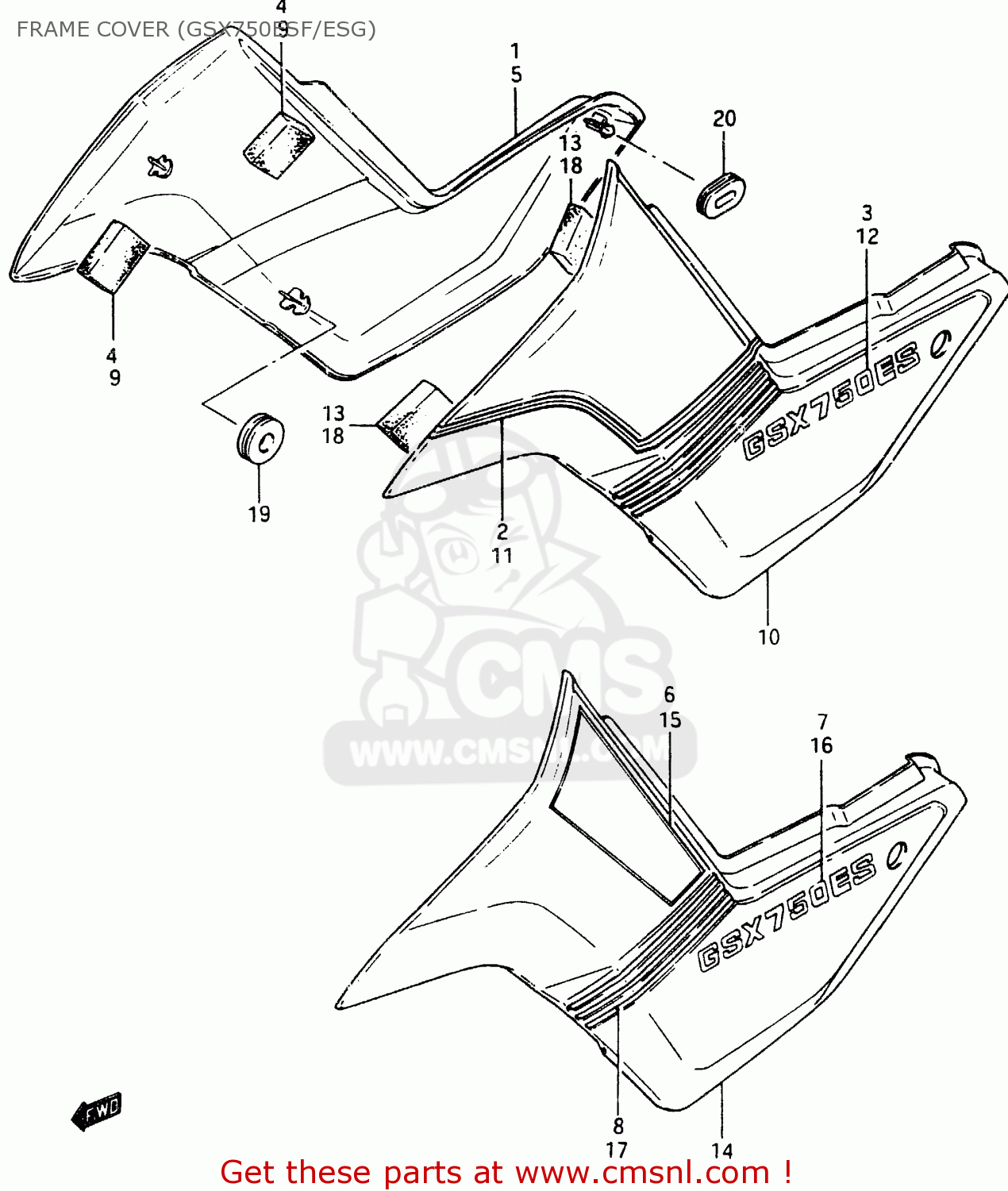

Frame cover (gsx750esf/esg) diagram GSX750E 1985 (F) (E01 E02 E21 E24)

FRAME COVER (GSX750ESF/ESG) GSX750E 1985 (F) (E01 E02 E21 E24)
FRAME COVER (GSX750ESF/ESG) GSX750E 1985 (F) (E01 E02 E21 E24)
FRAME COVER (GSX750ESF/ESG) GSX750E 1985 (F) (E01 E02 E21 E24)
prices are in EUR
ref
part #
description
quantity
1
47610313407JH
ref: 1
MODEL F
COVER, FRAME RH
€ 0.00
1
47610313407JJ
ref: 1
MODEL F
COVER, FRAME RH
€ 66.00
2
68130313607JF
ref: 2
MODEL F,FOR 7JH
TAPE SET, FRAME COVER RH
€ 0.00
2
68130313607JG
ref: 2
MODEL F,FOR 7JJ
TAPE SET, FRAME COVER RH
€ 0.00
3
681313139069L
ref: 3
MODEL F
EMBLEM
€ 0.00
4
4556244410
ref: 4
MODEL F
CUSHION
€ 2.50
5
47610313508HY
ref: 5
MODEL G
COVER, FRAME RH
€ 38.00
5
47610313508HZ
ref: 5
MODEL G
COVER,FRAME RH
€ 38.00
6
68130313908JK
ref: 6
MODEL G,FOR 8HY
TAPE SET, FRAZME COVER RH
€ 0.00
6
68130313908JL
ref: 6
MODEL G,FOR 8HZ
TAPE SET, FRAME COVER RH
€ 9.50
7
68131314007JS
ref: 7
MODEL G,FOR 8HY
EMBLEM
€ 0.00
7
68131314008HW
ref: 7
MODEL G,FOR 8HZ
EMBLEM
€ 11.50
8
6813431300742
ref: 8
MODEL G
LABEL, DENT RH (SILVER)
€ 3.00
9
4556244410
ref: 9
MODEL G
CUSHION
€ 2.50
10
47710313407JH
ref: 10
MODEL F
COVER, FRAME LH
€ 0.00
10
47710313407JJ
ref: 10
MODEL F
COVER, FRAME LH
€ 75.50
11
68140313607JF
ref: 11
MODEL F,FOR 7JH
TAPE SET, FRAME COVER LH
€ 0.00
11
68140313607JG
ref: 11
MODEL F,FOR 7JJ
TAPE SET, FRAME COVER LH
€ 0.00
12
681313139069L
ref: 12
MODEL F
EMBLEM
€ 0.00
13
4556244410
ref: 13
MODEL F
CUSHION
€ 2.50
14
47710313508HY
ref: 14
MODEL G
COVER, FRAME LH
€ 52.00
14
47710313508HZ
ref: 14
MODEL G
COVER,FRAME LH
€ 52.00
15
68140313908JK
ref: 15
MODEL G,FOR 8HY
TAPE SET, FRAME COVER LH
€ 0.00
15
68140313908JL
ref: 15
MODEL G,FOR 8HZ
TAPE SET, FRAME COVER LH
€ 9.00
16
68131314007JS
ref: 16
MODEL G,FOR 8HY
EMBLEM
€ 0.00
16
68131314008HW
ref: 16
MODEL G,FOR 8HZ
EMBLEM
€ 11.50
17
6814431300742
ref: 17
MODEL G
LABEL, DENT LH (SILVER)
€ 2.50
18
4556244410
ref: 18
MODEL G
CUSHION
€ 2.50
19
0932008018
ref: 19
CUSHION
0932008018
€ 4.00
20
0932908003
ref: 20
CUSHION
0932908003
€ 3.50
