Buy Suzuki GSX Parts Online


CAM SHAFT - VALVE

GSX750E 1985 (F) (E01 E02 E21 E24)

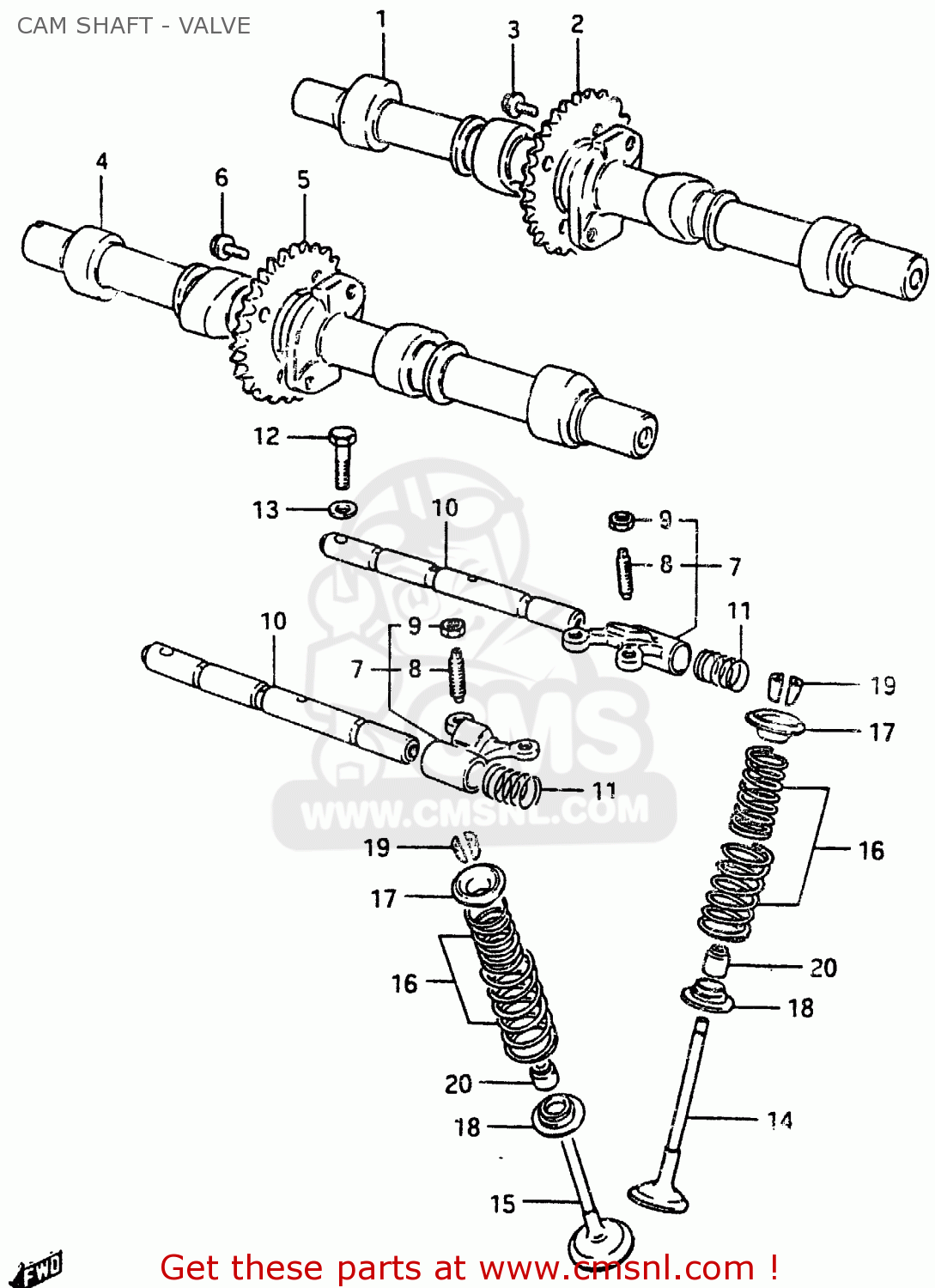

Cam shaft - valve diagram GSX750E 1985 (F) (E01 E02 E21 E24)

CAM SHAFT - VALVE GSX750E 1985 (F) (E01 E02 E21 E24)
CAM SHAFT - VALVE GSX750E 1985 (F) (E01 E02 E21 E24)
CAM SHAFT - VALVE GSX750E 1985 (F) (E01 E02 E21 E24)
prices are in EUR
ref
part #
description
quantity
1
1271106A00
ref: 1
CAMSHAFT,INTAKE
€ 199.50
2
1274134201
ref: 2
SPROCKET,INTAKE CAMSHAFT
1274134201
€ 35.50
3
0910307001
ref: 3
BOLT(7X11)
0910307001
€ 2.00
4
1272106A00
ref: 4
CAMSHAFT,EXHAUST
1272106A00
€ 190.00
5
1275131300
ref: 5
SPROCKET,EXHAUST CAMSHAFT
€ 37.50
6
0910307001
ref: 6
BOLT(7X11)
0910307001
€ 2.00
7
1284045410
ref: 7
ARM,VALVE ROCKER
€ 78.50
8
1284249210
ref: 8
SCREW,TAPPET ADJUSTING
1284249210
€ 5.50
9
1284349210
ref: 9
NUT,ADJUSTING
1284349210
€ 3.00
10
1286031300
ref: 10
SHAFT,VALVE ROCKER
1286031300
€ 33.50
11
0944013014
ref: 11
SPRING
0944013014
€ 2.50
12
0110706306
ref: 12
BOLT
0110706306
€ 2.50
13
0832221066
ref: 13
WASHER, LOWER
0832221066
€ 2.00
14
1291131300
ref: 14
VALVE,INTAKE
1291131300
€ 20.00
15
1291231301
ref: 15
VALVE,EXHAUST
1291231301
€ 36.00
16
1292049210
ref: 16
SPRING SET,VALVE
1292049210
€ 16.00
17
1293149200
ref: 17
RETAINER,VALVE SPRING
1293149200
€ 5.50
18
1293349200
ref: 18
SEAT,VALVE SPRING
1293349200
€ 4.50
19
1293249200
ref: 19
COTTER VALVE
1293249200
€ 2.50
20
0928905003
ref: 20
OIL SEAL
0928905003
€ 6.50
