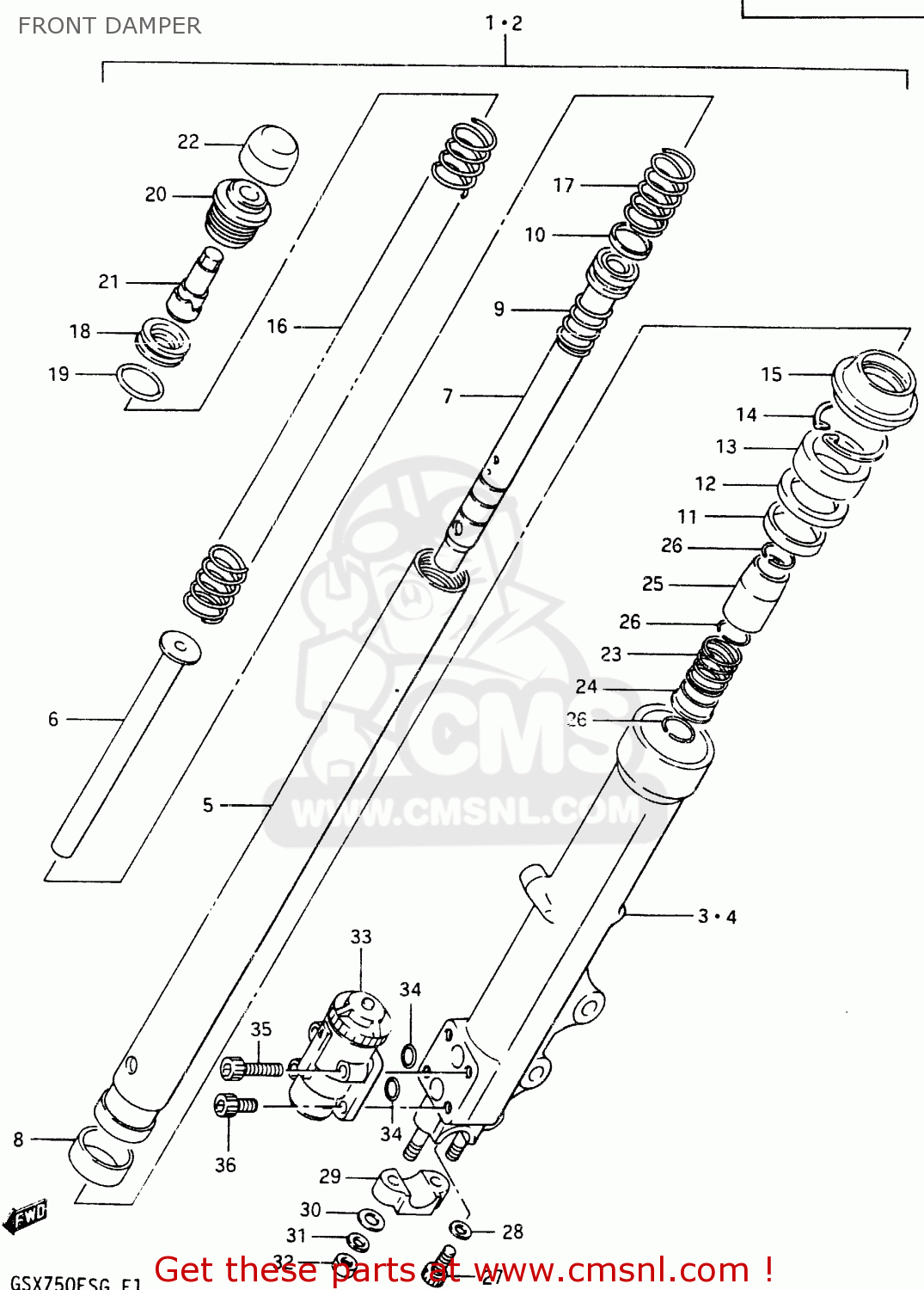

FRONT DAMPER

ref

part #

description

quantity

1

5110331380
ref: 1

DAMPER ASSY, RH

€ 0.00

2

5110431380
ref: 2

DAMPER ASSY, LH

€ 632.00

3

511303139015T
ref: 3

TUBE, OUTER RH (BLACK)

€ 238.50

4

511403139015T
ref: 4

TUBE, OUTER LH (BLACK)

€ 238.50

5

5111031380
ref: 5

TUBE, INNER

€ 224.00

6

5111231390
ref: 6

SEAT, INNER TUBE

€ 16.50

7

5114631380
ref: 7

CYLINDER

€ 34.00

8

5112131300
ref: 8

PISTON

€ 18.50

9

5117731390
ref: 9

SPRING REBOUND

€ 0.00

10

5119634210
ref: 10

RING,PISTON

€ 6.50

11

5115231300
ref: 11

BUSHING,GUIDE

€ 22.50

12

5116831390
ref: 12

SPACER,SEAL

€ 5.50

13

5115309310
ref: 13

OIL SEAL,FRONT FORK

€ 15.00

14

5155634320
ref: 14

CIRCLIP,INNTERNAL

€ 7.00

15

5157143530
ref: 15

SEAL,DUST

€ 15.00

16

5117131380
ref: 16

SPRING

€ 28.00

17

5118431380
ref: 17

SPRING, LOWER

€ 0.00

18

5117234300
ref: 18

SEAT,FRONT FORK SPRING

€ 7.50

19

5111734210
ref: 19

O RING

€ 5.00

20

5135134301
ref: 20

CAP,FORK INNER TUBE

€ 33.00

21

5118545451
ref: 21

ADJUSTER,SPRING

€ 16.00

22

5118945450
ref: 22

CAP

€ 7.00

23

5112731390
ref: 23

SPRING, VALVE

€ 3.00

24

5112531390
ref: 24

VALVE, OIL LOCK PIECE

€ 4.00

25

5119531390
ref: 25

PIECE, OIL LOCK

€ 0.00

26

5116901A30
ref: 26

RING,STOPPER

€ 1.50

27

5114748130
ref: 27

BOLT(8X27)

€ 3.50

28

5114831030
ref: 28
MODEL F

GASKET (NAS)

€ 4.00

28

5114836011
ref: 28
MODEL G

GASKET (NAS)

€ 4.00

29

511324404015T
ref: 29

HOLDER,AXLE

€ 38.50

30

0832221085
ref: 30

WASHER

€ 1.50

31

0832121084
ref: 31

WASHER,LOCK,8.

€ 2.50

32

0831011085
ref: 32

NUT

€ 1.50

33

5177031390
ref: 33

P.D.F ASSY

€ 143.50

34

5179931390
ref: 34

O RING,FR FORK

€ 3.50

35

0711006455
ref: 35

BOLT

€ 2.50

36

5179634310
ref: 36

BOLT

€ 2.50

all assemblies
