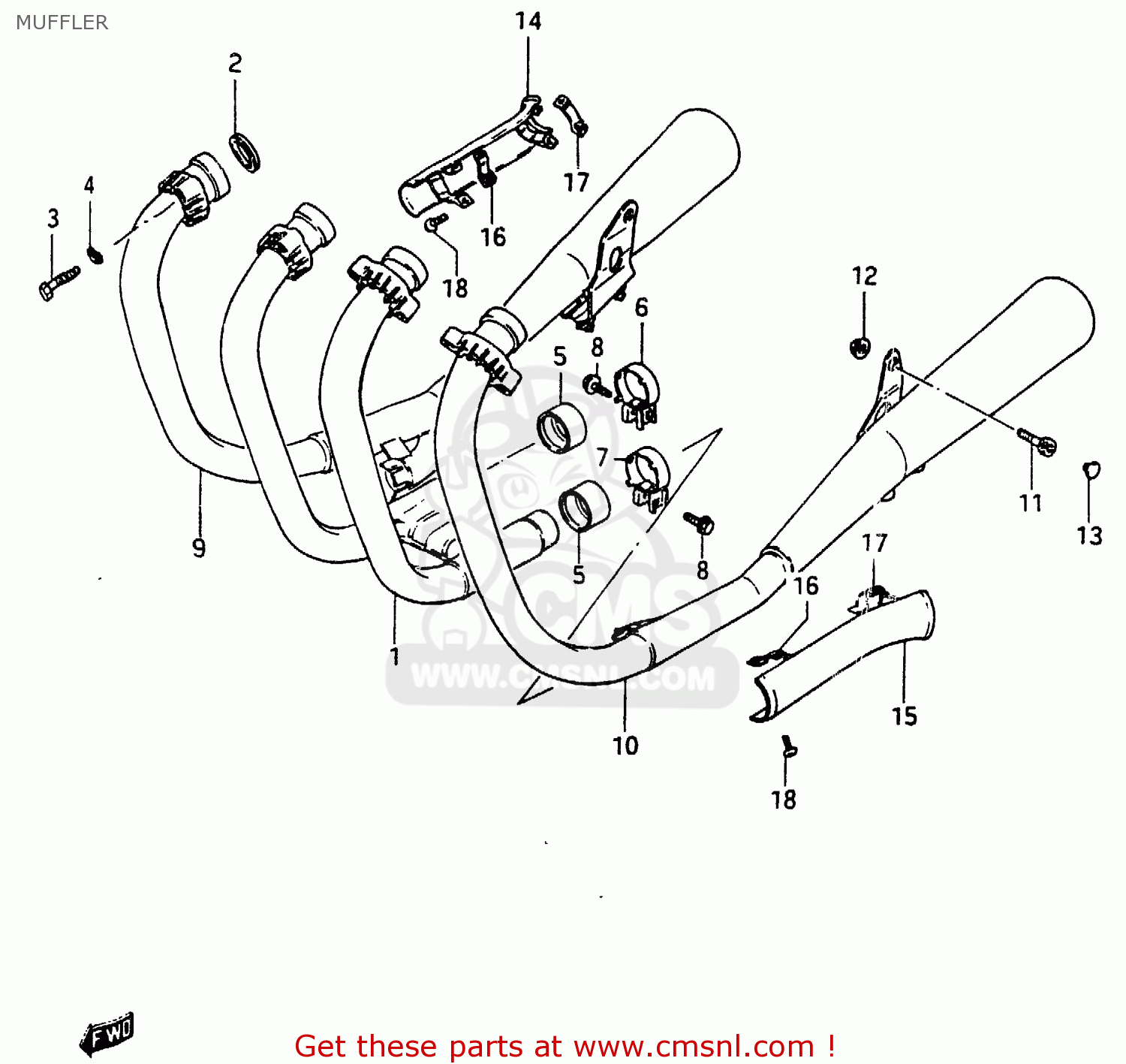

MUFFLER

ref

part #

description

quantity

1

1410031302H01
ref: 1

PIPE,EXHAUST,CENTER

€ 253.00

1

1410031341
ref: 1
E18

PIPE, EXHAUST CENTER

€ 0.00

2

1418105020
ref: 2

GASKET,EXHAUST PIPE (NAS)

€ 6.50

3

0110708405
ref: 3

BOLT 8X40

€ 3.00

4

0832121084
ref: 4

WASHER,LOCK,8.

€ 2.50

5

1477100A01
ref: 5

CONNECTOR,MUFFLER

€ 29.00

6

1445931300
ref: 6

CLAMP,MUFFLER CONNECTOR

€ 17.00

7

1446931300
ref: 7

CLAMP,MUFFLER CONNECTOR

€ 22.00

8

0151708254
ref: 8

BOLT

€ 2.50

9

1430131302
ref: 9

MUFFLER, RH

€ 370.00

9

1430131351
ref: 9
E18

MUFFLER, RH

€ 367.50

9

1430131371
ref: 9
E2,E4,E15,E16,E17,E2

MUFFLER, RH

€ 398.00

10

1430231303
ref: 10

MUFFLER, LH

€ 383.00

10

1430231351
ref: 10
E18

MUFFLER, LH

€ 425.00

10

1430231371
ref: 10
E2,E4,E15,E16,E17,E2

MUFFLER, LH

€ 370.00

11

0711010255
ref: 11

BOLT 10X25

€ 3.50

12

0831626105
ref: 12

NUT

€ 3.50

13

4357534500
ref: 13

CAP

€ 1.50

14

1478031302
ref: 14

COVER,MUFFLER,RIGHT

€ 35.50

15

1479031302
ref: 15

COVER,MUFFLER,LEFT

€ 35.50

16

1478531301
ref: 16

CLAMP,MUFFLER COVER

€ 4.50

17

1478531320
ref: 17

CLAMP,MUFFLER COVER

€ 5.50

18

0211205165
ref: 18

SCREW

€ 2.00
