REAR CALIPERS (E24)

GSX750E 1985 (F) (E01 E02 E21 E24)

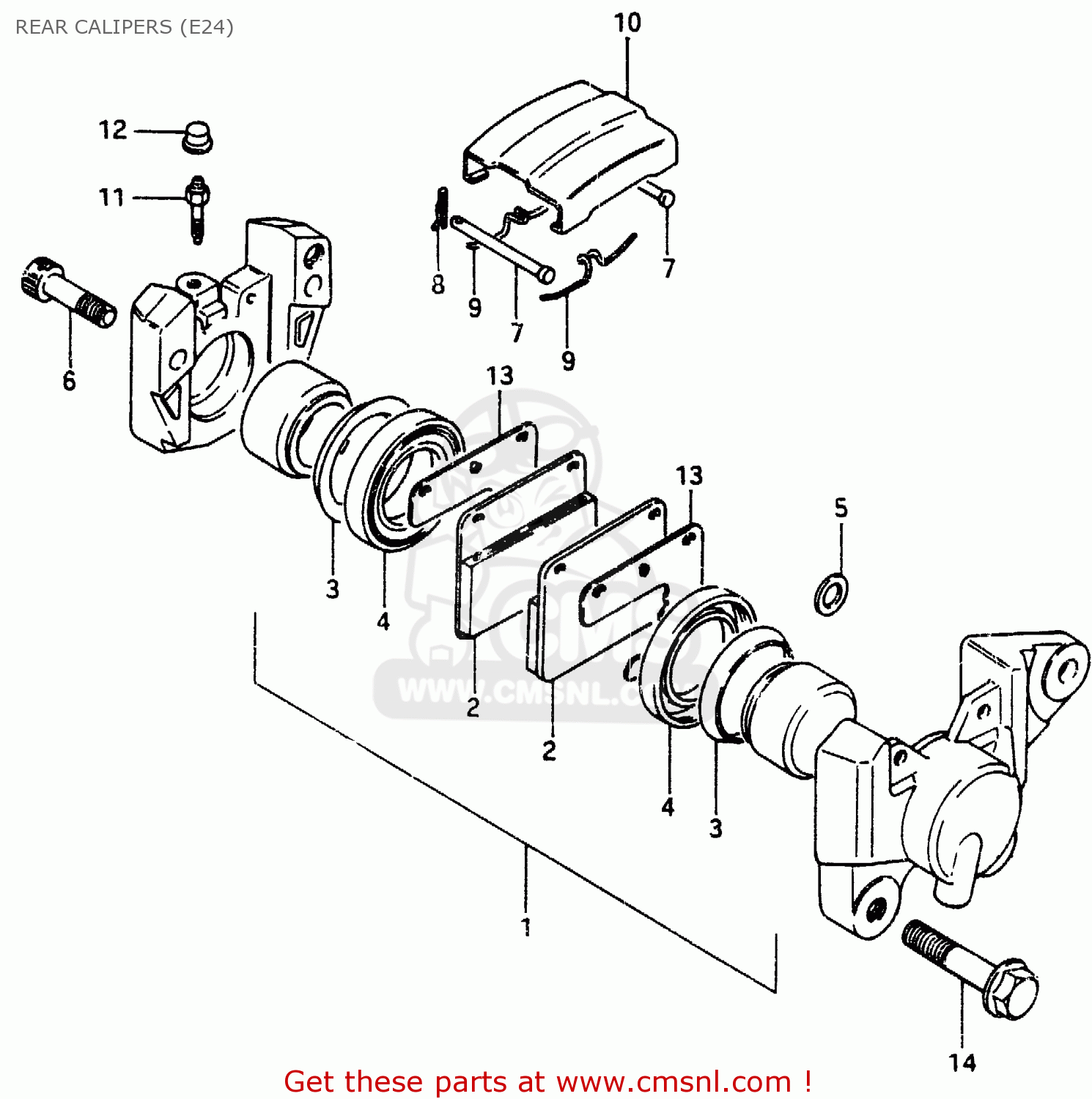

Rear calipers (e24) diagram GSX750E 1985 (F) (E01 E02 E21 E24)

REAR CALIPERS (E24) GSX750E 1985 (F) (E01 E02 E21 E24)

REAR CALIPERS (E24) GSX750E 1985 (F) (E01 E02 E21 E24)

prices are in EUR

ref

part #

description

quantity

0

6910034220
ref: 0

CALIPER ASSEMBLY,REAR

€ 303.00

1

6910034830
ref: 1

PISTON SET

€ 94.00

2

6913034220
ref: 2

PAD,BRAKE (MCA)

€ 51.00

3

5910718410
ref: 3

SEAL,PISTON

€ 17.00

4

6910845000
ref: 4

BOOT,PISTON

€ 10.00

5

6910734200
ref: 5

SEAL,JOINT

€ 12.00

6

6914534200
ref: 6

BOLT,CALIPER HOUSING

€ 9.50

7

6914145000
ref: 7

PIN,PAD

€ 6.50

8

6914245000
ref: 8

CLIP,PAD PIN

€ 4.50

9

6914345001
ref: 9

SPRING

€ 8.00

10

6915145000
ref: 10

COVER,DUST

€ 26.50

11

5912118410
ref: 11

BLEEDER

€ 8.00

12

5912218410
ref: 12

CAP,BREATHER

€ 6.00

13

6915245001
ref: 13

SHIM,RR CALIPER

€ 9.50

14

0151710305
ref: 14

BOLT 10X30

€ 3.00
