WIRING WARNESS
GSX750E 1985 (F) (E01 E02 E21 E24)

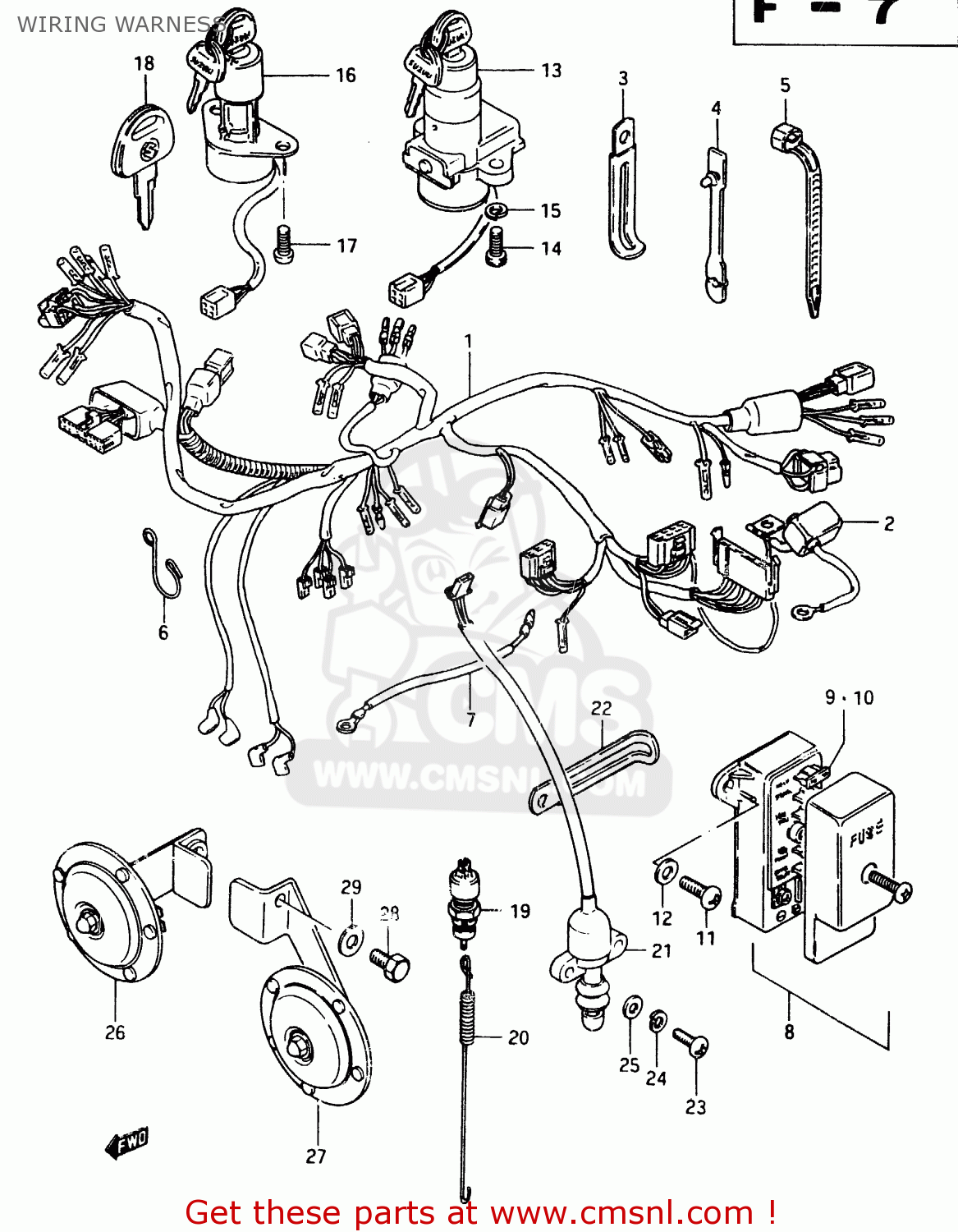

Wiring warness diagram GSX750E 1985 (F) (E01 E02 E21 E24)
WIRING WARNESS GSX750E 1985 (F) (E01 E02 E21 E24)
×
prices are in EUR
ref
part #
description
quantity
1
3661031360
ref: 1
GSX750ESF/EFF/ESG
HARNESS,WIRING
€ 204.50
1
3661031310
ref: 1
GSX750EF
HARNESS,WIRING
€ 162.50
2
3362438310
ref: 2
CAP,BATTERY PLUS TERMINAL
€ 5.00
3
0940406415
ref: 3
CLAMP
€ 3.00
3
0940406419
ref: 3
GSX750EF
CLAMP
€ 2.50
4
0940705403
ref: 4
CLAMP,L:88
€ 1.50
5
0940711401
ref: 5
CLAMP(L:95)
€ 2.50
5
0940714403
ref: 5
CLAMP(L:125)
€ 2.50
5
0940718402
ref: 5
CLAMP(L:165)
€ 2.50
5
0940725401
ref: 5
CLAMP(L:235)
€ 4.00
6
3661944002
ref: 6
GSX750EF
CLIP,WIRING HARNESS
€ 2.50
7
3685131300
ref: 7
WIRE
€ 0.00
8
3674049401
ref: 8
BOX ASSEMBLY,FUSE
€ 69.50
9
0948110101
ref: 9
FUSE(10A)
€ 2.50
10
0948115101
ref: 10
FUSE(15A)
€ 1.50
11
0211206126
ref: 11
SCREW
€ 1.50
12
0832221066
ref: 12
WASHER, LOWER
€ 2.00
13
3710031352
ref: 13
GSX750ESF/EFF/ESG
SWITCH ASSY,IGNITION
€ 114.00
13
3710031301
ref: 13
GSX750EF
LOCK ASSEMBLY,STEERING
€ 108.50
14
3715247011
ref: 14
BOLT
€ 3.00
15
0832121067
ref: 15
WASHER,LOCK
€ 2.50
16
3711031352
ref: 16
E15,E17,E22,E26
IGN SWITCH/STE
€ 121.00
17
0214206125
ref: 17
E15,E17,E22,E26
SCREW 6X12
€ 2.00
18
3714647010
ref: 18
OPT
KEY,BLANK
€ 15.00
19
3774007900
ref: 19
SWITCH ASSEMBLY,STOP LAMP
€ 20.50
20
0944306051
ref: 20
SPRING
€ 6.00
21
3784031302
ref: 21
SWITCH ASSEMBLY,SIDE STAND
€ 58.50
22
0940406415
ref: 22
CLAMP
€ 3.00
23
0211205205
ref: 23
SCREW 5X20
€ 2.50
24
0832121055
ref: 24
WASHER,LOCK
€ 3.00
25
0832221055
ref: 25
WASHER,5MM
€ 2.50
26
3850131330
ref: 26
HORN ASSEMBLY,HIGH PITCH
€ 49.50
26
3850131340
ref: 26
E4,E18,E34,E39,E53
HORN, HIGH PITCHED
€ 49.50
27
3850231330
ref: 27
HORN ASSEMBLY,LOW PITCH
€ 49.50
27
3850231340
ref: 27
E4,E18,E34,E39,E53
HORN, LOW PITCHED
€ 49.50
28
0110708165
ref: 28
BOLT
€ 2.00
29
0832211084
ref: 29
WASHER
€ 1.50
