SIGNAL GENERATOR

GSX750E 1985 (F) (E01 E02 E21 E24)

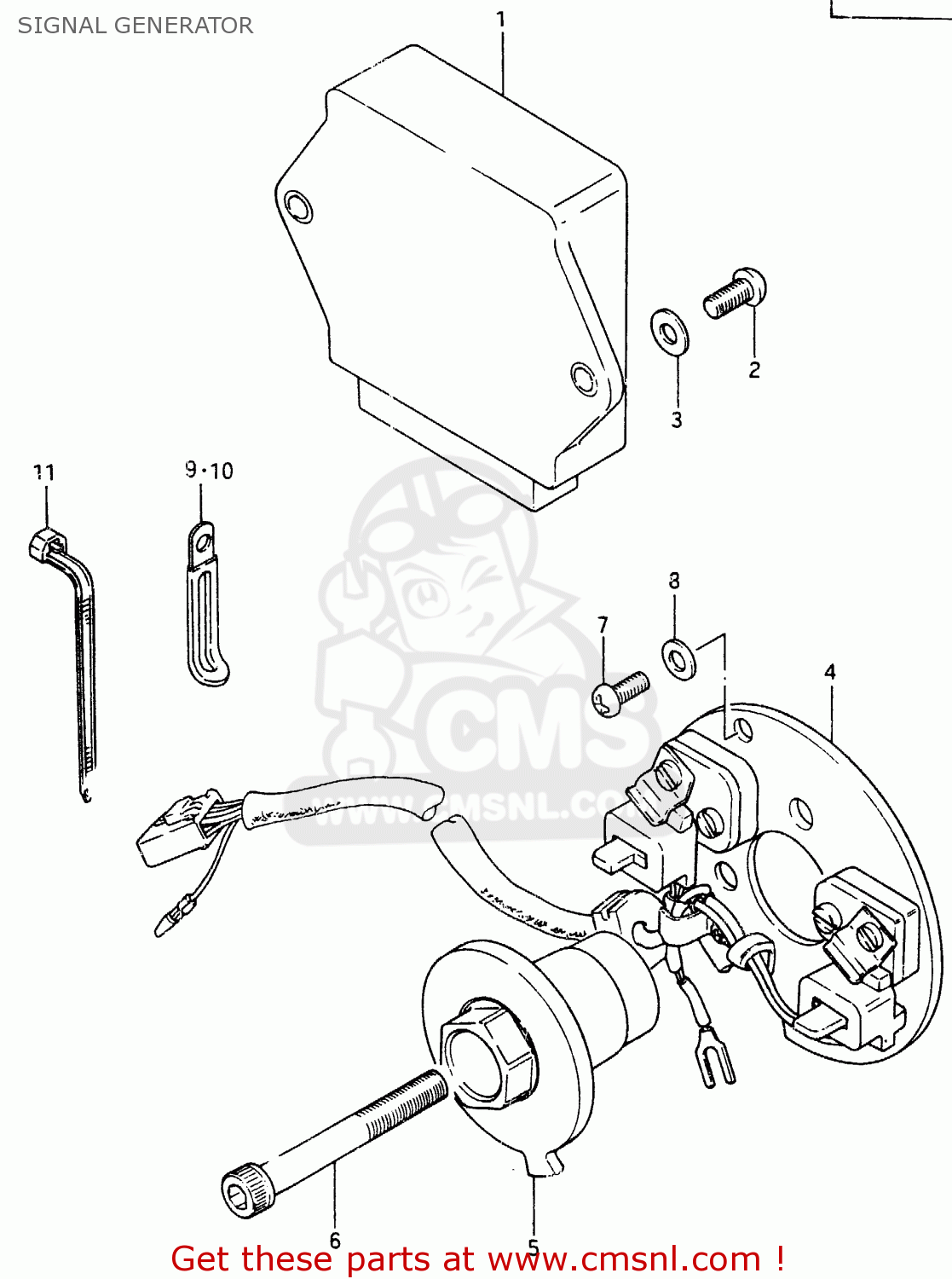

Signal generator diagram GSX750E 1985 (F) (E01 E02 E21 E24)

SIGNAL GENERATOR GSX750E 1985 (F) (E01 E02 E21 E24)

SIGNAL GENERATOR GSX750E 1985 (F) (E01 E02 E21 E24)

prices are in EUR

ref

part #

description

quantity

1

3290031310
ref: 1

IGNITER UNIT ASSEMBLY

€ 565.50

2

0211206126
ref: 2

SCREW

€ 1.50

3

0832221066
ref: 3

WASHER, LOWER

€ 2.00

4

3311031311
ref: 4

STATOR,SIGNAL GENERATOR

€ 262.50

5

3312031310
ref: 5

ROTOR,SIGNAL

€ 155.50

6

0711008456
ref: 6

BOLT

€ 3.00

7

0912505024
ref: 7

SCREW(5X12)

€ 2.00

8

0916005028
ref: 8

WASHER(5.5X10X0.8)

€ 2.00

9

0940406422
ref: 9

CLAMP

€ 2.50

10

0940408402
ref: 10

CLAMP

€ 3.50

11

0940714403
ref: 11

CLAMP(L:125)

€ 2.50
